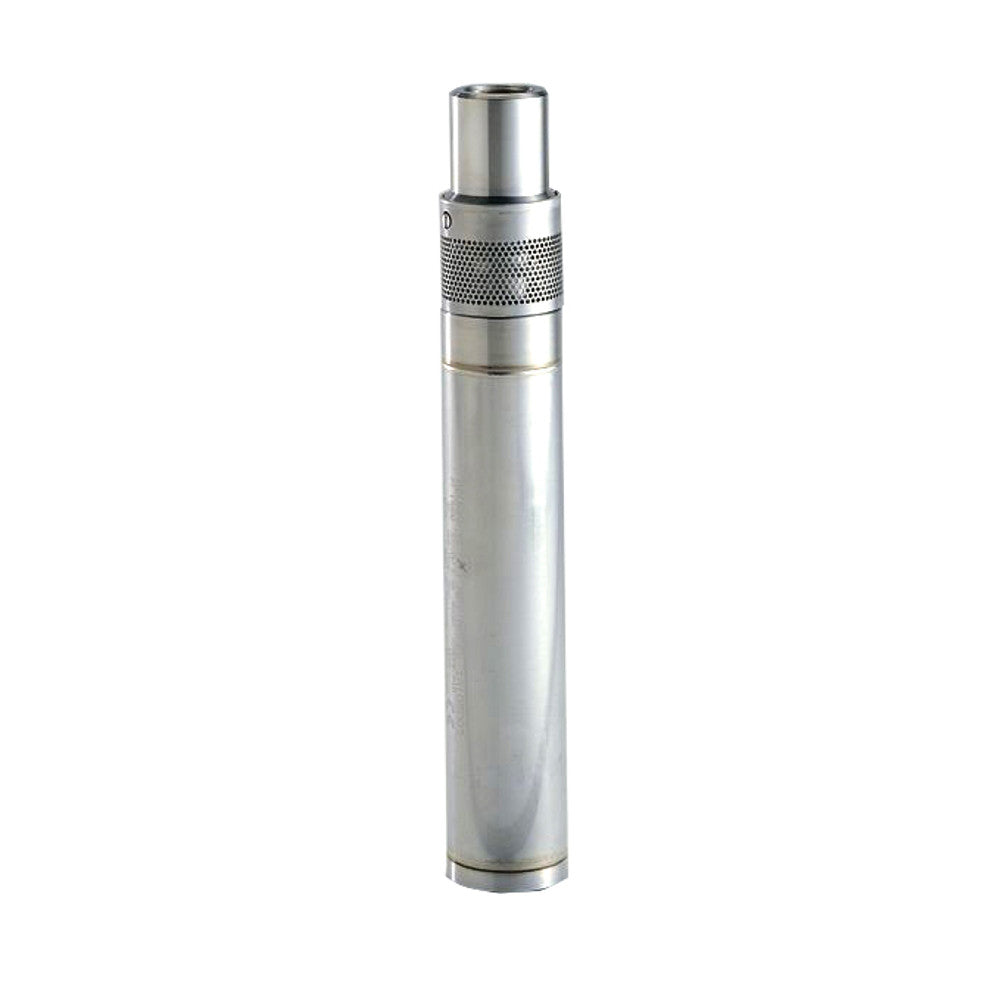

Grundfos Redi Flo 2 Submersible Groundwater Pump
The Grundfos Redi-Flo 2 is a variable speed submersible ground-water pump used for pumping, purging, and sampling groundwater.

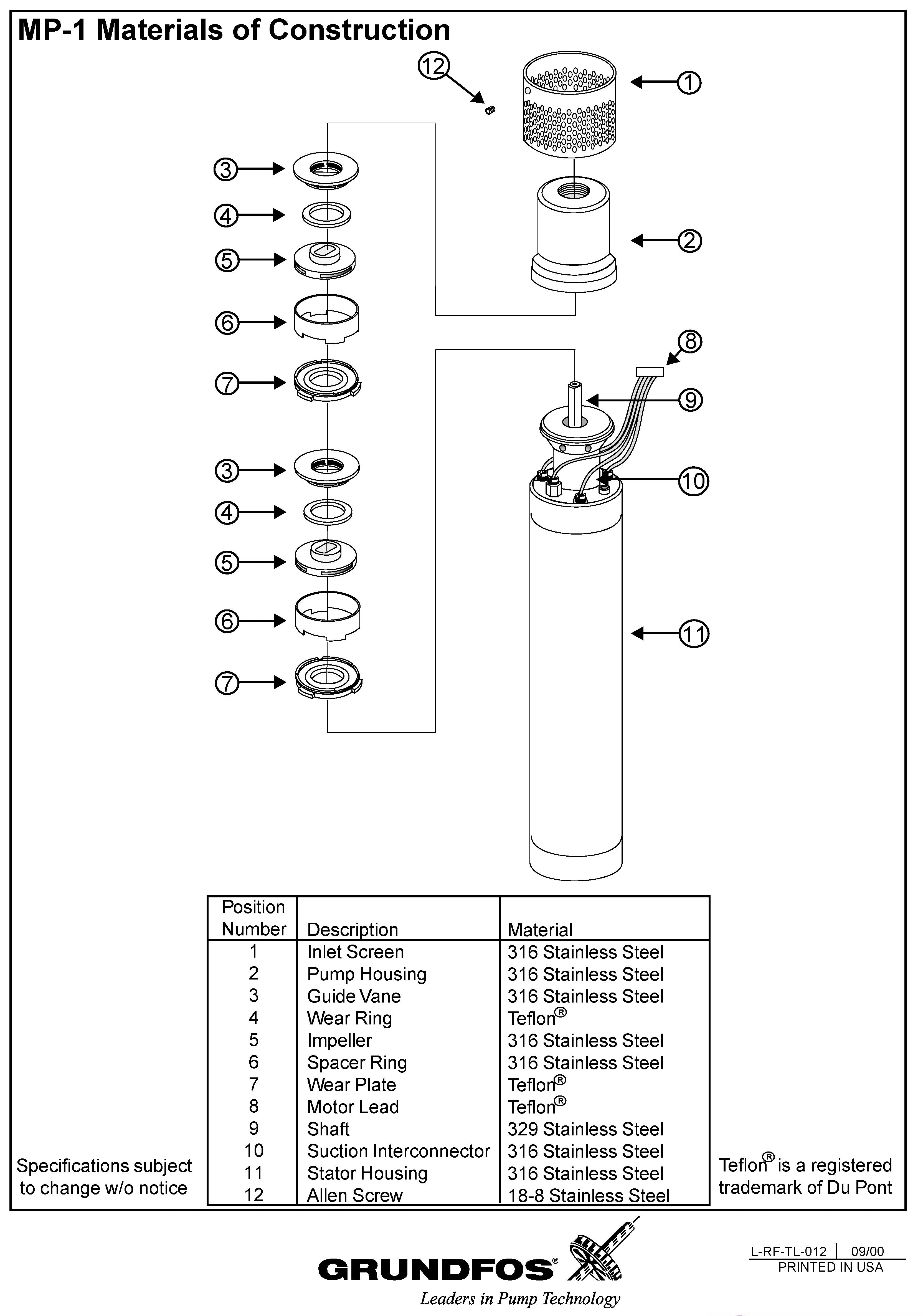

Constructed of PTFE and stainless steel, the pump meets all specifications for environmental applications. Flow rates up to 9 gallons per minute.
Motor leads are available in 100, 200 and 300-foot lengths.
Motor Type: Water-Filled, variable speed submersible
Maximum Fluid Temperature: 86° F (30° C)
Minimum Fluid Temperature: 34° F (1° C)
Maximum Input Power: 1.5 KW (2HP)
Maximum Motor Voltage: 3PH X 220 Volts at 400Hz
Maximum Motor Current: 5.5 Amps
Discharge Size: 1/2" Female NPT

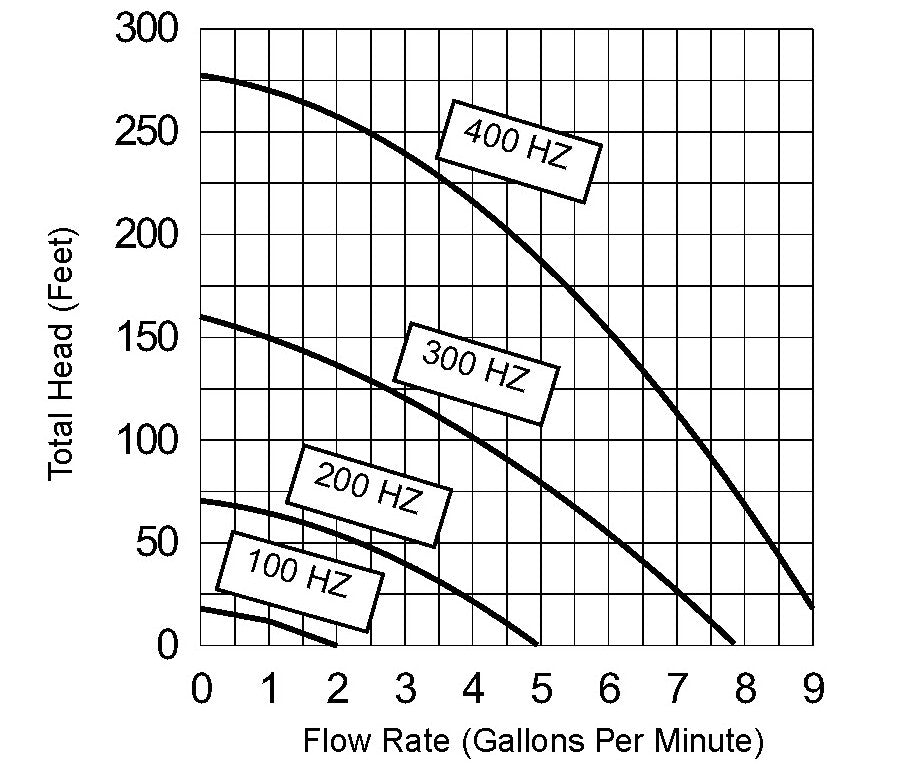

Flow Range: Continuous / Variable (100ml/min. - 9 U.S. GPM)
Motor Protection: Thermal Overload - Thermik Geratebau, Series SY6
Disconnect Temperature: 176° F (80° C)
Rated Current: 5 Amps
Current Overload: Incorporated into Redi-Flo VFD
Installation: Unit to be installed vertically for submerged operation.
Standard Lead Lengths: 100, 200, and 300 Ft.
Please note--Grundfos RediFlo VFD and Power Cable required for operation of Grundfos RediFlo 2 Submersible Groundwater Pump
