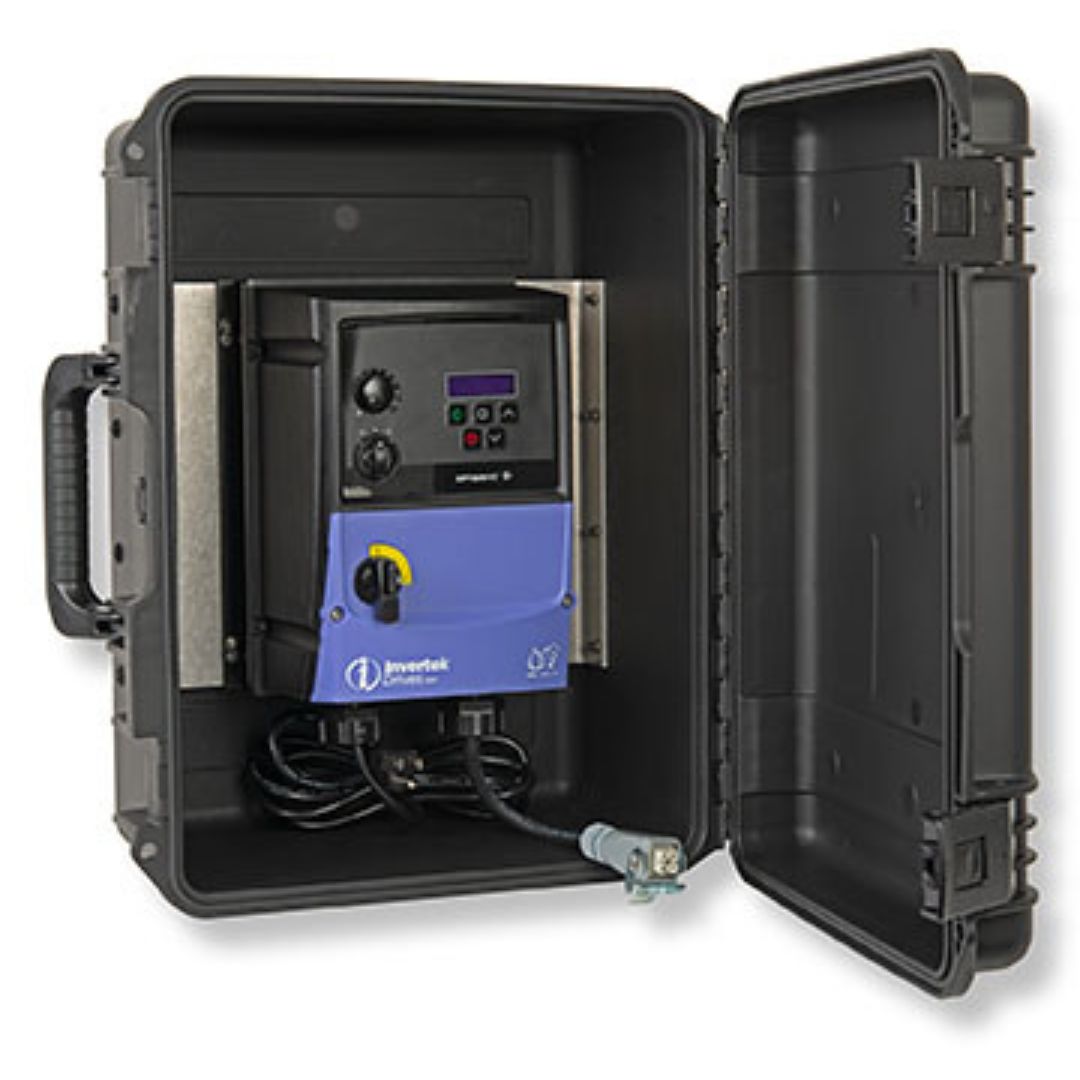

Geotech Variable Frequency Drive for Redi-Flo2
The Geotech Variable Frequency Drive (VFD) is designed to operate and protect the Redi-Flo2® pump. With the turn of a knob, an operator can precisely control the discharge flow rate from the pump from 8 GPM (30 LPM) to 100 milliliters per minute, to depths down to 280 feet (85m).
15 Foot Extension cord required to connect VFD to Geotech Reel is sold separately.
For use with Geotech Redi-Flo2 Reel Systems
Features:
- Control flow rate with turn of a knob or push of a button
- Wide Performance Range
- IP66/NEMA 4x Enclosure
- Optimized Volts/Frequency Pattern for efficient operation.
- Protect your pump from over- & under- voltage, over-current or ground fault
Specifications:
| Input (115V model) | 115V (±10%)/1PH/48-62Hz/23A |
|
Input (230V model) |
230V (±10%)/1PH/48-62Hz/23A |
|
Output |
1.1kW/400Hz/220V/3PH/5.5A |
| Wetted Parts: | 316 Stainless steel, PTFE, Viton® |
| Acceleration Time (preset) | 0 to 400Hz, 5 seconds |
| Deceleration Time (preset) | 0 to 400Hz, 5 seconds |
| Recommended Input Protection (115V) | Fuse, 600V, 30A, Fast Acting, UL Class CC or J |
| Recommended Input Protection (230V) | Fuse, 600V, 25A, Fast Acting, UL Class CC or J |
| Power Cord | 18AWG, 300V, 6 ft. |
| Minimum/Maximum Frequency | 1Hz/400Hz |
| Operating Temperature | -4-122° F |
