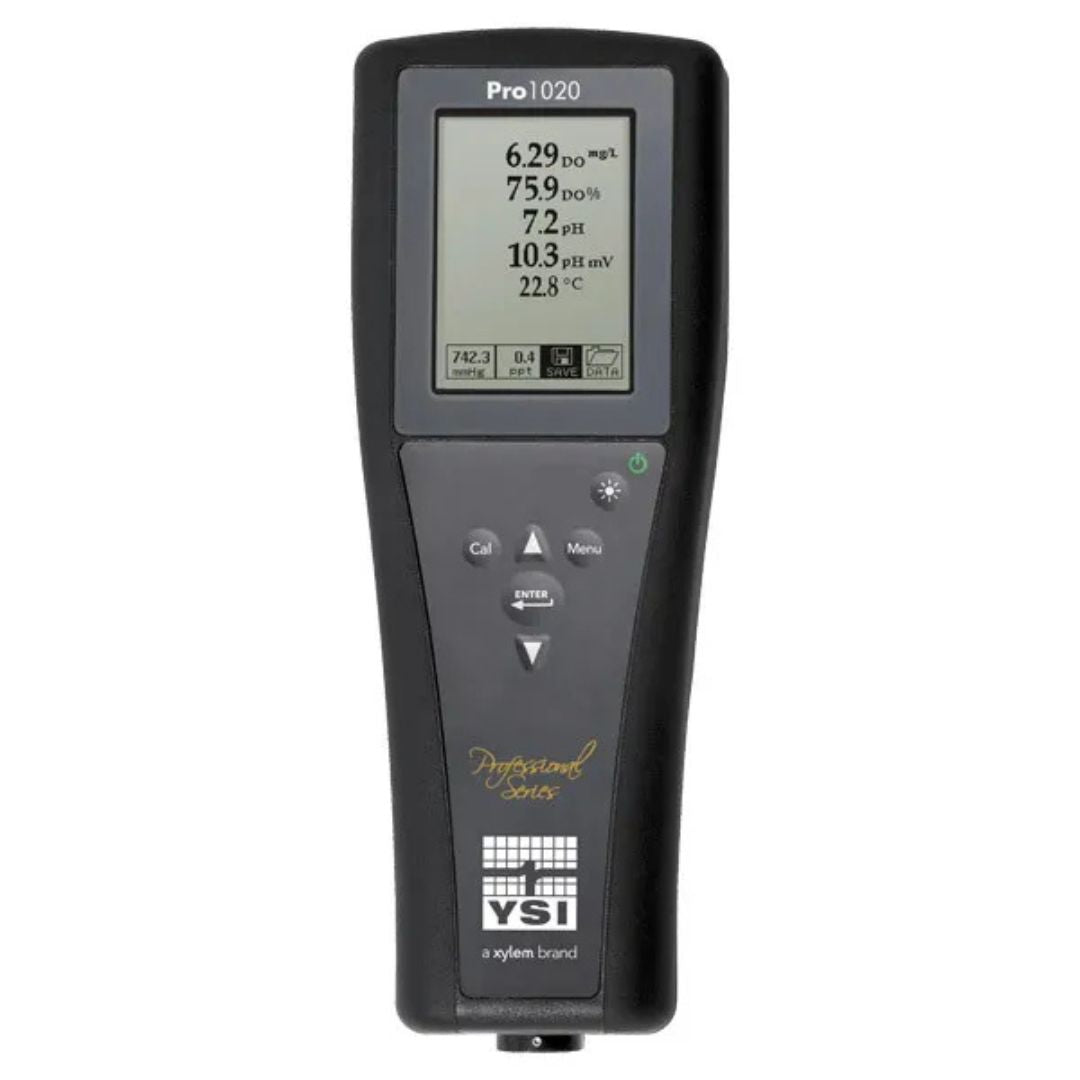

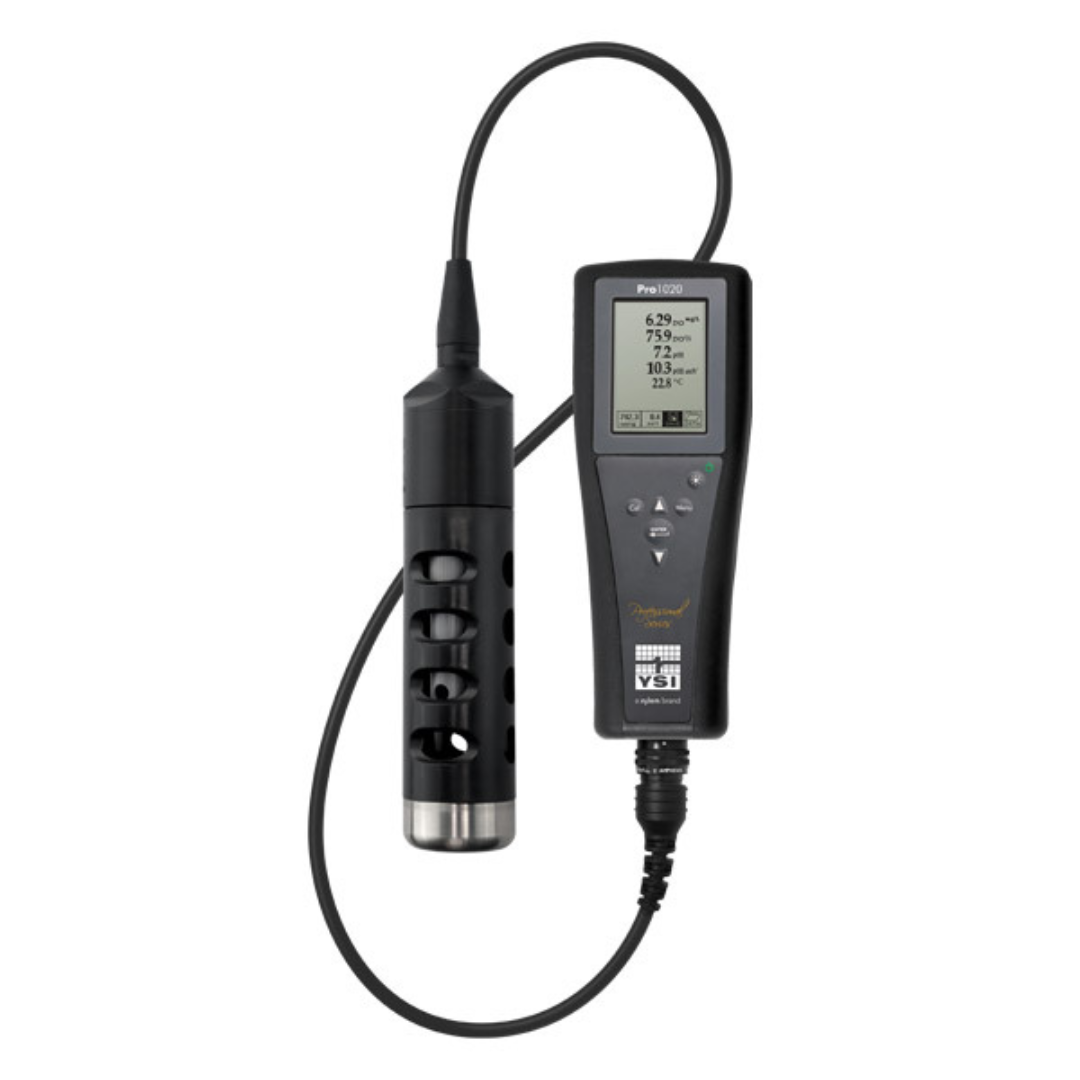

YSI Pro1020 Dissolved Oxygen and pH Handheld Meter
The Pro1020 is a handheld meter that measures dissolved oxygen and temperature and either pH or ORP (redox). It is rugged, simple, and reliable. EPA approved for drinking water and wastewater compliance reporting.
Instrument Only. Cables, probes/sensors, and accessories sold separately.
Features:
- User-replaceable cables and sensors (pH, ORP, Polarographic DO, Galvanic DO)
- Smart calibration
- Military spec connectors, IP-67 waterproofing, and 1-meter drop tested
- Rubber over-molded case
- Low total cost of ownership
- Stores 50 data sets
- Graphic, backlit display and glow-in-the-dark keypad visible with polarized sunglasses on
- Available with 1, 4, 10, 20, and 30-m cable lengths standard
- Multiple languages include English, Spanish, French, and Portuguese.
- 3-year instrument warranty; 2-year cable warranty; 1-year sensor warranty (Galvanic DO is 6 months)
- Quick response times: 95% DO response time in approximately 8 seconds with standard membrane (fastest response time in the market)
Specifications:
| Certification | WEEE, CE, IP-67, Assembled in USA, 1-meter drop test, RoHS |
|---|---|
| Connector | MS (military spec) waterproof with bayonet lock |
| Digital / Digital Sensors | Analog |
| Equipment used with | ProSeries 1020-x cables |
| Graphic Display | backlit display AND keypad, Graphic display with detailed Help |
| Languages | English, Spanish, German, French |
| Logging Capabilities | Single |
| Measurement Range | pH-0 to 14 units ORP--1500 to 1500 mV Dissolved Oxygen-0 to 500% air saturation, 0 to 50 mg/L Temperature--5 to 55°C |
| Memory | 50 data sets |
| Multiparameter | Yes |
| Parameters Measured | Dissolved Oxygen, pH, ORP, temperature |
| Power | 2 alkaline C-cells provide 425 continuous hours at ambient temperature without backlight |
| Sampling | Yes |
| Temperature |
-5 to 55°C, +/-0.3°C |
| Unit of Measure | ORP-mV, Temperature-°C, mg/L, Dissolved Oxygen % air saturation, pH-units |
| User Calibratable | Yes |
| User Replaceable | Yes |
| Warranty | 3-year instrument; 2-year field cables |
| Waterproof | IP-67 (even with the battery cover off), floats |
