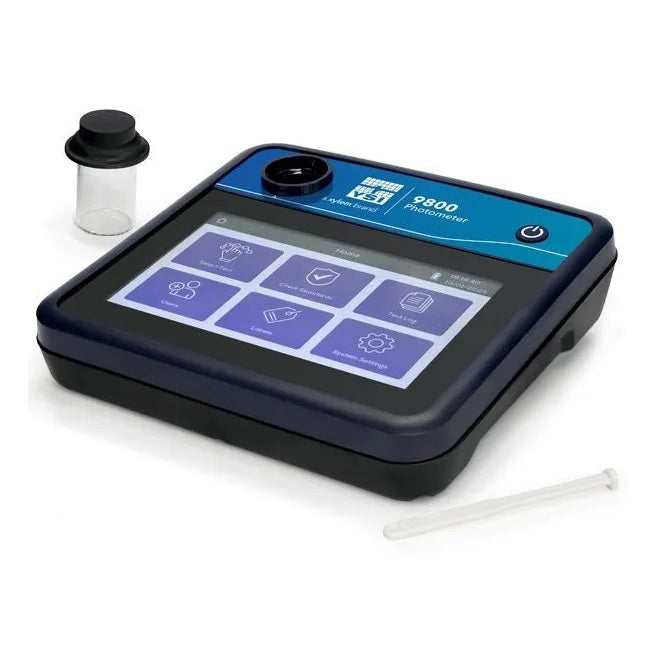

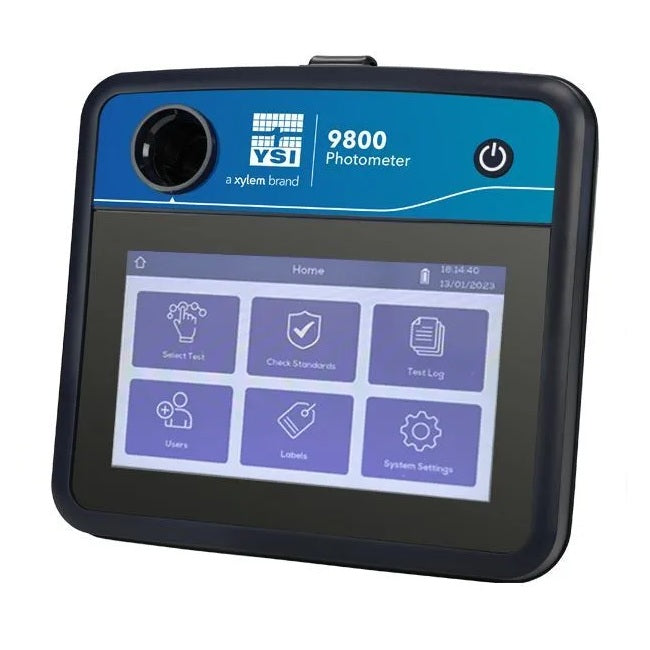

YSI 9800 Photometer Kit
The YSI 9800 is a portable, multiparameter photometer for quickly and accurately measuring over 30 water quality parameters. For use in the field or lab and featuring a large touchscreen display and an intuitive user interface with onscreen instructions, the 9800 Photometer is the ideal instrument for users of any level of experience operating in any environment!
Rugged and Modern
With an ergonomic design, the YSI 9800 boasts a waterproof IP-67 rating even when using a USB connection to power the instrument. It has been impact tested, and has an abrasion- and chemical-resistant coating. The large, full-color touchscreen display works even with wet or gloved hands.
Smart, Versatile
Onscreen step-by-step test instructions are available in multiple languages, including English, French, Spanish, and Mandarin. Choose from 30+ tests or define your own, with user-selectable options for test units, sample numbers, and dilution factors. The YSI 9800 automatically stores all test results, data IDs, and user information for data compliance and traceability with a 1,000 data set memory. Data management and user-upgradeable software is easy via USB connectivity to a PC that also powers the instrument.
Sustainable
Fully serviceable and repairable over the life of the instrument, with a longer-lasting battery life (up to 5,000 tests per set) and comes with a carrying case that is composed of 100% recycled materials.
The YSI 9800 directly replaces the YSI 9300 and YSI 9500 photometers. The YSI 9300 and YSI 9500 have been discontinued.
Note: Reagents are sold separately.

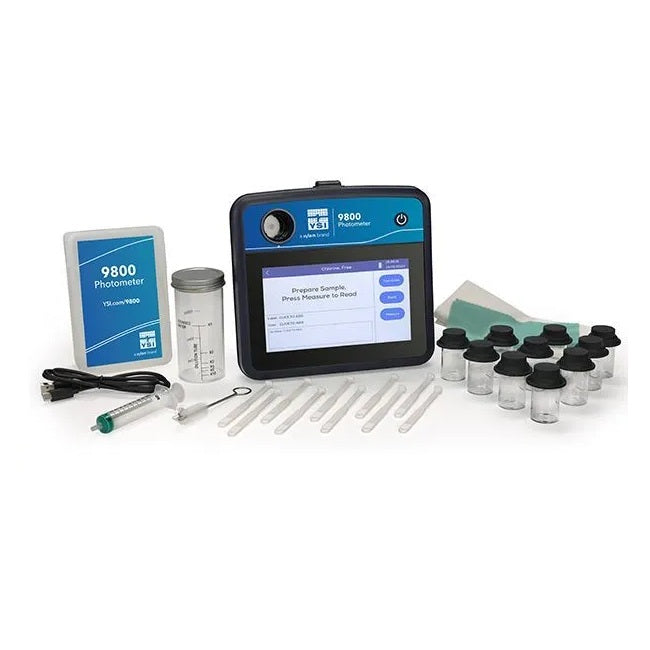

Photometer Kit Includes
- YSI 9800 photometer
- Carrying case
- 1 dilution tube
- 1 syringe (luer slip, 10 mL)
- 1 polishing cloth
- 1 absorbent cloth
- 1 test tube brush
- 1 USB Type A to C cable
- 10 stir rods
- 10 test tubes
- 1 reagent box
- 1 quick start guide
Specifications
| Instrument Type | Multiparameter Photometer |
|---|---|
| Wavelengths | 430 nm, 465 nm, 530 nm, 575 nm, 620 nm |
| Accuracy | ± 1%T (transmission) |
| Display | Large, Color LCD |
| User Interface | Touch screen with walkthrough text instructions |
| Dimensions | Width: 211 mm (8.3 in) Length: 195 mm (7.7 in) Height: 52 mm (2.0 in) |
| Weight | 0.85 kg (1.87 lbs) |
| IP Rating | IP-67 |
| Power Supply | 6x AA Batteries or through USB |
| Connectivity | Connect to PC via USB cable |
| Memory Capacity | 1,000 data sets |
| Battery Life | 5,000 tests on one set of batteries |
| Languages | English, French, Spanish, and Chinese (Simplified) |
| Certifications | EN61326, EN61010, IP67, and EN60068-2-78 |
