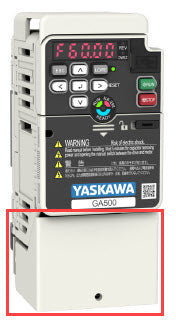

Yaskawa UL Type 1 Adapter Kits for 240V, 1 Phase Input GA500 Drives
Standard GA500 drives are sold as an IP20 / protected chassis type. An additional Type 1 Adapter kit is needed to convert an IP20 / protected chassis drive into an enclosed, wall-mounted drive (UL Type 1). The UL Type 1 Adapter Kit may be referred to as an End Cap Kit.
Use the table below to find the Yaskawa part number for the Type 1 Adapter kit for GA500 drives.
- To comply with UL requirements, Semiconductor fuses OR Class CC, J or T Fuses must be used. Refer to GA500 Selection Guide SL.GA500.01 (Drive Short Circuit Protection Section) for fuse selection.Refer to the UL Type 1 Kit Instruction Manual as needed.
- Class RK fusing or an MCCB (molded case circuit breaker) cannot be used with Type 1 Adapter kits for UL. Drive must be inside a Protected enclosure. Refer to Selection Guide link above.
|Input Voltage Rating||Drive Model Catalog Code||Type 1 Adapter Kit Part #||Drawing|
