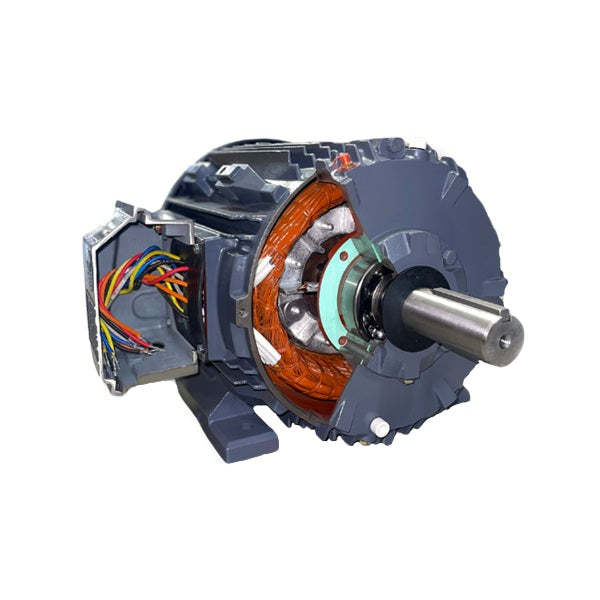

TechTop 2 HP XR3 NEMA 4 Super Premium TEFC Three Phase Cast Iron Motors
Experience the power of quality and innovation with a TechTop electric motor. These motors are engineered with precision and built for durability, featuring advanced protection mechanisms to ensure long-lasting performance.
XR3 motors are designed to exceed the Super Premium levels so that the same motor will meet NEMA premium levels when run on alternate voltages and frequencies.

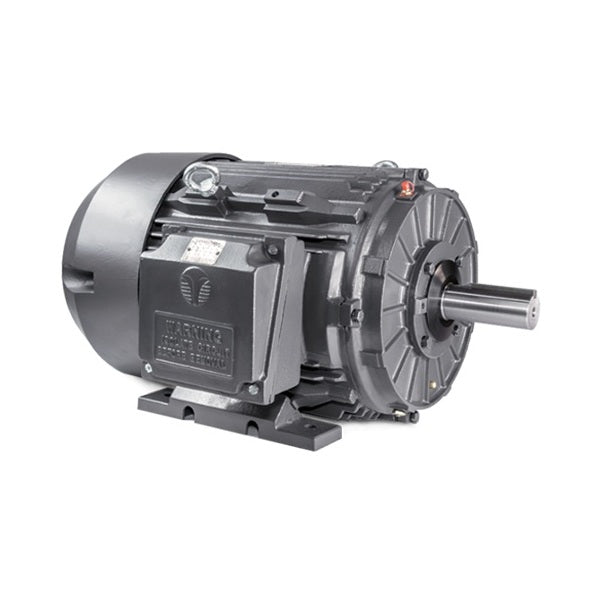

Pictured motor is an example only, product appearance may vary.
Warranty
These three phase cast iron motors come with a 36 month warranty from TechTop that starts from date of purchase.
Features
- SUPER Premium Efficiency Design
- Drains at 12, 3, 6, and 9 o'clock
- Breather in 6 o'clock, others plugged
- Ductile Iron Feet
- Bearing Retainer Gasket
- Viton Double Lip Oil Seals
- Class H Insulation VPI -Tropicalized- Lap-wound
- Oversized-Color Coded -Tagged- Class H Leads
- Arc Arrestor Shaft Grounding Brush Installed
- MG1 Part 31 Compliant for VFD use (15:1 CT)
- 2-Part Epoxy Coating - IP 55 Ingress Protection
- 1045 Steel Shaft (through 326T), 4140 (326T & up)
- Multi-mount Frame Design (F1,F2,F0)
- Auto-purge Brass Condensation Drains
- 1.25 Service Factor
- DE and ODE Oversized Bearing Size
- Zerk fitting Regreasable Bearings 254T & Larger
- 90° Rotatable - Full Rubber Gasket Conduit Box
- Heavy Duty Cast Iron Fan Cover
- Rubber Shaft Slinger for Vertical Application
- Interchangeable C & D Flanges Available
- Class 1, Div 2, Groups A, B, C & D Certified*
- EISA Regulation Compliant
- 40°C Ambient Temperature Rating
- 36 Month Warranty from Purchase Date
*Requires removal of internal Grounding Brush. Note requirement on your order.
Specifications
- 2 HP Three Phase Cast Iron Electric Motor
- TEFC
- NEMA 4 Super Premium
- Voltage: 200/400V 60HZ, 230/460 60HZ, 190/380V 50HZ
Available in the following options:
| MPN & DATA SHEET | RPM | FRAME | TYPE | LBS |
|---|---|---|---|---|
| XR3-CI-TF-145T-2-B-D-2 | 2 Pole (3600) | 145T | Rigid Base | 49 |
| XR3-CI-TF-145TC-2-B-D-2 | 2 Pole (3600) | 145TC | C-Face | 53 |
| XR3-CI-TF-145T-4-B-D-2 | 4 Pole (1800) | 145T | Rigid Base | 63 |
| XR3-CI-TF-145TC-4-B-D-2 | 4 Pole (1800) | 145TC | C-Face | 72 |
| XR3-CI-TF-184T-6-B-D-2 | 6 Pole (1200) | 184T | Rigid Base | 118 |
| XR3-CI-TF-184TC-6-B-D-2 | 6 Pole (1200) | 184TC | C-Face | 118 |
