TechTop 1.5 HP XR3 NEMA 4 Super Premium TEFC Three Phase Cobra Aluminum Motors
Experience the power of quality and innovation with a TechTop electric motor. These motors are engineered with precision and built for durability, featuring advanced protection mechanisms to ensure long-lasting performance.
XR3 motors are designed to exceed the Super Premium levels so that the same motor will meet NEMA premium levels when run on alternate voltages and frequencies.

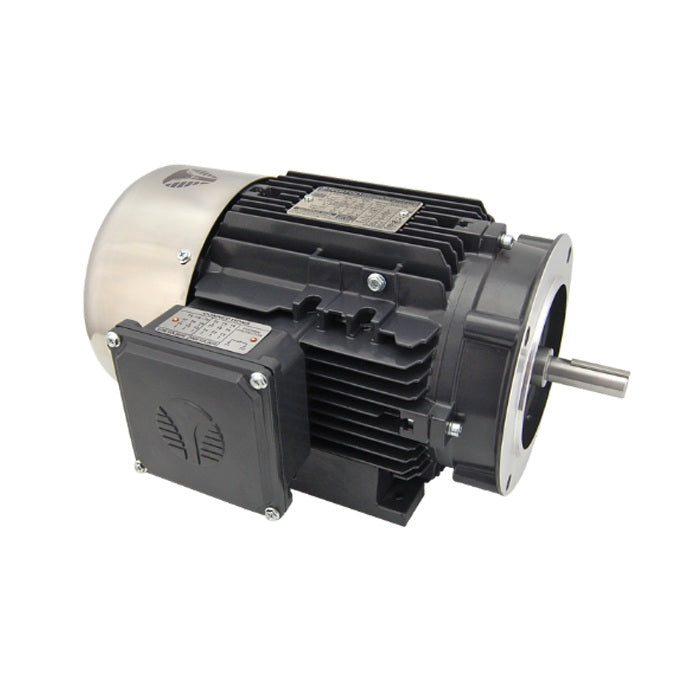

Pictured motor is an example only, product appearance may vary.
Warranty
These three phase Cobra aluminum motors come with a 36 month warranty from TechTop that starts from date of purchase.
Features
- SUPER Premium Efficiency Design
- Arc Arrestor Shaft Grounding Brush Installed
- Drains at 12, 3, 6, and 9 o'clock
- Breather in 6 o'clock, others plugged
- Standard C-Face Installed
- Viton Double Lip Shaft Seal
- Fully Epoxy Potted Conduit Box Entry
- Stainless Steel Anti-Corrosion Fan Cover
- Brake Kit Ready
- PTC Thermal Protection Installed
- Multi-mount Removable Feet F1, F2, F0 convertible
- 1.25 Service Factor with 60Hz TEFC operation
- Conduit Box 90° rotatable
- Full Die-Cast Aluminum Frame
- Anti-microbial (tropicalization) coating on stator
- Over sized shielded bearings
- TENV Capable at 1.0 SF
- 1045 steel shaft
- Stainless steel nameplate
- Corrosion resistant Blue Zinc hardware
- Class 1, Division II, Groups A, B, C and D Compliant*
- Powder Coated RAL7024 - Graphite Gray
- Continuous (S1) Duty
- Ambient Temperatures up to 40°C
- Installation up to 3300ft
- IP 55
- Inverter Rated 15:1 Constant Torque (1.0 S.F. on VFD Power) per NEMA MG 1 Part 31
- Designed to Class B temperature rise
- Vacuum Pressure Impregnated Stator
- 36 Month Warranty from Purchase Date
*Requires removal of internal Grounding Brush. Note requirement on your order.
Specifications
- 1.5 HP Three Phase Cobra Aluminum Electric Motor
- TEFC
- NEMA 4 Super Premium
- Voltage: 200/400V 60HZ, 230/460 60HZ, 190/380V 50HZ
| MPN & DATA SHEET | RPM | FRAME | TYPE | LBS |
|---|---|---|---|---|
| XR3-AL-TF-143T-2-B-D-1.5 | 2 Pole (3600) | 143T | Rigid Base | 30 |
| XR3-AL-TF-143TC-2-B-D-1.5 | 2 Pole (3600) | 143TC | C-Face | 30 |
| XR3-AL-TF-56C-2-B-D-1.5 | 2 Pole (3600) | 56C | C-Face | 26 |
| XR3-AL-TF-56HC-4-B-D-1.5 | 4 Pole (1800) | 56HC | C-Face | 32 |
| XR3-AL-TF-145T-4-B-D-1.5 | 4 Pole (1800) | 145T | Rigid Base | 39 |
| XR3-AL-TF-145TC-4-B-D-1.5 | 4 Pole (1800) | 145TC | C-Face | 40 |
| XR3-AL-TF-182T-6-B-D-1.5 | 6 Pole (1200) | 182T | Rigid Base | 67 |
| XR3-AL-TF-182TC-6-B-D-1.5 | 6 Pole (1200) | 182TC | C-Face | 67 |
