TechTop 1.5 HP NEMA Premium TEFC Explosion Proof Three Phase Cast Iron Motors
Experience the power of quality and innovation with a TechTop electric motor. These motors are engineered with precision and built for durability, featuring advanced protection mechanisms to ensure long-lasting performance.
Explosion proof motors are designed specifically to operate safely in hazardous environments. Their enclosures are constructed to prevent entry of explosive gases, vapors or dust, and withstand the pressure generated by an internal explosion, keeping it contained.

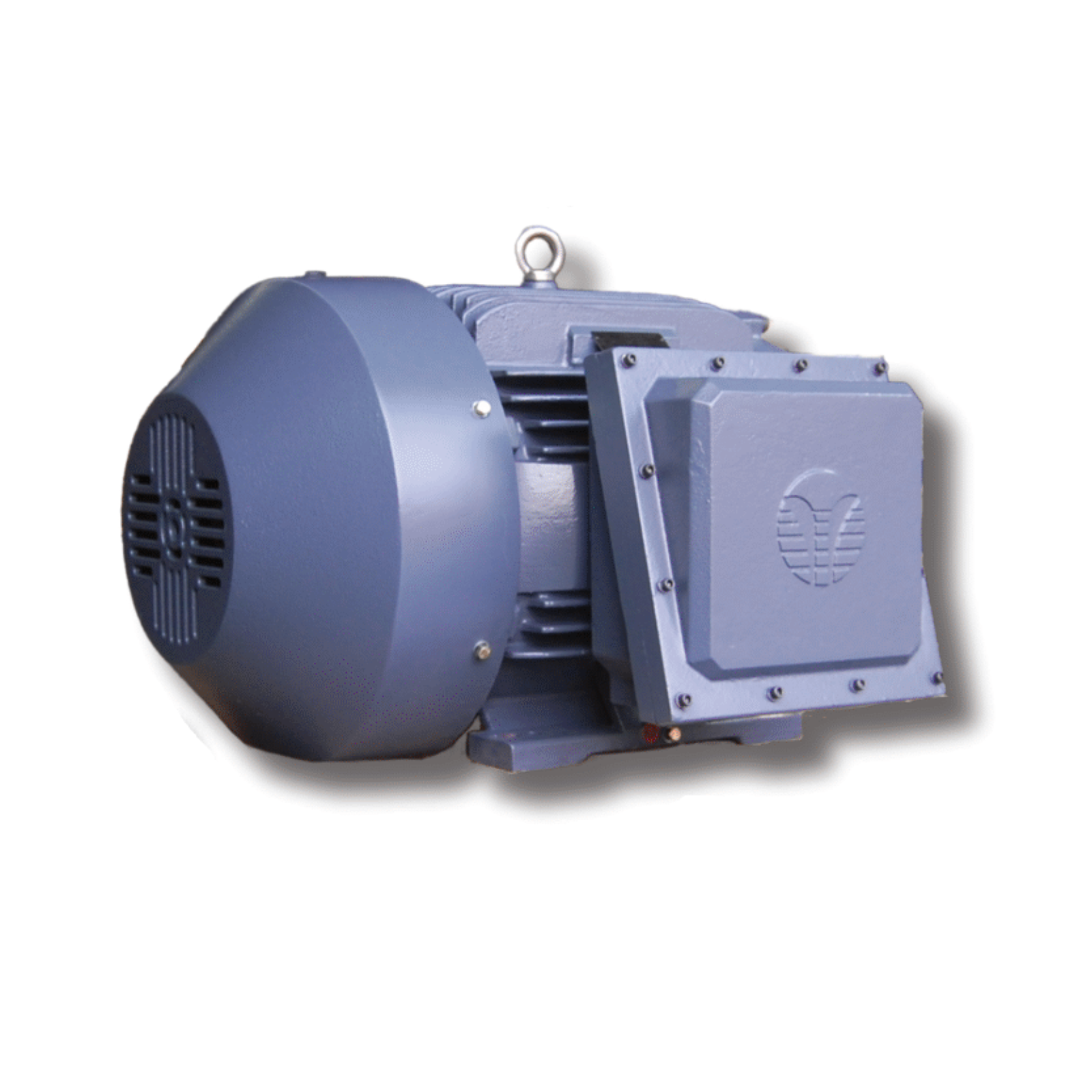

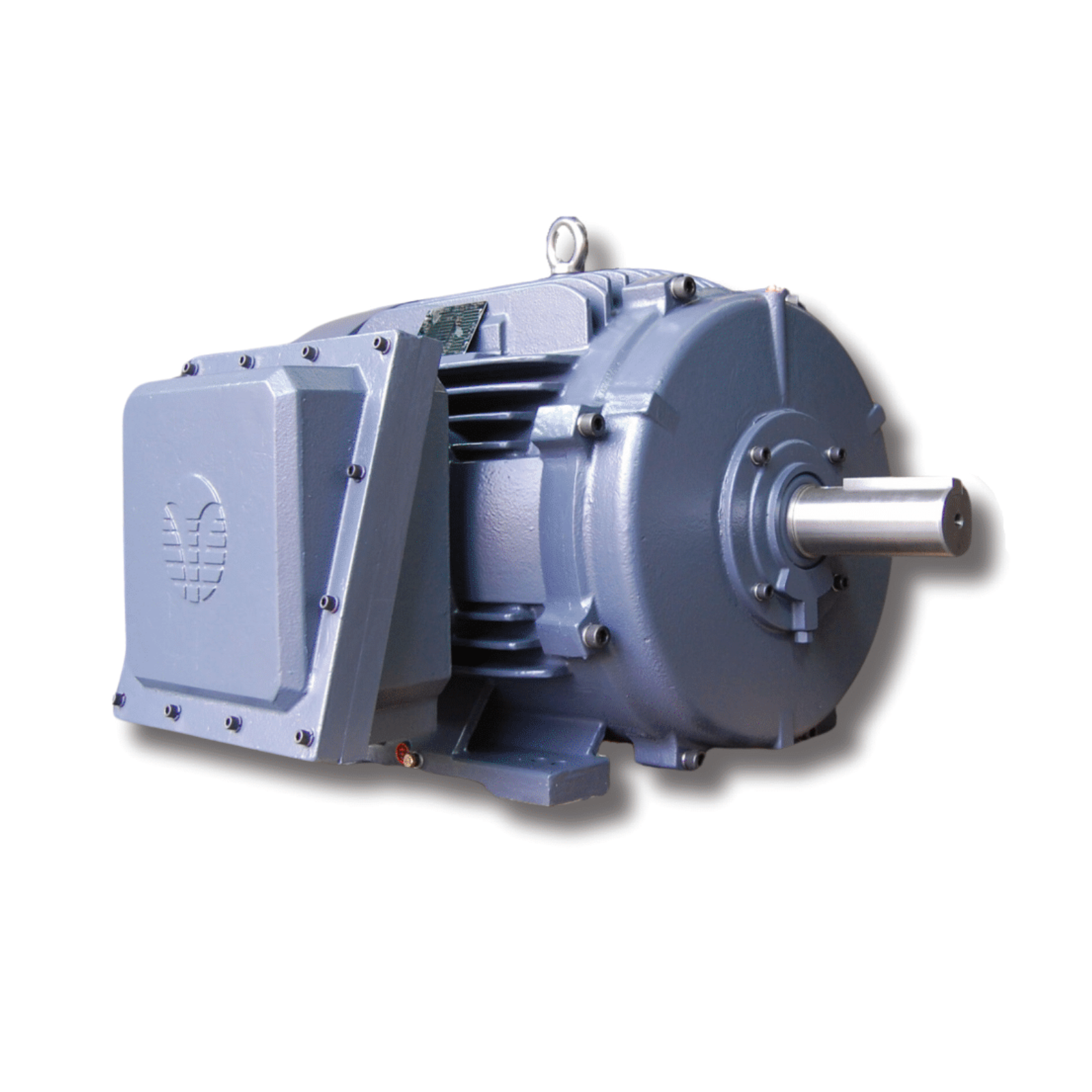

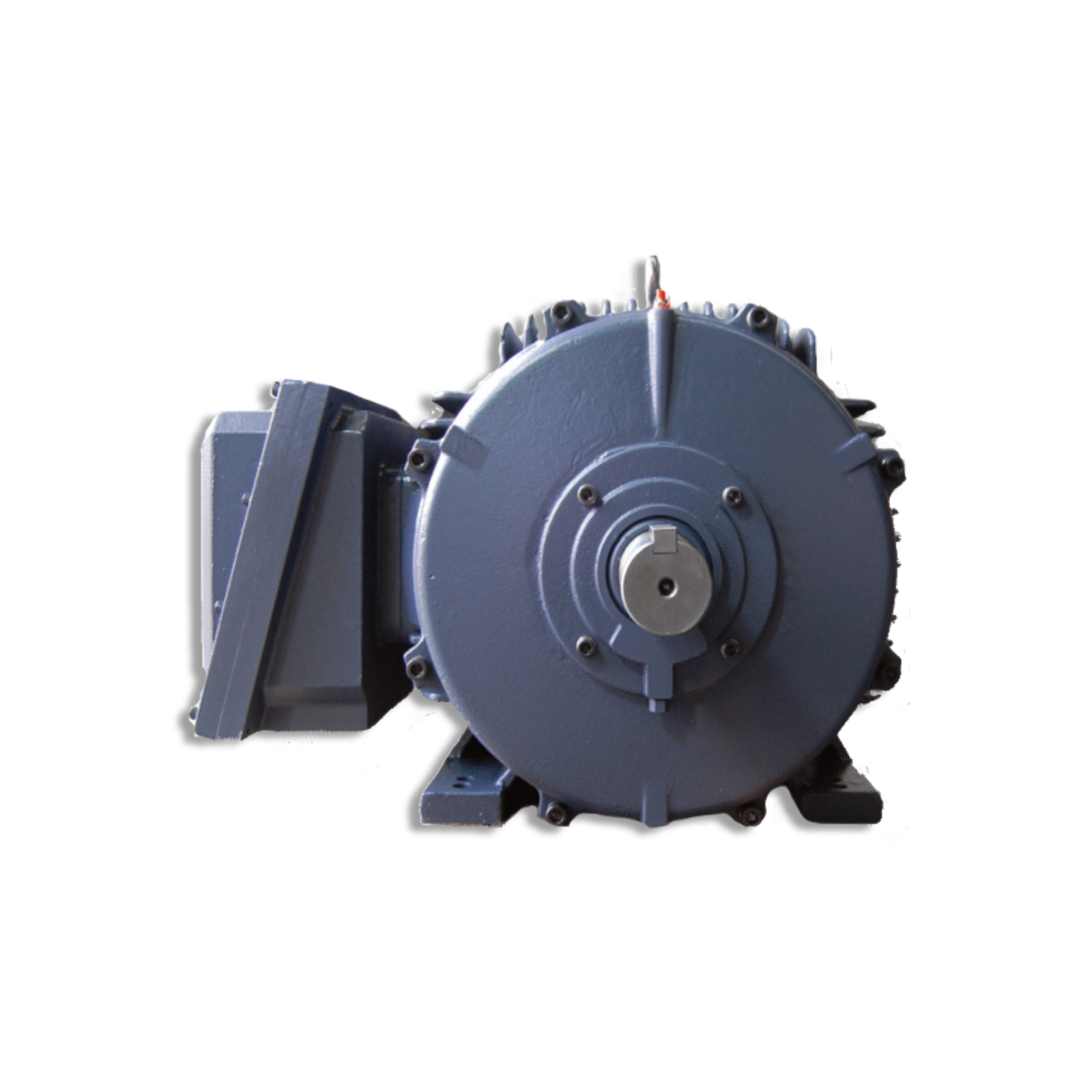

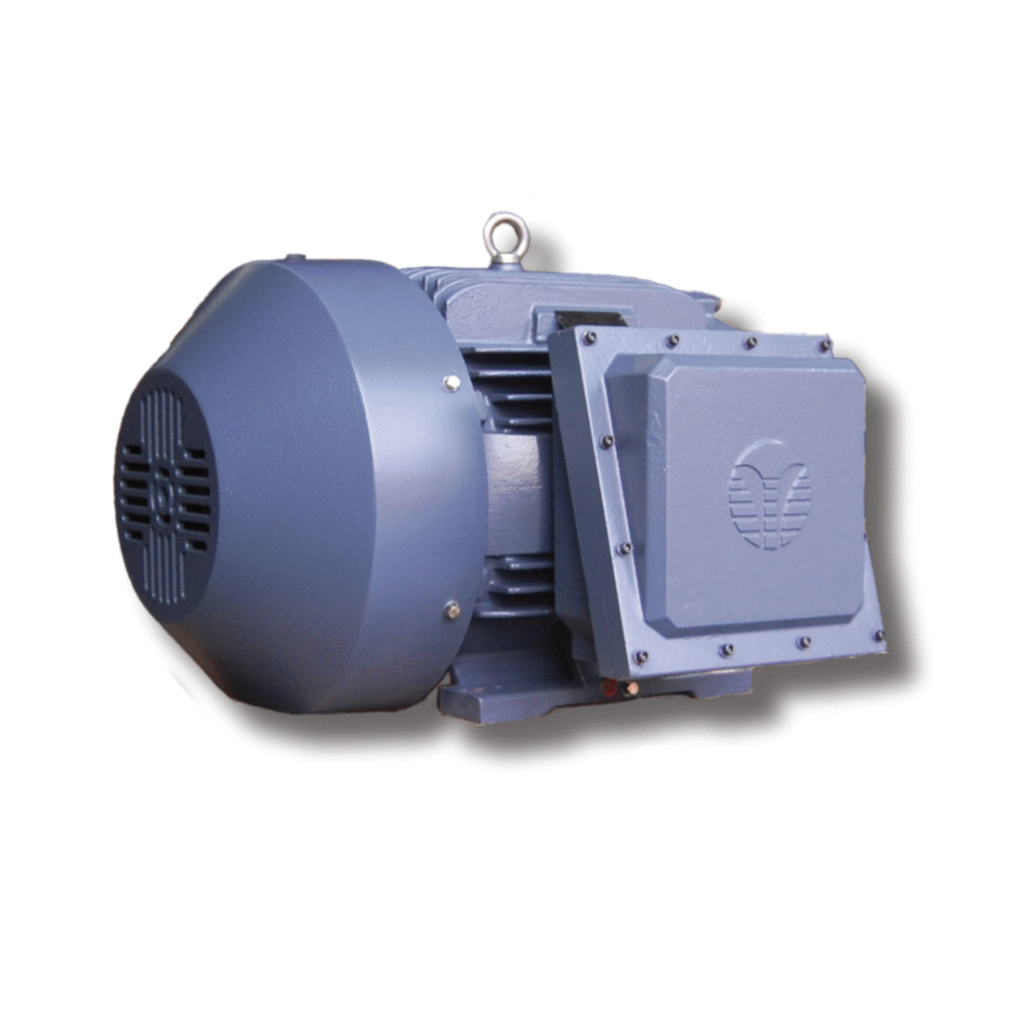

Pictured motor is an example only, product appearance may vary.
Warranty
These explosion proof cast iron motors come with a 36 month warranty from TechTop that starts from date of purchase.
Features
- NEMA Premium
- 50/70°C Ambient Temperature Rated
- 1.15/1.0 Service Factor
- Certified for Hazardous Location
- IP 55 Ingress Protection
- Inverter Rated- 4:1 Constant Torque (MG1 Part 31)
- Dual Oversized Bearings with Labyrinth Seal
- Full Cast Iron Construction
- Vacuum Impregnated Stator
- Color Coded Lead Wires
- Regreaseable Bearings 254T and larger
- Hazard Location Cert. Condensate Drains
- Conduit Box is 90° Rotatable
- IEEE 45 Above/Below Deck and Boiler Room Cert.
- Zerk Regreaseable Bearings
- Temp Code T4 ≤ 326T Frame/Temp Code T3C ≥ 364T
- Class 1, Division 1 Groups C, D
- Class 2, Division 1 Groups F, G
- Class 1-Zone 1/20/21-Group IIA/IIB Compliant
- 575 Volt Available
- C-Flanges Available ( “TC” in Part # )
- 36 Month Warranty from Purchase Date
Specifications
- 1.5 HP Explosion Proof Three Phase Cast Iron Electric Motor
- TEFC
- NEMA Premium
- Voltage: 230/460V 60HZ
Available in the following options:
| MPN & DATA SHEET | RPM | FRAME | TYPE | LBS |
|---|---|---|---|---|
| XP3-143T-2-1.5 | 2 Pole (3600) | 143T | Rigid Base | 78 |
| XP3-143TC-2-1.5 | 2 Pole (3600) | 143TC | C-Face | 78 |
| XP3-145T-4-1.5 | 4 Pole (1800) | 145T | Rigid Base | 82 |
| XP3-145TC-4-1.5 | 4 Pole (1800) | 145TC | C-Face | 82 |
| XP3-182T-6-1.5 | 6 Pole (1200) | 182T | Rigid Base | 131 |
| XP3-182TC-6-1.5 | 6 Pole (1200) | 182TC | C-Face | 131 |
