PRM provides the highest quality Remediation systems in the industry, and this AS/SVE System was built by PRM for a client in 2014. Lightly used, client is looking to sell this system at a deep discount to a new project site.
Features:

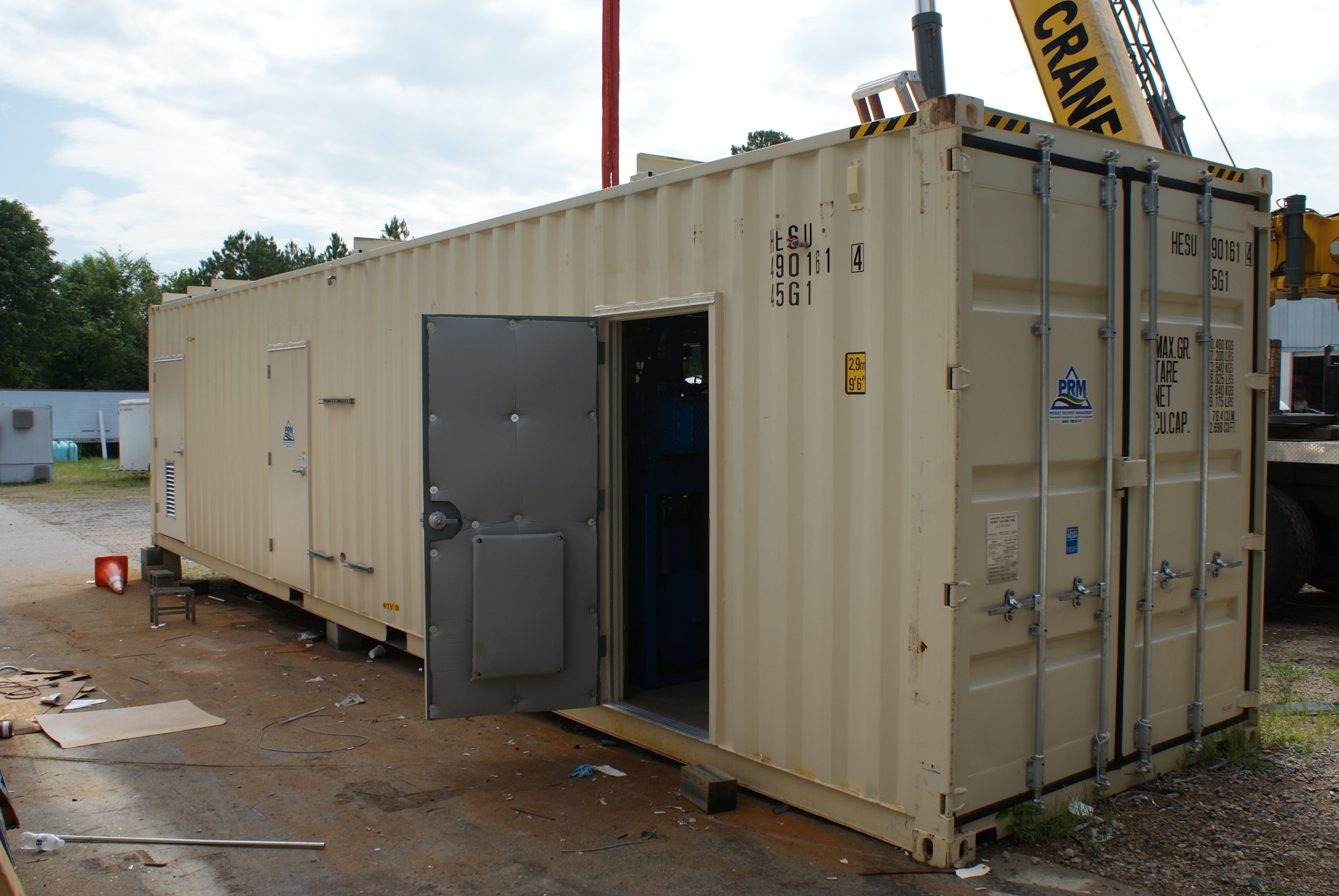

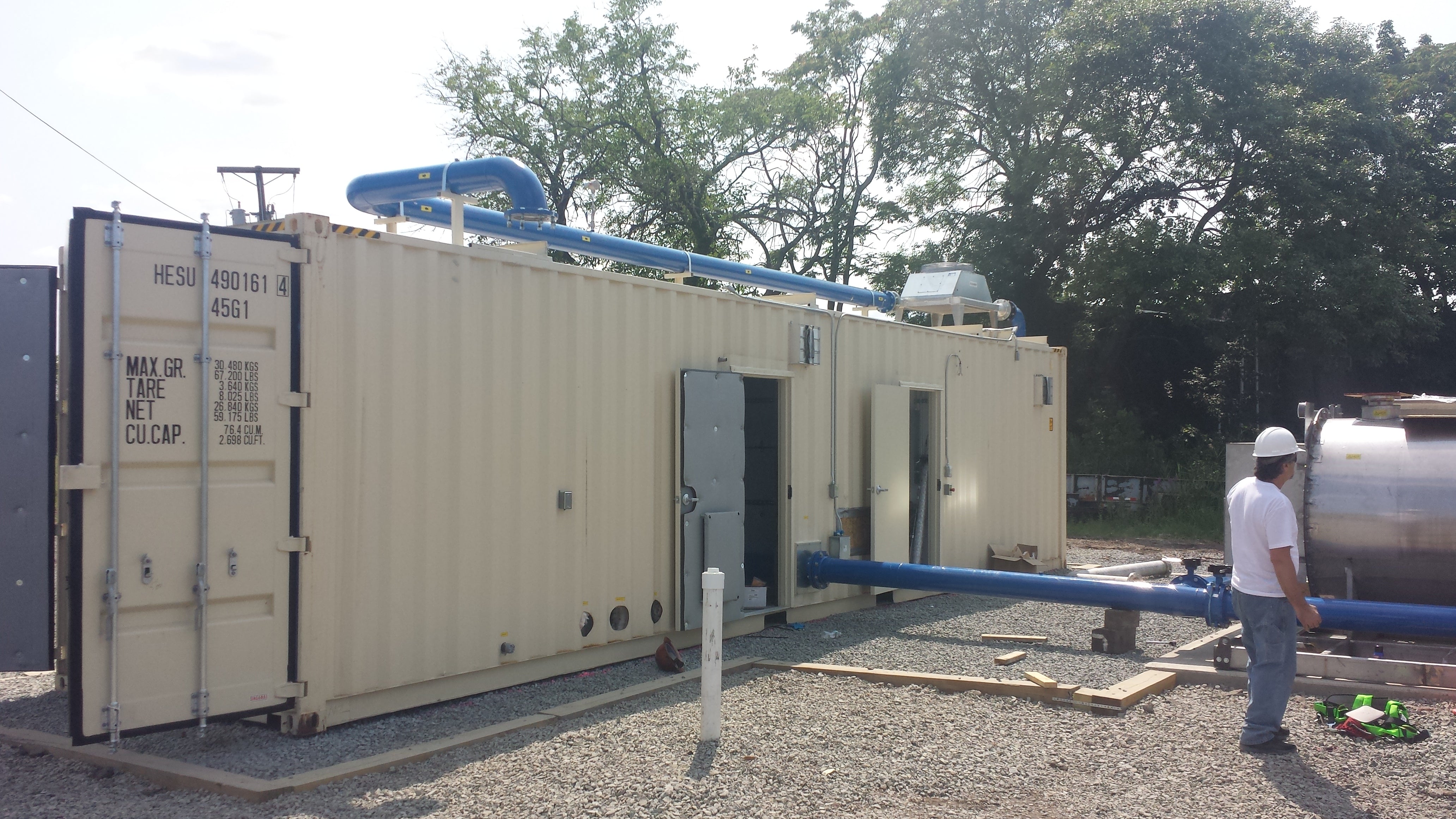

- 40’ x 9.5’ high cube shipping container, double locking doors, separated into 3 rooms, Air Sparge, Control Room, and SVE Room. Each room is wired per National Electric Code.

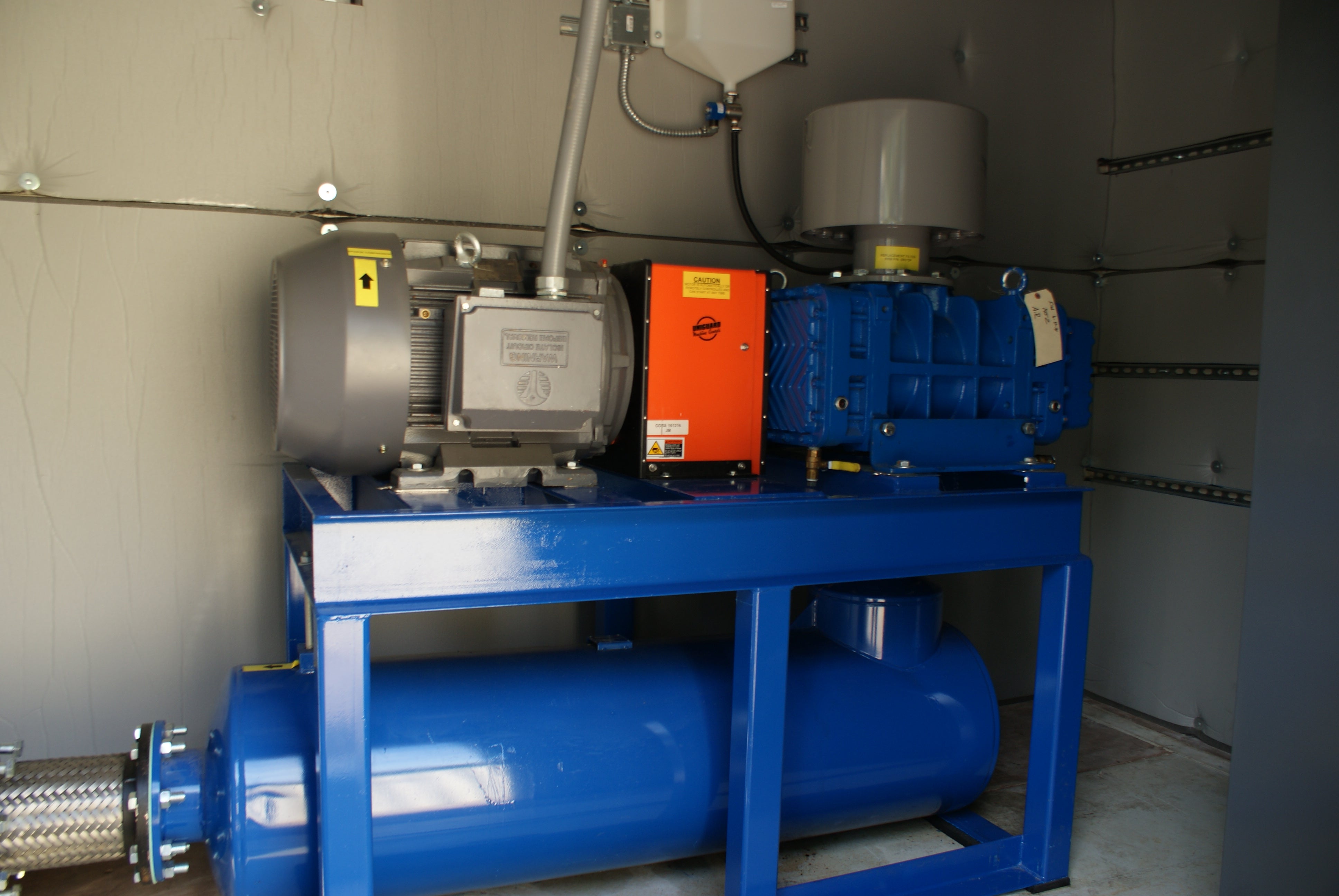

- Premium Rotary Lobe Soil Vapor Extraction blower. SVE blower is a Eurus MB 6024 to provide 1500 scfm @ 80 “WC vacuum at the blower. This unit is direct driven with a 60HP, 480V, 3PH, Premium Efficiency, TEFC motor. Maximum vacuum of this blower is 17”Hg. This blower is oversized to accommodate future system connections and should run in the middle of its curve to provide and adjustment range.
- 8” Flanged Inlet and 10” Outlet piped down to 8”
- 8” Stainless steel flanged flex connector at blower inlet and outlet to reduce vibration and pulsation transmission through piping.
- T.B. Woods S-Flex 11S Series flexible power transmission coupling with Sureflex 11E EPDM sleeve
- 8” Stoddard D33H-8 outlet silencer with flanged connection.
- ABB ACS550 Series VFD for blower speed control. Drive is equipped with ABB advanced keypad.
- MS300 Aluminum Moisture Separator, epoxy coated inside and out for compatibility with chlorinated solvents
- 8" Aluminum discharge to building exterior for connection to oxidizer or carbon absorbers.
- VP3000 vapor phase carbon vessels for air treatment following oxidizer shutdown
- HP200 liquid phase carbon vessels for treatment of water pumped out of moisture separator
Air Sparge System:
- Eurus ZG150 Blower with 60HP, 480V, 3PH TEFC motor, 700SCFM@10psi
- 6" Flanged In/Out
- ABB ACS550 VFD with advanced keypad
- NEMA 4 3rd Party Listed Control Panel; UL 508A and 698A Certifications

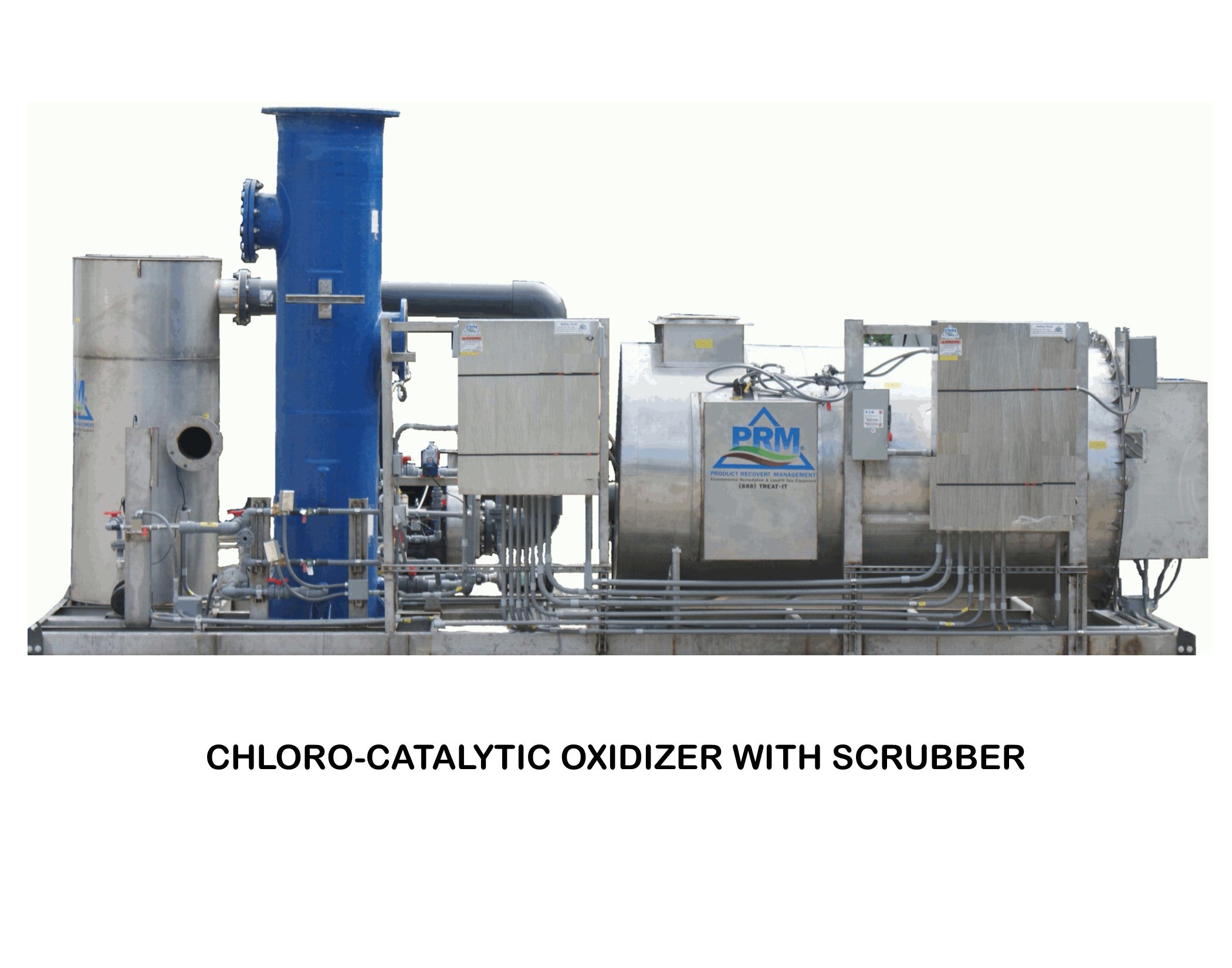

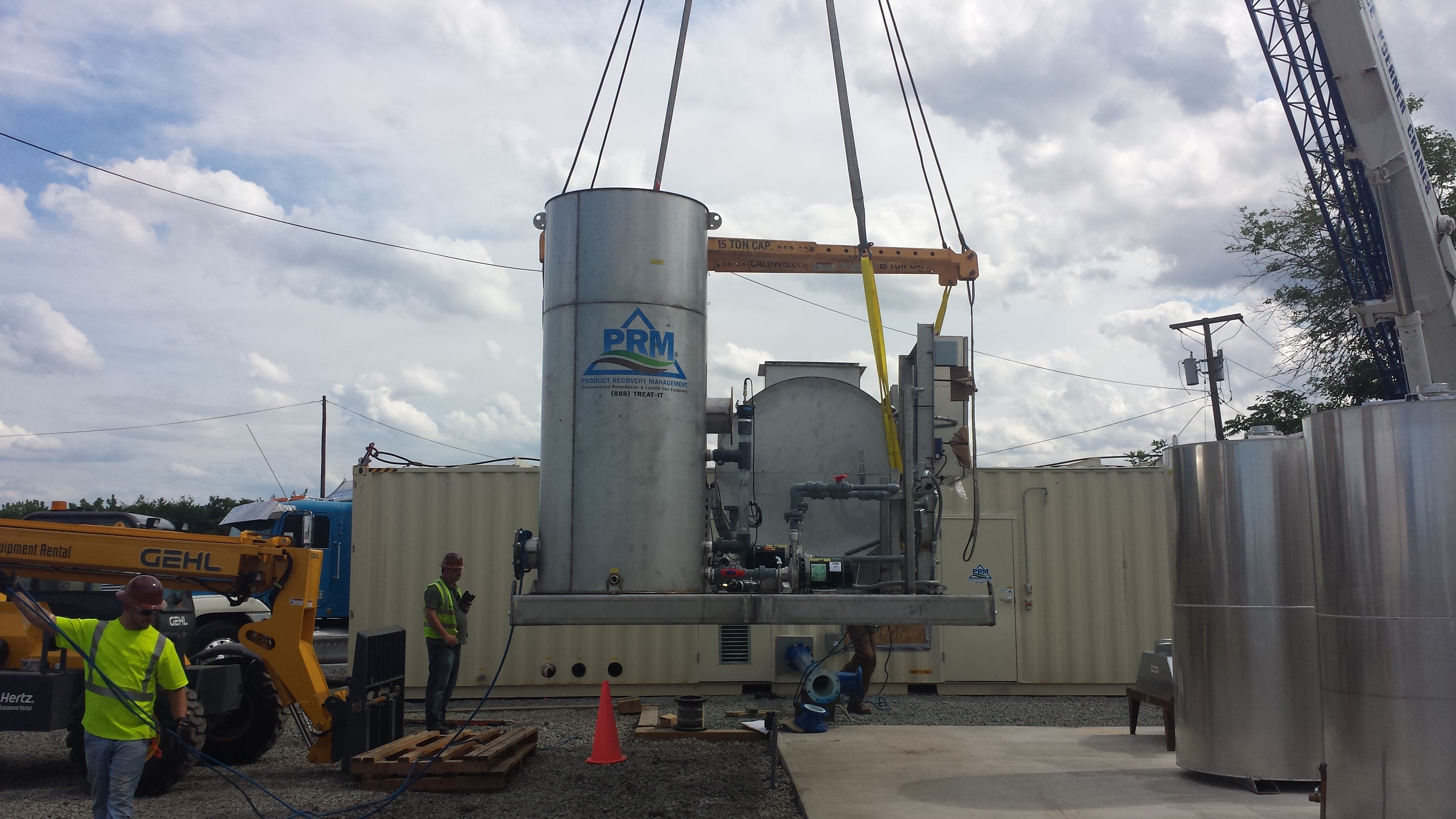

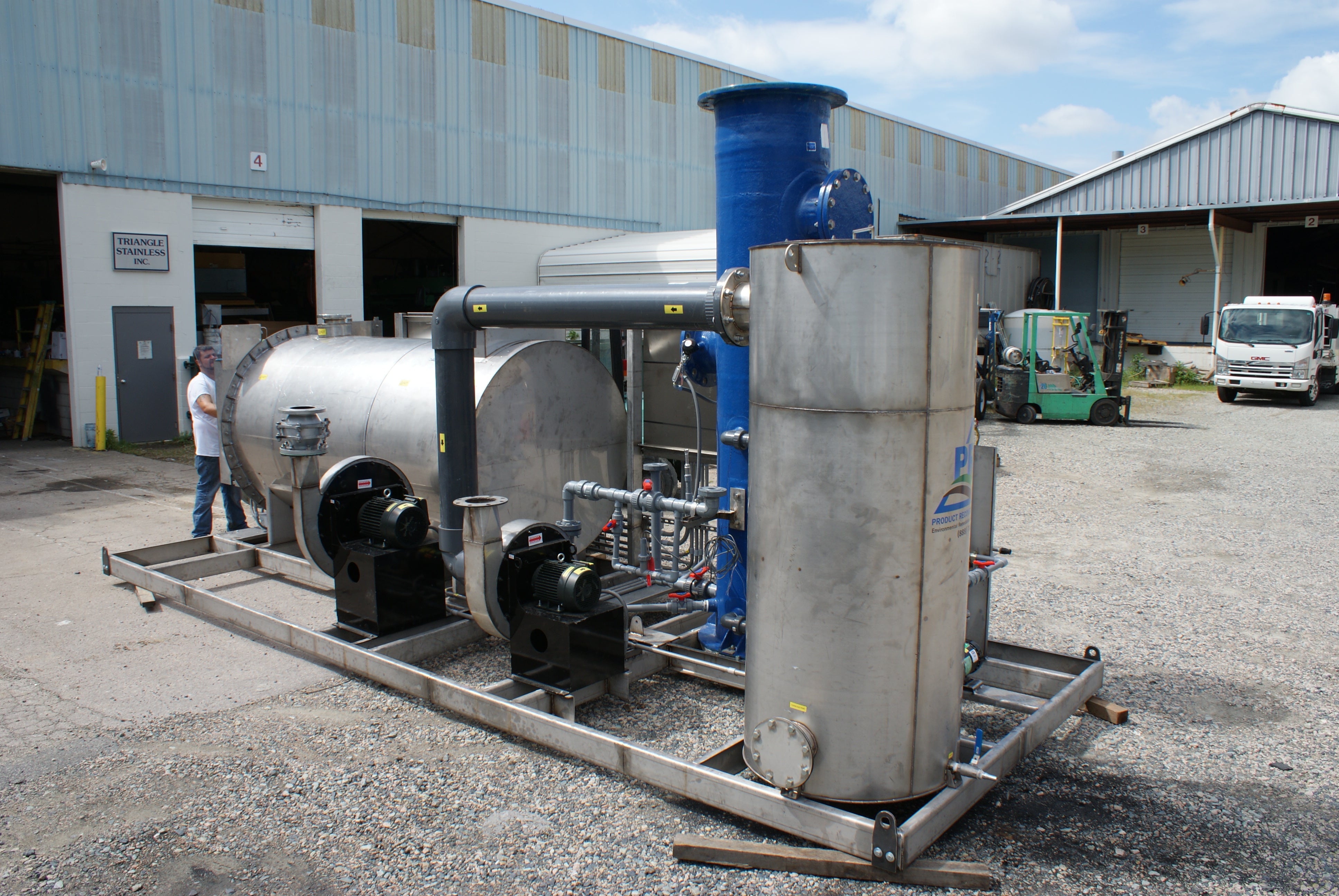

Oxidizer
- 750 CFM Thermal Catalytic Oxidizer includes Catalytic Oxidation, Heat Recovery, Quench, Wet Scrubbing and Acid Neutralization
- Hauck PBG2-1000 natural gas burner with automatic burner control. Variable Frequency Drive on damper blower motor.
- 316 SS horizontal combustion chamber
- Johnson Matthey Chlorinated Catalyst Treatment modules, approximately 6 cubic feet for VOC and Chlorinated VOC destruction (99% target destruction). Catalyst modules installed in a AL6XN frame.
- 8” Flanged Inlet/Outlet
- UL & NFPA compliant natural gas train with double blocking gas valves.
- Twin City Fan & Blower Model TBSN-20N6 fan style pressure blower with 7.5HP, 480V 3Ph, Premium Efficiency, TEFC motor. Blower is of corrosion resistant 304SS construction with 304SS internals and Teflon seal.
- AL6XN Quench Tower to cool process gas from oxidizer
- Hastelloy C276 water spray nozzles
- Fiberglass packed tower with induced draft for acid scrubbing
- Chemical Feed pump for caustic injection (Sodium Hydroxide). Bypass loop included.
- Walchem PH sensor and controller with 4-20ma output to PLC
- 1HP, AMT Model 553B-98 transfer pump for scrubber tower water feed. SS and Viton shaft seals with stainless steel pump body. VFD controlled for flow adjustment.
- Twin City Fan & Blower Model TBNS-14W6 induced draft blower with 3HP, 480V, 3PH, Premium Efficiency, TEFC motor. Plumbed to scrubber tower outlet. Blower is corrosion resistant 304SS construction with drain
- MS-300 304 SS Moisture Separator
- Requires natural gas connection for oxidizer gas train—required inlet pressure 2-3 psi at 1000scfh with natural gas (1million BTU burner)
- Oxidizer and Scrubber system panels are of 304SS construction
