STAINLESS STEEL PRM MULTI-JET WATER METERS- TOTALIZING AND RATE INDICATION

Save 64%
$ 250.00
$ 89.99

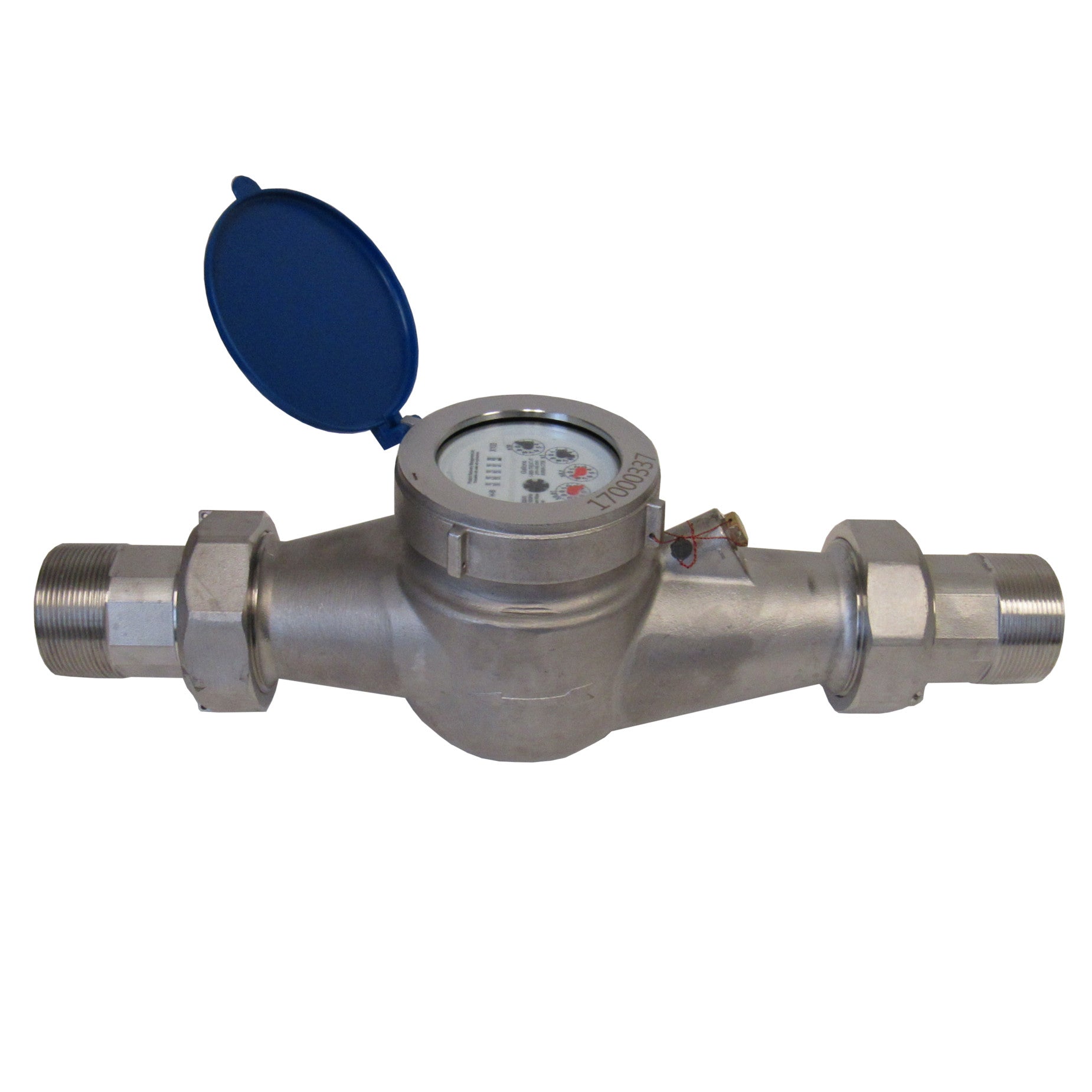

STAINLESS STEEL PRM MULTI-JET WATER METERS

Water Meters for Totalization and Rate Indication

Stainless steel offers additional corrosion resistance when totalizing liquids with
corrosive or chemical elements. These water meters are designed for long service life and maintenance-free operation, built for harsh conditions with hydrocarbon resistant Viton® seals.


Features:
Sealed Dry Dial for Clear Readings
Internal Strainer to Protect Meter from Particulate Damage

Specifications:
Class: B
Accuracy: Transitional Flow: ± 5%
Nominal Flow: ± 2%
Maximum Water Temperature: 104°F
Maximum Water Pressure: 150 psi
Mounting Orientation: Horizontal

Materials:
Body: 304 Stainless Steel, polyethylene
Couplings: 304 Stainless Steel
Measuring Chamber: Polyethylene
Seals: Silicone Rubber or Optional Viton

Mounting Orientation: Horizontal

Not NSF Certified



 PRM Part # Size Length (in.)
(w/NPTadapters)
Height (in.) Weight Nominal Flow (GPM)
WM050SSVX 1/2' 10.5 4.75 3 lbs. 1-10
WM075SSVX 3/4' 12 4.75 3.5 lbs. 1-20
WM100SSVX 1' 14.5 4.75 5.5 lbs. 2-30
WM125SSVX 1-1/4' 15.5 5 6 lbs. 3-50
WM200SSVX 2' NPT 18 6.5 15lbs. 5-125
WM200FLSSVX 2' Flange 18 6.5 25 lbs. 5-125

**************************************************************************************************************************************************



  We are required to charge sales tax in FL, NC, and NY.
