DSA05 SPDs are single-phase surge protective devices designed for residential and light commercial systems operating on 120 VAC, 2-wire configurations. They are rated for both indoor and outdoor installation, providing flexible deployment at the service entrance to deliver whole-home or whole-building surge protection. These devices are intended to protect the electrical infrastructure and major household appliances from high-energy surges, though they are not designed for the protection of sensitive electronic equipment at the point of use.
SDSA SPDs are UL Listed, ensuring compliance with recognized safety and performance standards, and feature a compact design that allows for either panel-integrated or adjacent mounting.
Features:
- Securing up to 36kA surge current per phase.
- Compact design for installation flexibility
- Rated for outdoor installations
- Status indication light
- 36kA surge current rating
Specifications:
| Voltage Rating | 120 V AC |
| MCOV | 150 V |
| SCCR | 100 kA |
| Surge Current | 36 kA |
| Nominal Discharge Current | 10 kA |
| Number of Phases | 1 phase |
| Wiring Configuration | 2-wire |
| Connection | Wire |
| Local Signalling | Status LED green normal operation |
| Cable length | 24 in (609.6 mm) |

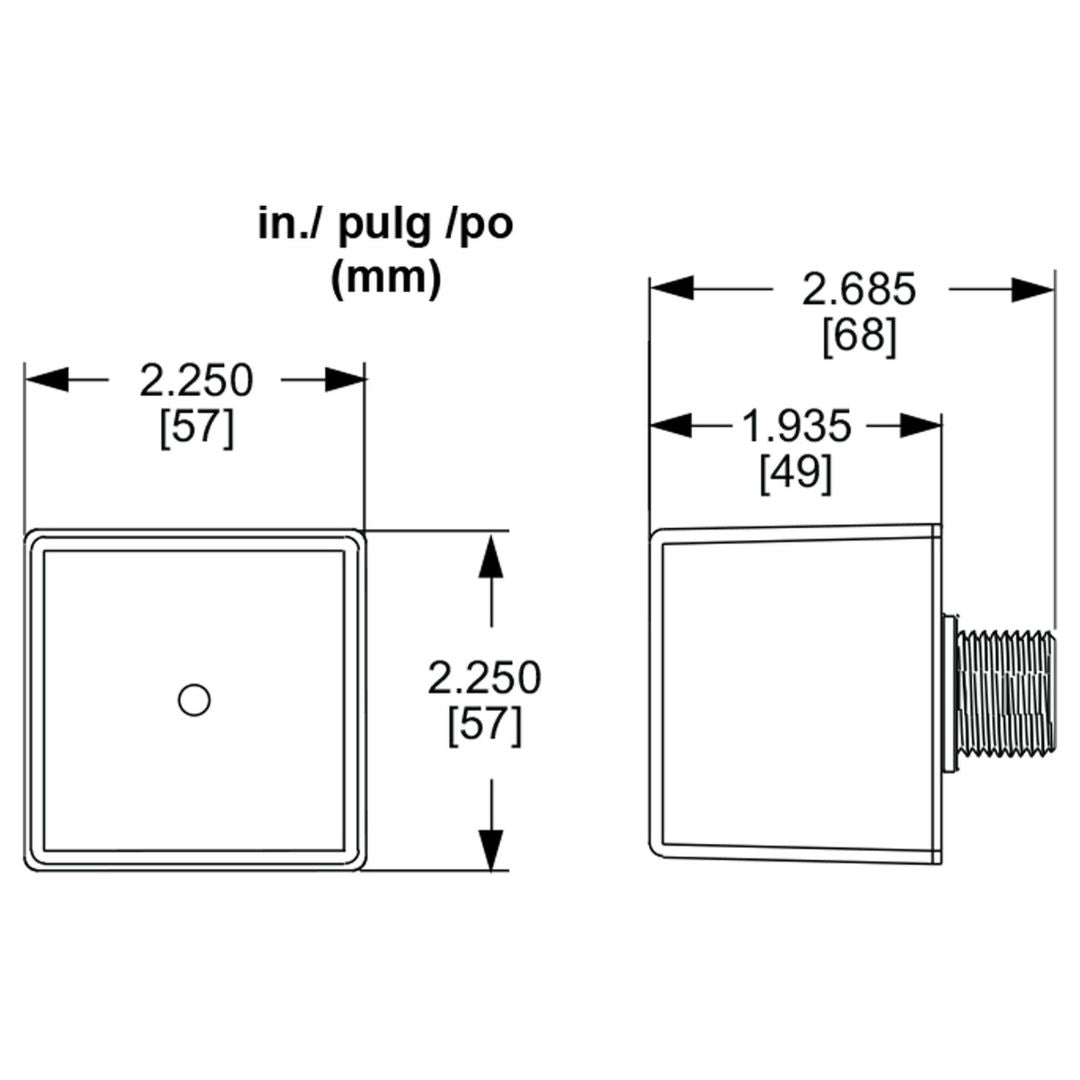

| Height | 2.25 in (57.15 mm) |
| Width | 2.25 in (57.15 mm) |
| Depth | 1.935 in (49.149 mm) |
| Enclosure Rating | NEMA 4X |
| Enclosure Material | Black Plastic |
| Standards | CSA C22.2 No 8 UL 1449:ed. 4 |
