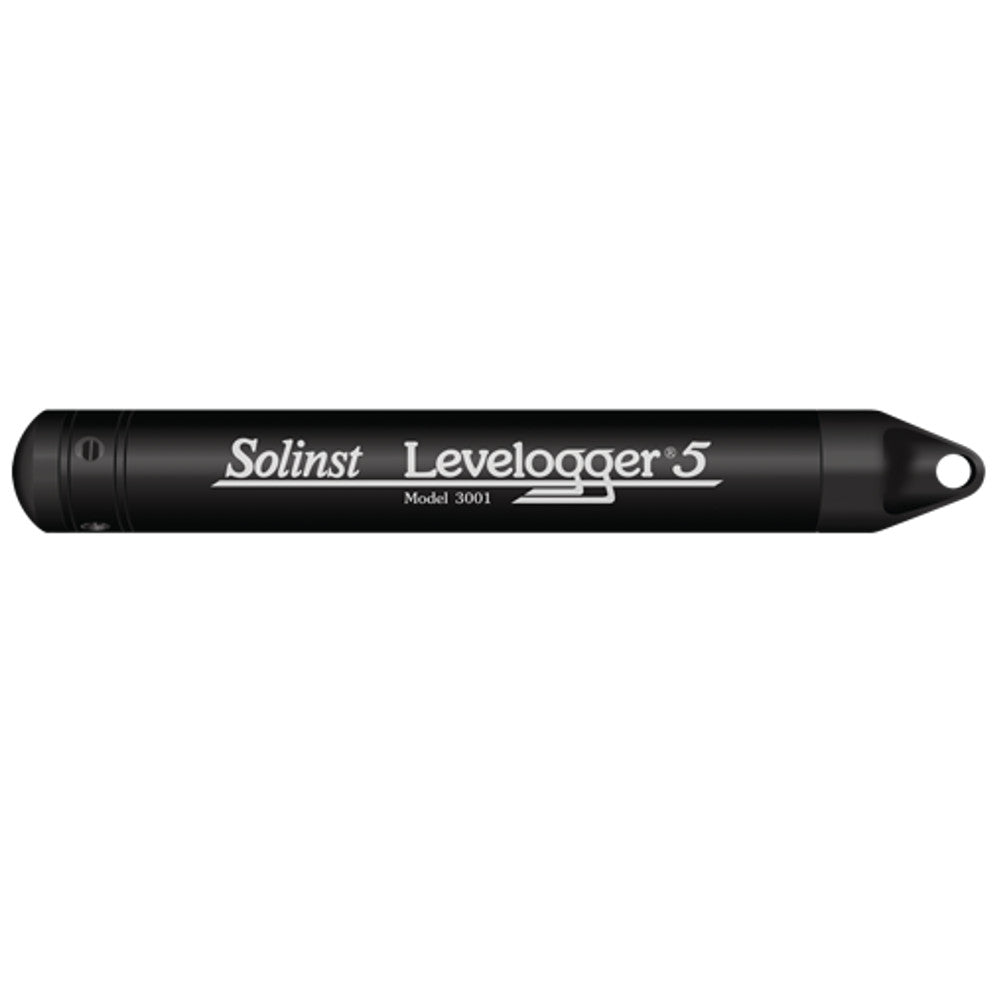

SOLINST 3001 Levelogger 5 Datalogger
The Levelogger 5 records highly accurate groundwater and surface water level and temperature measurements. It combines a pressure sensor, temperature detector, 10-year lithium battery, and datalogger, sealed within a 22 mm x 160 mm (7/8" x 6.3") stainless steel housing with a corrosion-resistant coating baked-on using polymerization technology.
Guide to Levelogger Deployment and Communication
The Levelogger 5 measures absolute pressure using a Hastelloy® pressure sensor, offering high resolution and an accuracy of 0.05% FS. Readings are stable in extreme pressure and temperature conditions. The Hastelloy sensor can withstand 2 times over-pressure without permanent damage. Combined with the durable coating inside and out, the Levelogger 5 has high corrosion and abrasion resistance in harsh environments.
Levelogger 5 Features
• Highly stable communication: single-eye optical interface—easier to clean, more scratch resistant
• Large memory: 150,000 sets of data
• Strong, robust design: double o-ring seals for increased leakage protection
• High thermistor sensitivity: upgraded platinum RTD
• Superior protection in harsh environments: corrosion and abrasion resistant coating—inside and out
• Intuitive Levelogger Software: Diagnostic Utility for more proactive user “self-tests”
The Levelogger 5 features a smooth, single-eye optical interface, which allows for easy cleaning and more reliable, faster communication. Using a Solinst USB device, including the Field Reader 5, and Levelogger PC Software, programming and data downloading speeds are 57,600 bps.
Applications
• Aquifer characterization: pumping tests, slug tests, etc.
• Watershed, drainage basin and recharge monitoring
• Stream gauging, lake and reservoir management
• Harbor and tidal fluctuation measurement
• Wetlands and stormwater run-off monitoring
• Water supply and tank level measurement
• Mine water and landfill leachate management
• Long-term water level monitoring in wells, surface water bodies and seawater environments
Levelogger 5 Accessories
3001 Desktop Reader 5 USB Assembly
3001/3500 Biofoul Screen for the Levelogger/AquaVent
3001 Cases for Levelogger (set of 10)
3001 Alignment Pins for the Levelogger (set of 10)
3001 Sealed Artesian Connector Assembly for Levelogger
3001 Direct Read Cable Surface Caps (set of 10)
3001 Black Top Caps for the Levelogger (set of 10)
Conductivity Calibration Solution
NOTE: These go into production when ordered, so usually there is a 1-2 week lead time on meters.
