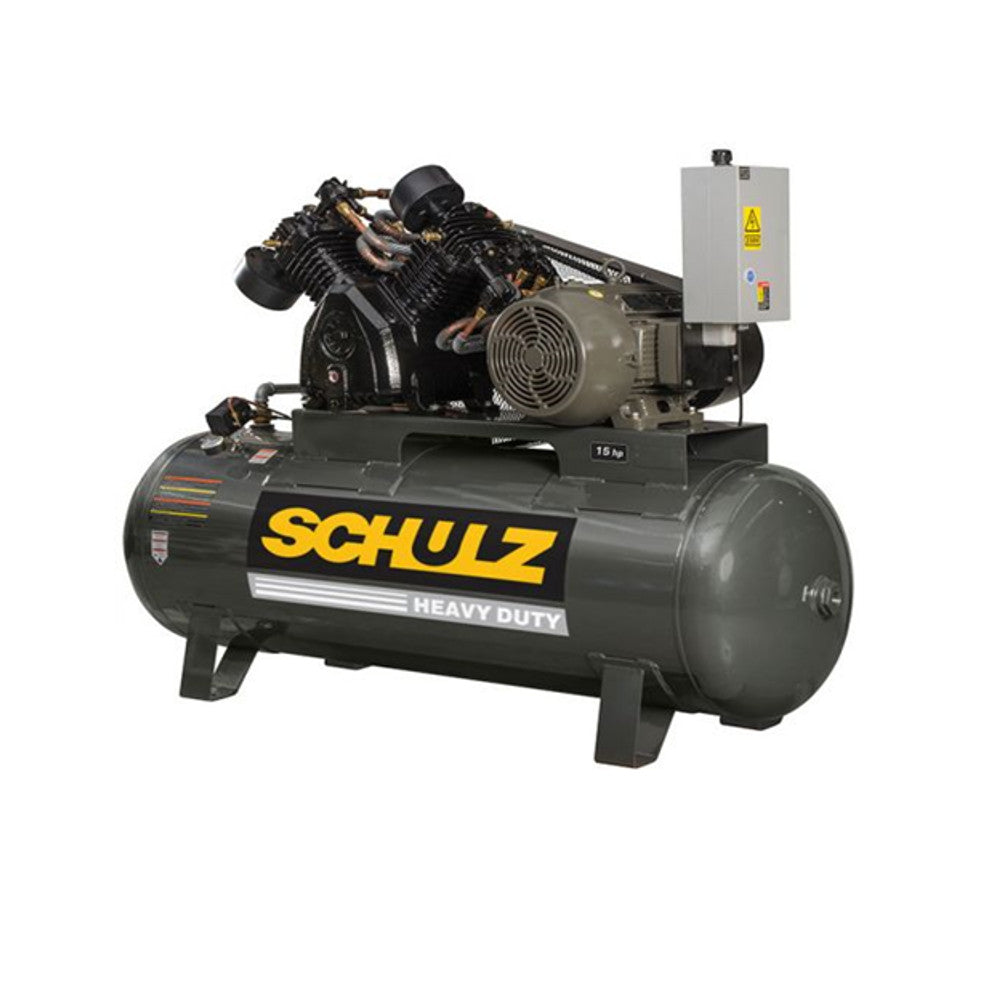

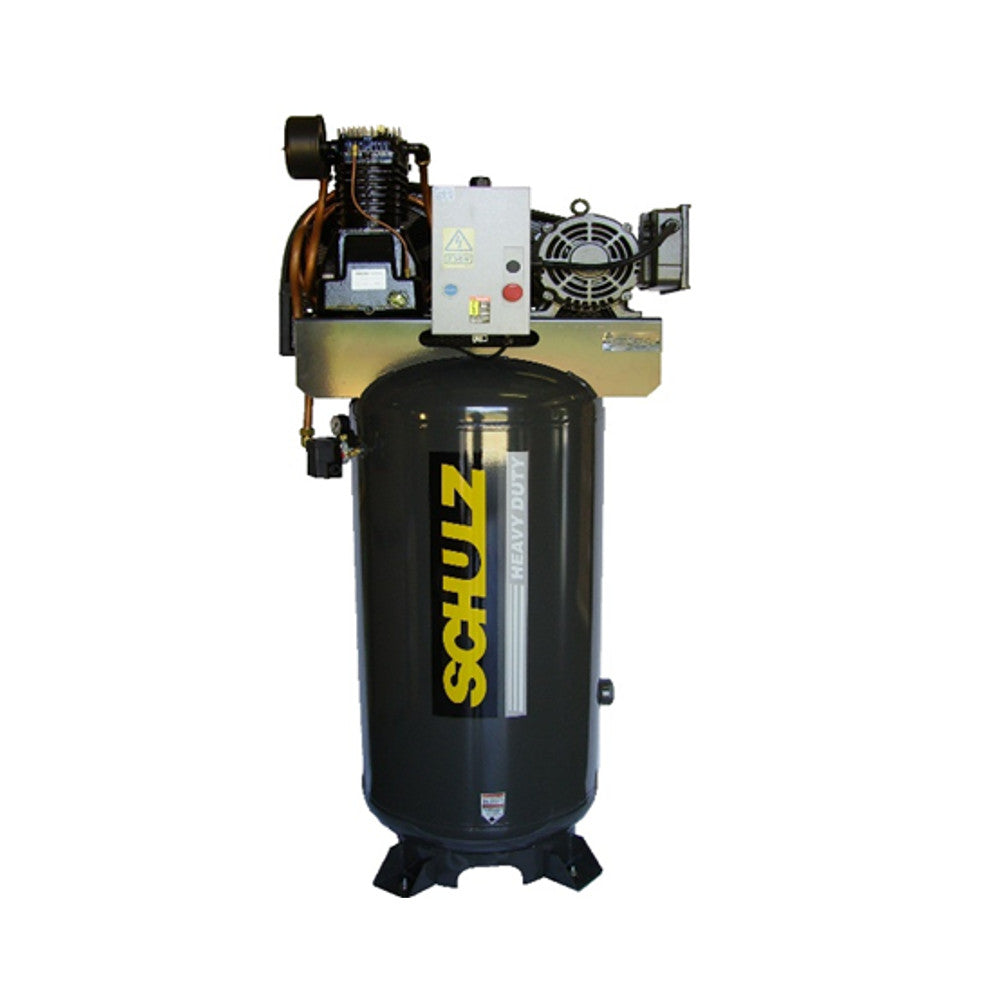

Schulz Compressors L Series Two Stage Piston Air Compressor
Cast iron construction with low RPM two piston in-line design.
The Schulz Compressors L Series Two Stage Piston Air Compressor includes automatic start/stop pressure switch operation and powder coated ASME air receivers. The piston follows an automotive design for lower weight at a higher performance, and moving parts are designed for low friction. The compressor pumps are cast iron, and the Swedish steel valves hold a longer life expectancy. Deeper cylinder fins maximize heat dissipation for lower running temperatures, and the crankshaft is counterbalanced for smoother running. All of the unit's components are CNC machined. The unit includes an enclosed metal belt guard, balanced drive pulleys, oversized check valves, ASME safety relief valves, pressure gauge, and a manual condensate drain.
Features:
- Tank mount
- 80 or 120 gal tank
- Vertical or horizontal tank orientation
- 5 to 20 HP
- 20 to 80 CFM displacement
- 175 PSI pressure rating
- 230/1/60 or 208-230/460/3/60 voltage options
| Item # | Model |
HP/PH | Motor/ Engine |
Pump | CFM* | Tank Style | gal | lbs. |
| 932.9334-0 | 580VL20X-1 | 5/1 | 2P | MSL-20MAX | 15.6 | Vertical | 80 | 571 |
| 932.9361-0 | 580VL30X-1 | 5/1 | 4P | MSL-30MAX | 17 | Vertical | 80 | 615 |
| 932.9362-0 | 580VL30X-3 | 5/3 | 4P | MSL-30MAX | 17 | Vertical | 80 | 615 |
| 932.9335-0 | 7580VL30X-1 | 7.5/1 | 2P | MSL-30MAX | 21.6 | Vertical | 80 | 621 |
| 932.9322-0 | 7580VL30X-3 | 7.5/3 | 2P | MSL-30MAX | 21.6 | Vertical | 80 | 621 |
| 932.9327-0 | 10120HL40X-3 | 10/3 | 2P | MSL-40MAX | 28.4 | Horizontal | 120 | 867 |
| 934.7452-0 | 20120HLV80BR | 20/3 | 2P | MSLV-80BR | 63 | Horizontal | 120 | 1182 |
*at 175 PSI
