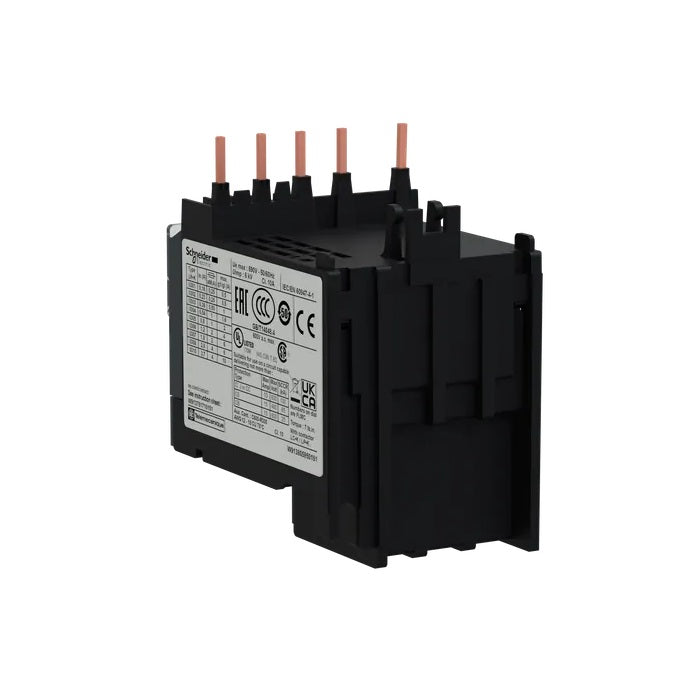

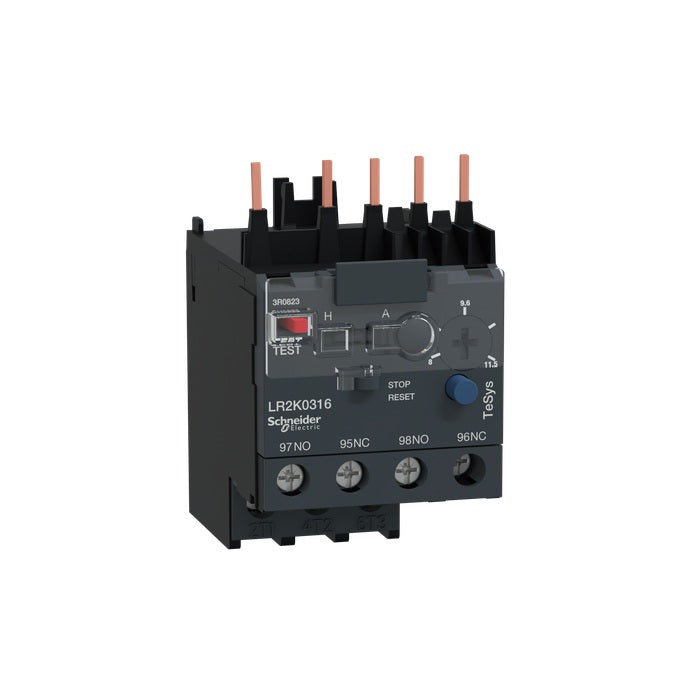

Schneider LR2K0316 Thermal Overload Relay, TeSys K, 8 to 11.5 Amp
LR2K0316 is a TeSys LRK thermal overload relay from Schneider Electric designed to be used with TeSys K contactors to make a motor starter. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 8 to 11.5 amperes. This trip current rating is calibrated per Class 10A. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Mounting on DIN rail, separated from the contactor, with use of a terminal block LA7K0064 (to be ordered separately). Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC).
Specifications
| MPN | LR2K0316 |
| Range | TeSys |
| Relay Application | Motor protection |
| Product Compatibility | LC1K LC7K LP4K LP1K |
| Network Type | AC DC |
| Thermal Overload Class | Class 10A IEC 60947-4-1 |
| Thermal Protection Adjustment Range | 8...11.5 A |
| [Ui] Rated Insulation Voltage | Power circuit 690 V BS 4941 Power circuit 690 V IEC 60947 Power circuit 750 V VDE 0110 group C Power circuit 600 V CSA C22.2 No 14 |
| Network Frequency | <= 400 Hz |
| Mounting Support | Under contactor Plate, with specific accessories Rail, with specific accessories |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| [Ith] Conventional Free Air Thermal Current | 6 A signaling circuit |
| [Ue] Rated Operational Voltage | <= 690 V power circuit 690 V AC AC-15 signaling circuit 250 V DC DC-13 signaling circuit |
| Associated Fuse Rating | 6 A gG for signaling circuit conforming to VDE 0660 6 A gG for signaling circuit conforming to IEC 60947 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV |
| Power Dissipation per Pole | 2 W |
| Phase Failure Sensitivity | Yes IEC 60947-4-1 |
| Local Signaling | Trip indicator Yellow |
| Control Type | Red push-button trip test function Blue push-button stop and manual reset selector switch manual or automatic reset |
| Connections - Terminals | screw clamp terminals 1 0.002…0.006 in² (1.5…4 mm²)solid screw clamp terminals 2 0.002…0.006 in² (1.5…4 mm²)solid screw clamp terminals 1 0.001…0.006 in² (0.75…4 mm²)flexible without cable end screw clamp terminals 2 0.001…0.006 in² (0.75…4 mm²)flexible without cable end screw clamp terminals 1 0.0005…0.004 in² (0.34…2.5 mm²)flexible with cable end screw clamp terminals 2 0.0005…0.002 in² (0.34…1.5 mm²)flexible with cable end |
| Tightening Torque | 11.5 lbf.in (1.3 N.m) screw clamp terminals Philips No 2 11.5 lbf.in (1.3 N.m) screw clamp terminals flat Ø 6 mm 11.5 lbf.in (1.3 N.m) screw clamp terminals pozidriv No 2 |
Standards
- NF C 63-650
- IEC 60947
- VDE 0660
- BS 4941
Certifications
- UL
- CSA
- UKCA
