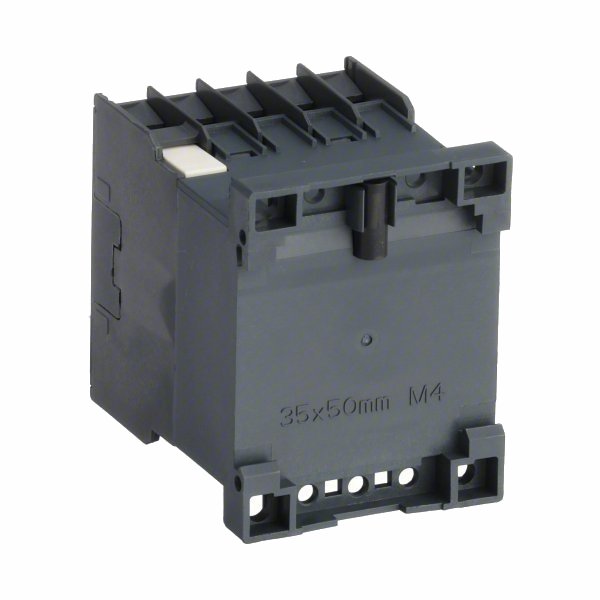

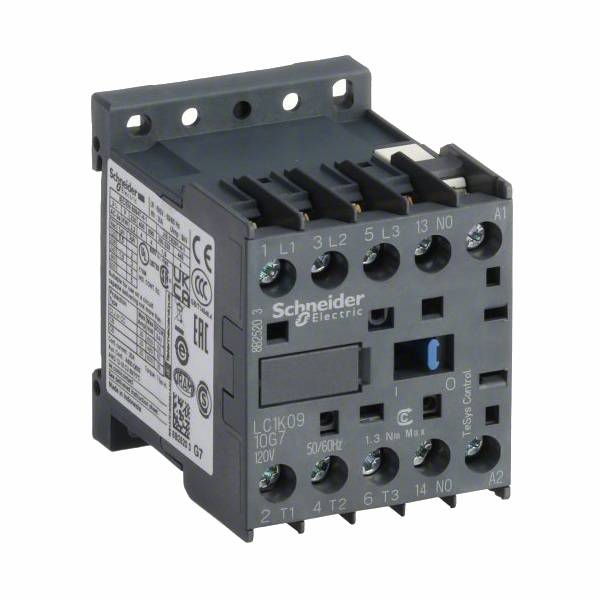

Schneider LC1K0910G7 3NO IEC Contactor, TeSys K, 3 Pole, 9A, 120 V AC, Non-Reversing, Screw Clamp Terminals
TeSys K contactors have been designed for perfect integration into control systems, offering quick setup while maintaining a compact size. Contactors have both horsepower and KW motor rating for international acceptance, and have an extensive line of accessories to make it easy to meet the requirements of most applications. They are UL Listed and CSA, IEC, CCC, and EAC certified.
Specifications
| MPN | LC1K0910G7 |
| Range | TeSys |
| Device Application | Control |
| Contactor Application | Motor control Resistive load |
| Utilization Category | AC-3 AC-3e AC-1 AC-4 |
| Poles Description | 3P |
| Pole Contact Composition | 3 NO |
| [Ue] Rated Operational Voltage | Power circuit <= 690 V AC <= 400 Hz Signaling circuit <= 690 V AC <= 400 Hz |
| [Ie] Rated Operational Current | 9 A (at <140 °F (60 °C)) at <= 440 V AC AC-3 for power circuit 9 A (at <140 °F (60 °C)) at <= 440 V AC AC-3e for power circuit 20 A (at <140 °F (60 °C)) at <= 690 V AC AC-1 for power circuit |
| Control Circuit Type | AC 50/60 Hz |
| [Uc] Control Circuit Voltage | 120 V AC 50/60 Hz |
| Motor Power kW | 2.2 kW 220...230 V AC 50/60 Hz AC-3 4 kW 380...415 V AC 50/60 Hz AC-3 4 kW 440/690 V AC 50/60 Hz AC-3 2.2 kW 220...230 V AC 50/60 Hz AC-3e 4 kW 380...415 V AC 50/60 Hz AC-3e 4 kW 440/690 V AC 50/60 Hz AC-3e 2.2 kW 220...230 V AC 50/60 Hz AC-4 4 kW 380...415 V AC 50/60 Hz AC-4 4 kW 440/690 V AC 50/60 Hz AC-4 |
| Auxiliary Contact Composition | 1 NO |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Overvoltage Category | III |
| [Ith] Conventional Free Air Thermal Current | 20 A (at 140 °F (60 °C)) for power circuit 10 A (at 122 °F (50 °C)) for signaling circuit |
| Irms Rated Making Capacity | 110 A AC for power circuit conforming to IEC 60947 110 A AC for signaling circuit conforming to IEC 60947 |
| Rated Breaking Capacity | 110 A at 220...230 V conforming to IEC 60947 110 A at 380...400 V conforming to IEC 60947 110 A at 415 V conforming to IEC 60947 110 A at 440 V conforming to IEC 60947 80 A at 500 V conforming to IEC 60947 70 A at 660...690 V conforming to IEC 60947 |
| [Icw] Rated Short-time Withstand Current | 90 A 122 °F (50 °C) - 1 s for power circuit 85 A 122 °F (50 °C) - 5 s for power circuit 80 A 122 °F (50 °C) - 10 s for power circuit 60 A 122 °F (50 °C) - 30 s for power circuit 45 A 122 °F (50 °C) - 1 min for power circuit 40 A 122 °F (50 °C) - 3 min for power circuit 20 A 122 °F (50 °C) - >= 15 min for power circuit 80 A - 1 s for signaling circuit 90 A - 500 ms for signaling circuit 110 A - 100 ms for signaling circuit |
| Associated Fuse Rating | 25 A gG at <= 440 V for power circuit 25 A aM for power circuit 10 A gG for signaling circuit conforming to IEC 60947 10 A gG for signaling circuit conforming to VDE 0660 |
| Average Impedance | 3 mOhm - Ith 20 A 50 Hz for power circuit |
| Insulation Resistance | > 10 MOhm for signaling circuit |
| Inrush Power in VA | 30 VA (at 68 °F (20 °C)) |
| Hold-in Power Consumption in VA | 4.5 VA (at 68 °F (20 °C)) |
| Heat Dissipation | 1.3 W |
| Control Circuit Voltage Limits | Operational: 0.8...1.15 Uc (at <122 °F (50 °C)) Drop-out: >= 0.20 Uc (at <122 °F (50 °C)) |
| Connections - Terminals | Screw clamp terminals 1 0.002…0.006 in² (1.5…4 mm²)solid Screw clamp terminals 1 0.001…0.006 in² (0.75…4 mm²)flexible without cable end Screw clamp terminals 1 0.0005…0.004 in² (0.34…2.5 mm²)flexible with cable end Screw clamp terminals 2 0.002…0.006 in² (1.5…4 mm²)solid Screw clamp terminals 2 0.001…0.006 in² (0.75…4 mm²)flexible without cable end Screw clamp terminals 2 0.0005…0.002 in² (0.34…1.5 mm²)flexible with cable end |
| Maximum Operating Rate | 3600 cyc/h |
| Coil Technology | Without built-in suppressor module |
| Auxiliary Contacts Type | Instantaneous 1 NO |
| Signaling Circuit Frequency | <= 400 Hz |
| Minimum Switching Current | 5 mA for signaling circuit |
| Minimum Switching Voltage | 17 V for signaling circuit |
| Operating Time | 10...20 ms coil de-energization and NO opening 10...20 ms coil energization and NO closing |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Non-overlap Distance | 0.02 in (0.5 mm) |
