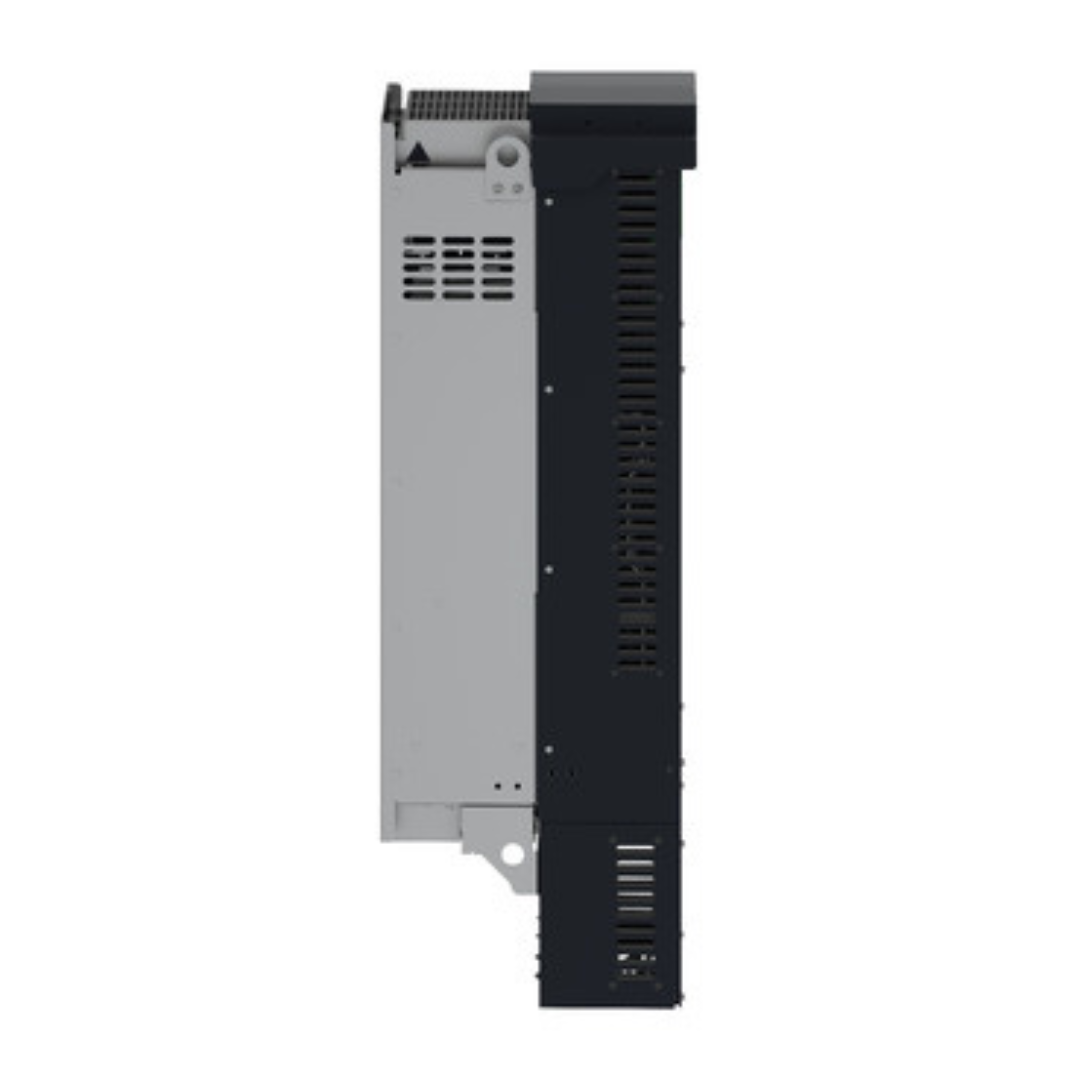

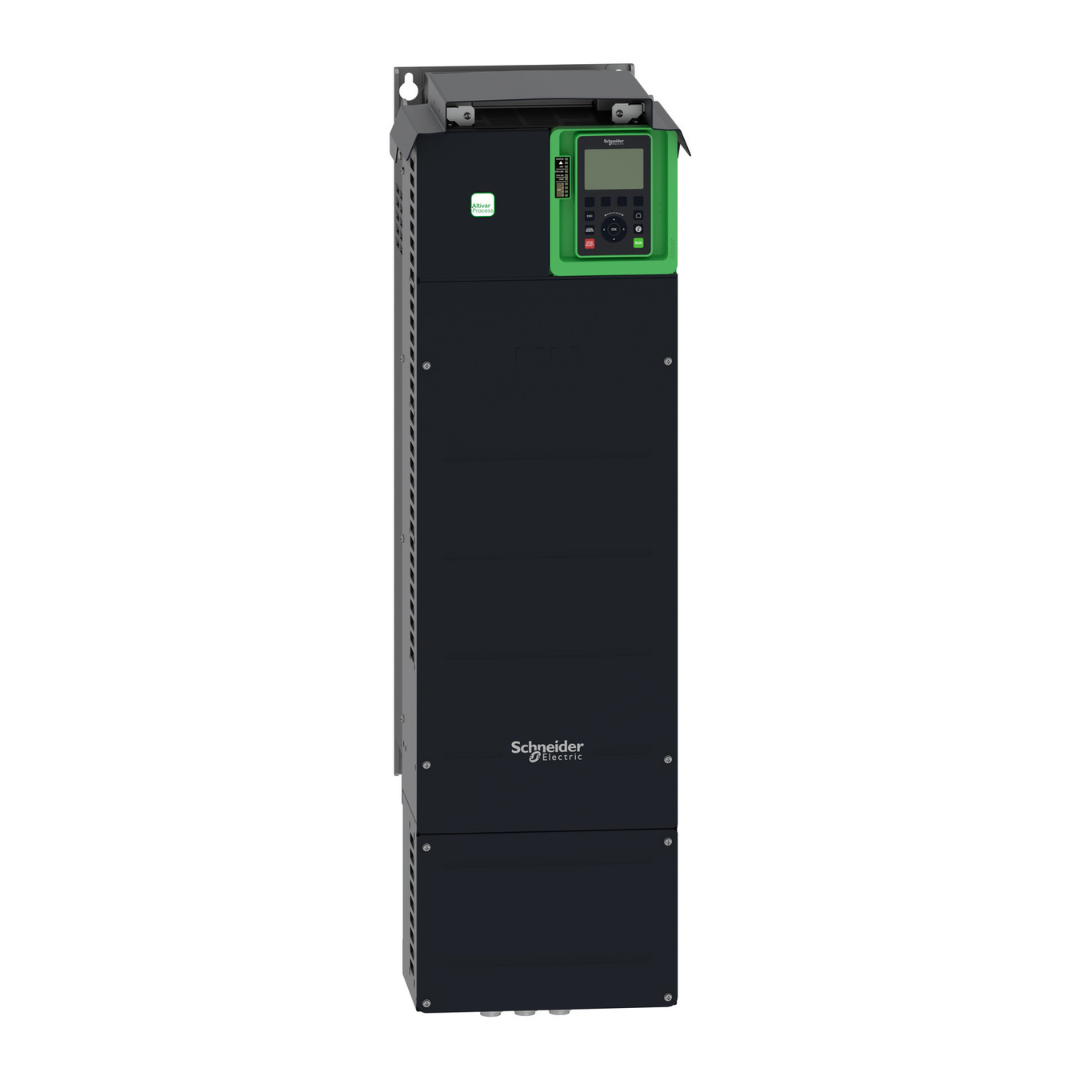

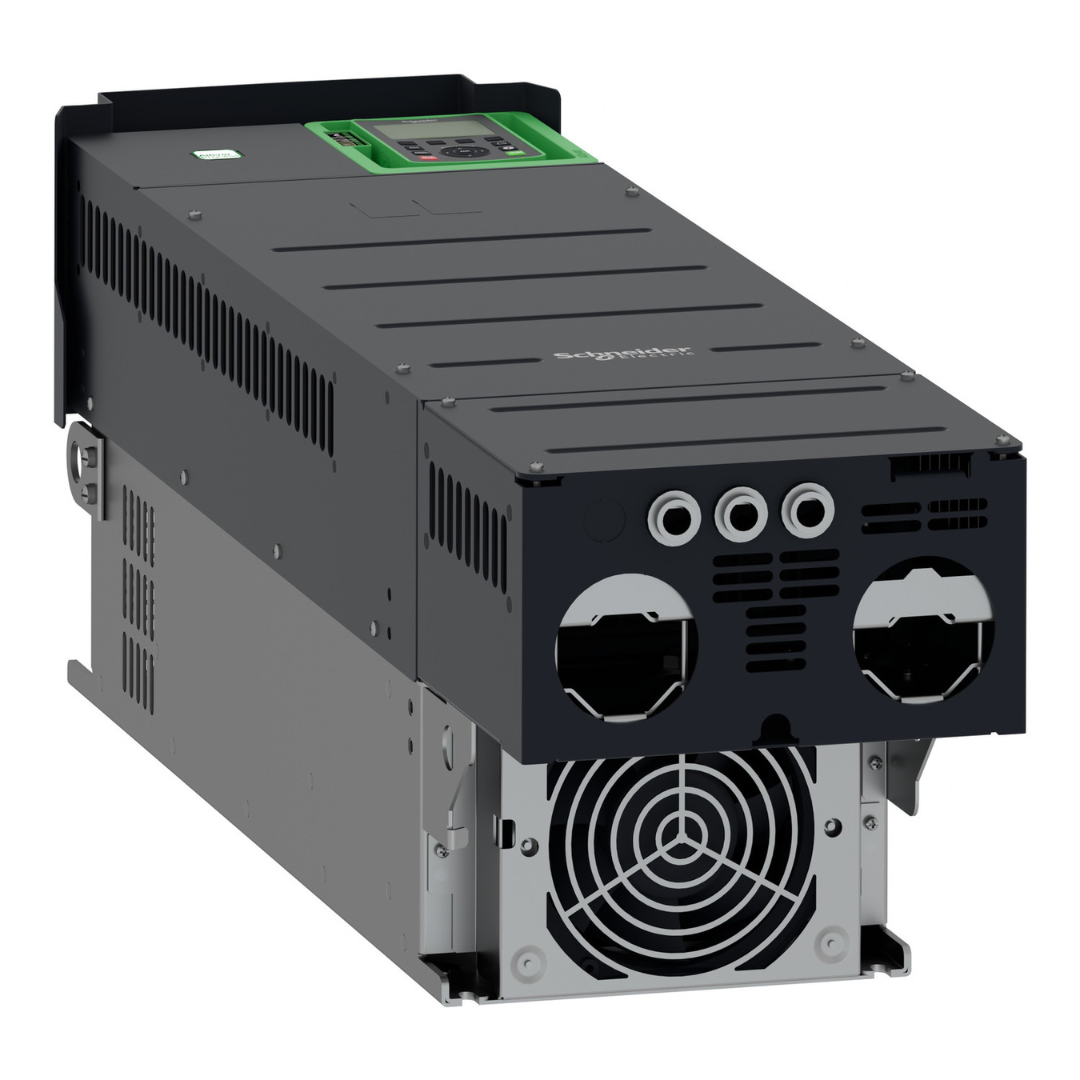

Schneider Electric ATV630D75N4 100 HP Variable Frequency Drive
This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’ operation without additional costs. It is suitable for motors with power rating up to 75kW / 100hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 55kW / 75hp for applications requiring significant overload (up to 150%).
This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications.
Specifications:
- Supply Voltage: 380V-480V
-
Motor power: 75 kW normal duty / 55 kW heavy duty
- Maximum Horse Power Rating: 100 HP normal duty / 75 hp heavy duty
- Communication Port Protocol: Ethernet / Modbus Serial / Modbus TCP
- IP degree of protection: IP21IEC 61800-5-1 / IP21IEC 60529
- Degree of protection: UL type 1 UL 508C
- Speed drive output frequency: 0.1-500 Hz
- Nominal switching frequency: 2.5 kHz
- Safety function STO (safe torque off): SIL 3
- Discrete Input Logic: 16 preset speeds
-
Cooling: Forced Convection
