Features:
SVE Capabilities: 700 CFM @ 11.6" Hg
AS Capabilities: 75 CFM @ 20 PSI
System Rating: 120/230 V, 3 phase,
200 Amp, UL Listed System
Interior of Process room rated for Class 1, Division 2 Hazardous Locations
Controls:
NEMA 4/12 control panel
PLC Controller with wireless connectivity and remote login
Interface with full SCADA remote system
control and data and event logging

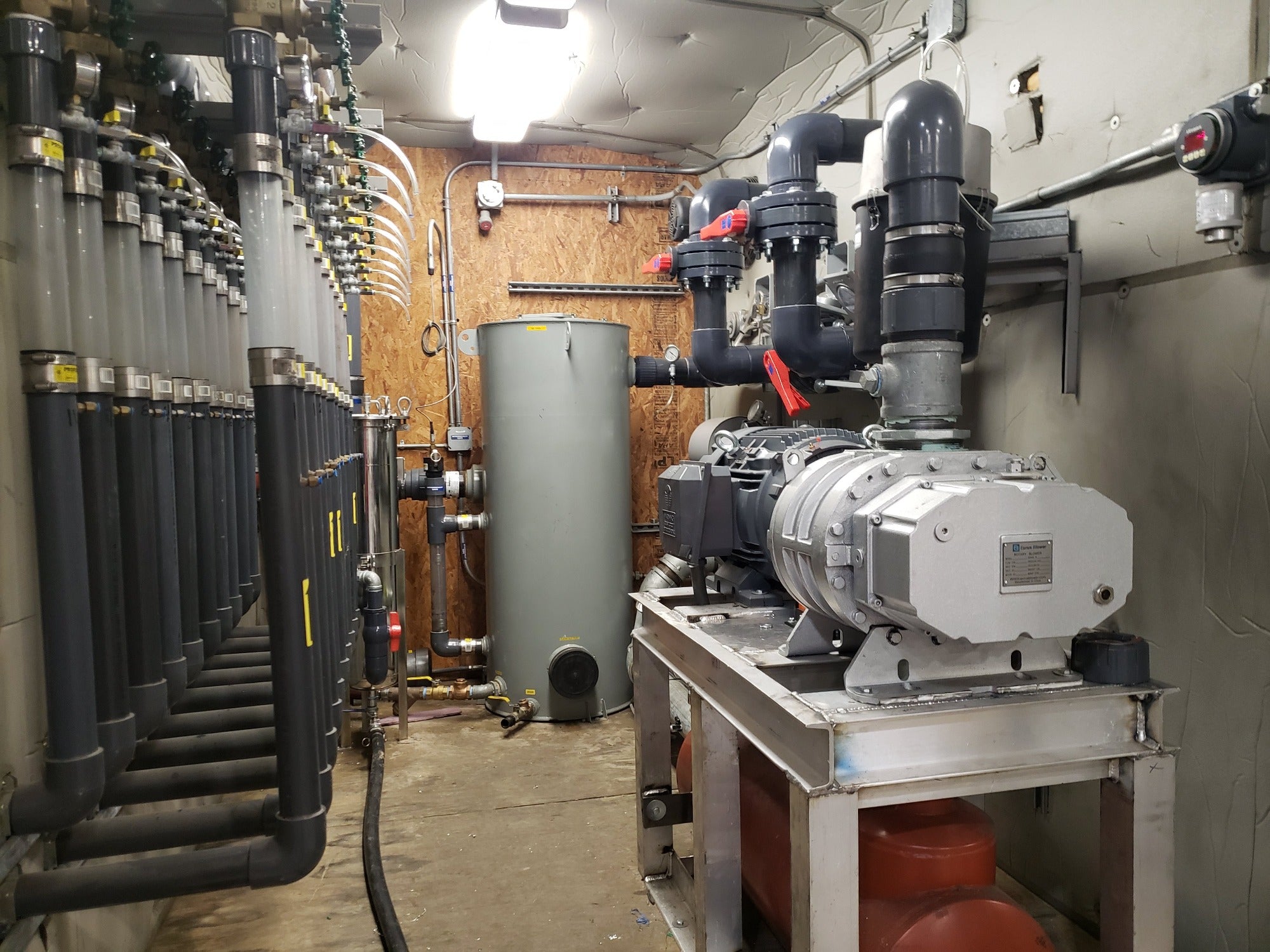

SVE Package
Eurus ZZ6M Rotary Lobe Vacuum Blower, Blower package mounted on steel base frame with discharge silencer
SVE Manifold includes 6 - 2" SVE legs
Carbon by-pass manifold so blower can pull through carbons, eliminates the need for heat exchanger
PRM model HP-200 liquid phase carbon vessel inline before final discharge through side of trailer
Air Sparge System
Busch 1252AP Rotary Claw Compressor rated for 75 CFM @ 20 PSI
Integrated Inlet Filter Silencer
Heat Exchanger plumbed inline
6 - 1" sparge legs, each with check valves, pressure gauges, rotameter
Deep Air Sparge System
(2) Schulz 10HP tandem oilless compressors
Rated for up to 63 CFM @ 45 psi
Includes integral air cooled aftercooler
Deep Air Sparge Manifold includes 5 - 3/4" sparge legs, each with check valves, pressure gauges, rotameter
Carbon Units
VP-1000 Vapor Phase Carbon Vessel

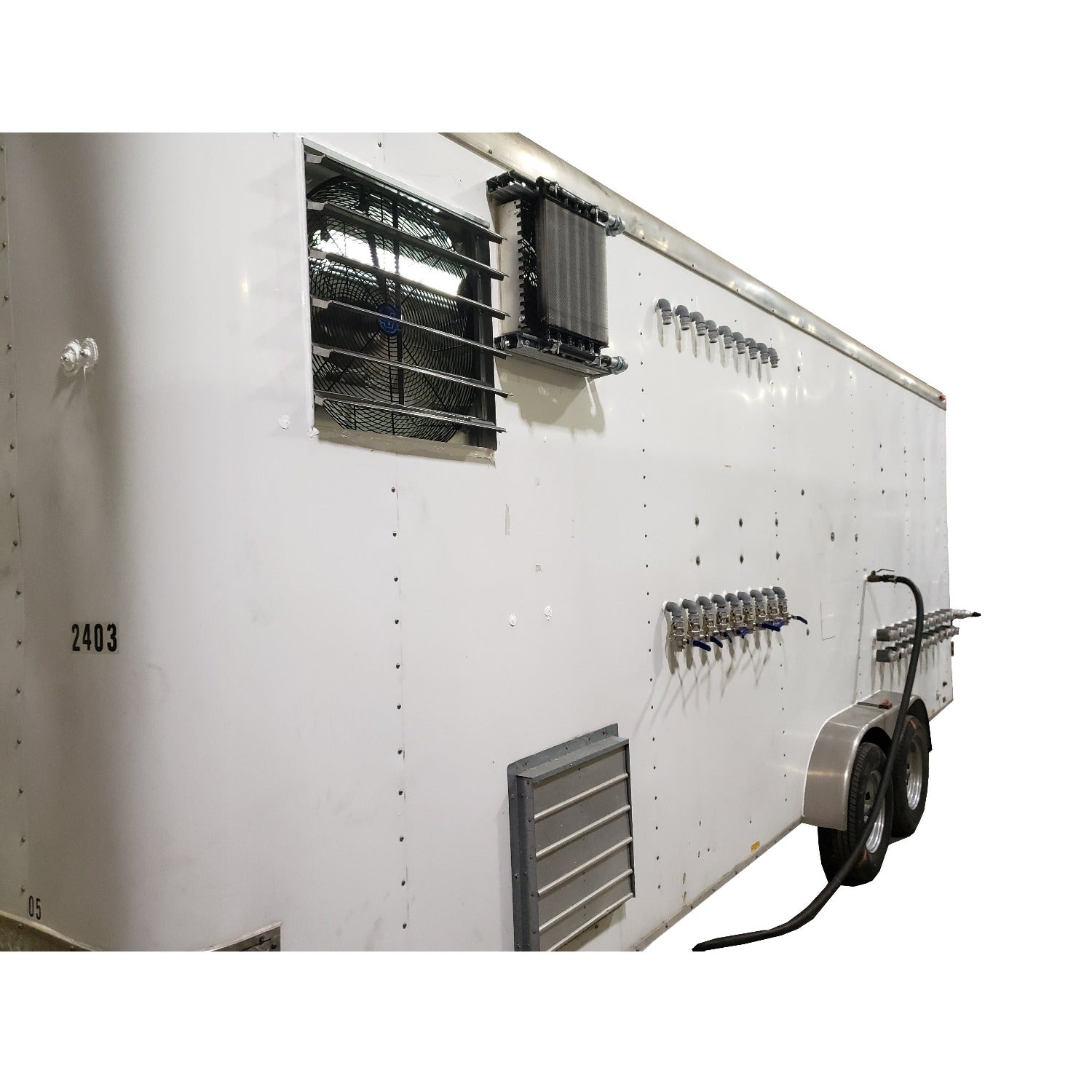

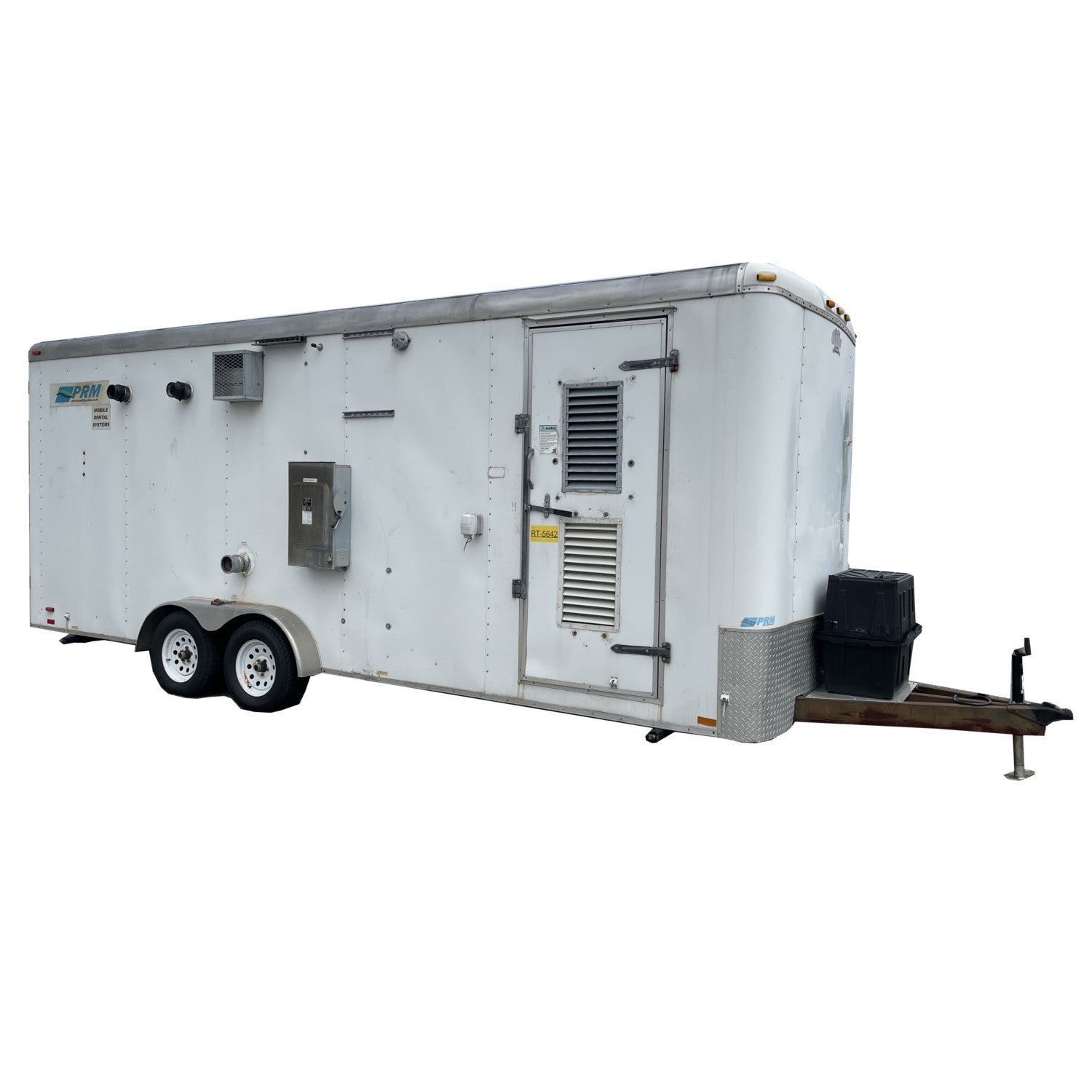

System Enclosure
8’x22’ Tandem Axle Enclosed Trailer
Double Rear Doors, panels on nose of trailer or enclosed in partitioned room
