Home RT-5235 Rental AS/SVE System, 8 X 16 Trailer
AS/SVE System, 8 X 16 Trailer
RT-5235 Rental AS/SVE System, 8 X 16 Trailer
← View All Treatment & Rental Systems

RT-5235 Rental AS/SVE System, 8 X 16 Trailer

SKU: RT-5235
Regular price $ 62,500.00
The quantity you have selected may exceed the current stock for this item. Please contact us directly to ensure that we have enough inventory in-house to fulfill your entire order.

Resources

Please call your PRM Sales Representative before making a purchase of these systems. Lead times are subject to availability and build times. Displayed prices are generally for refurbished or lease systems unless marked and identified as new.

Buyer is responsible for shipping and startup costs which can be given as a formal quote upon request.

Lease Pricing

3 Month Lease 6 Month Lease 12 Month Lease
$5,200/mo $4,800/mo $4,600/mo
← View All Treatment & Rental Systems
  • Description
  • Warranty
  • Shipping and Delivery
  • Exchanges
  • Customer Review

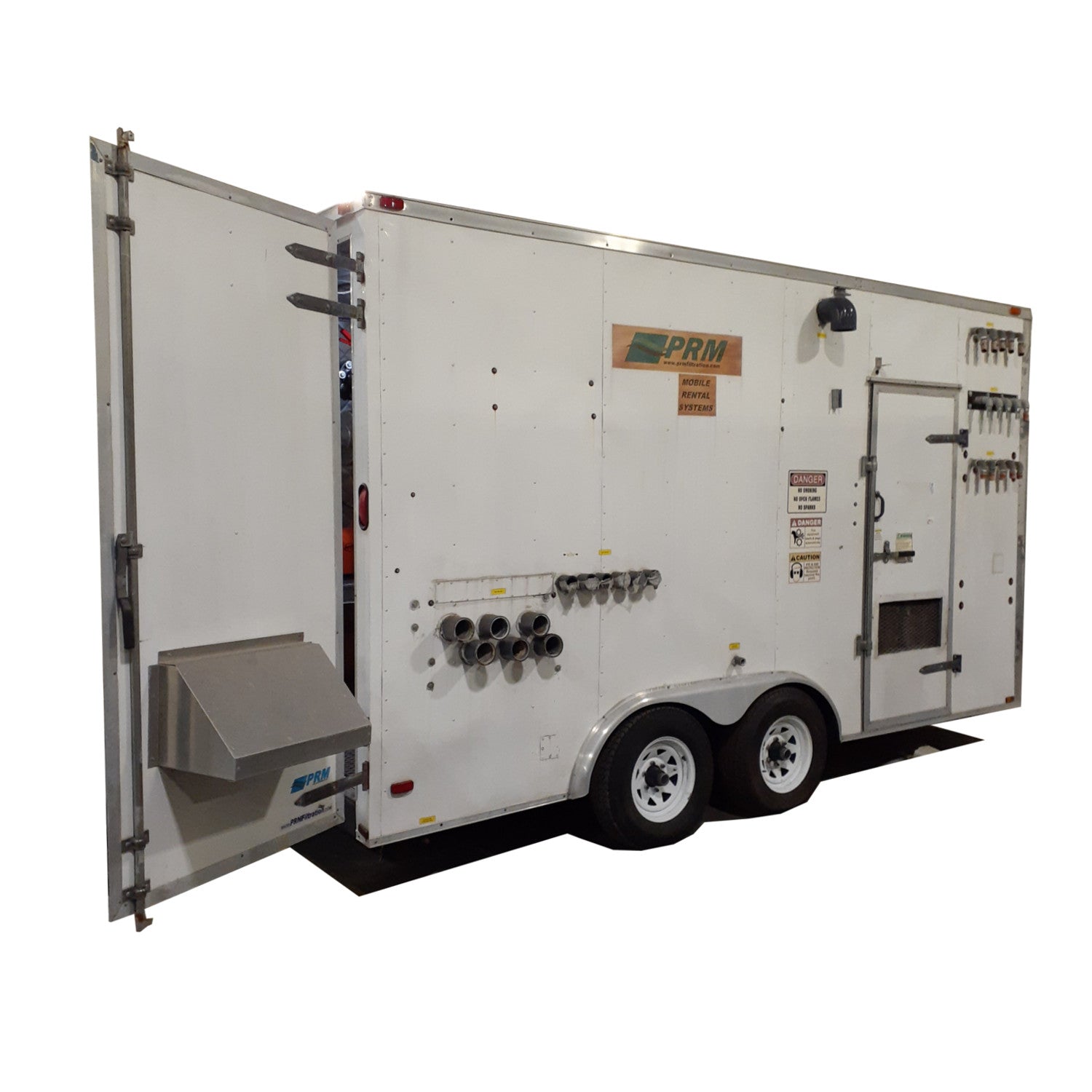

SVE and Air Sparge Extraction System - 8' x 16' enclosed trailer

RT-5235 Datasheet

SVE Capabilities:

  • MB-4506 Rotary Lobe Vacuum Blower
    182 SCFM @ 193” WC
  • 20 HP 230V 3ph TEFC motor

Air Sparge Capabilities:

  • DLR-301 Rotary Claw Compressor
    138 CFM @ 22 psig
  • 20 HP 230V 3ph TEFC motor
  • (5) 1” Sparge Legs with Rotameters

Controls:

  • NEMA 4/12 UL Listed 3rd Party Certified Control Panel
  • PLC Controller with wireless connectivity and remote login
  • SCADA full remote system control with data and event logging

System Rating:

  • 120/230V, 3 phase, 200 Amps

VP-500 Vapor Phase Carbon Vessels connect to carbon bypass manifold

HP-90 Liquid Phase Carbon Vessel inline before final discharge on side of trailer

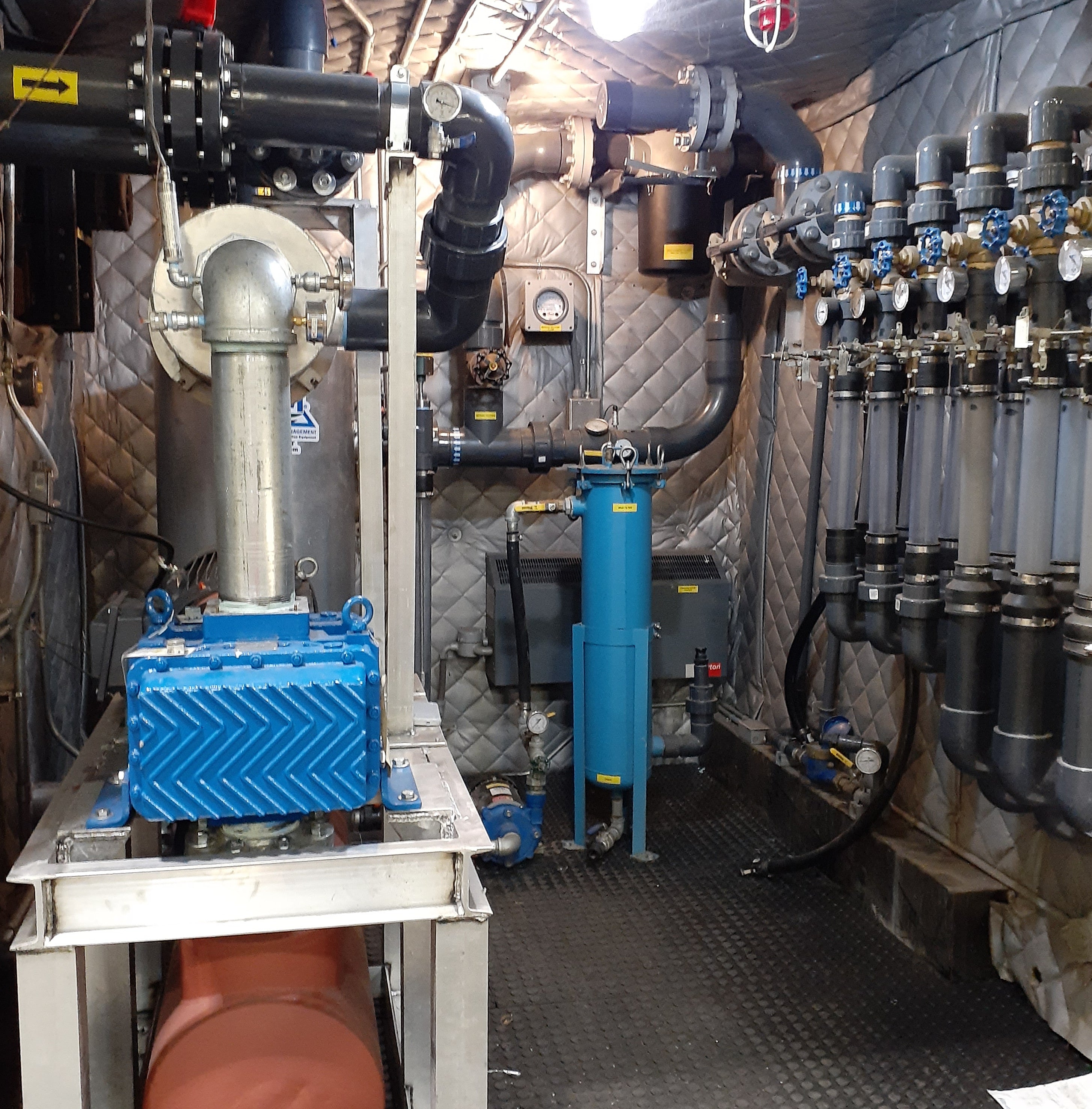

Interior of Process room rated for Class 1,
Division 2 Hazardous Location
