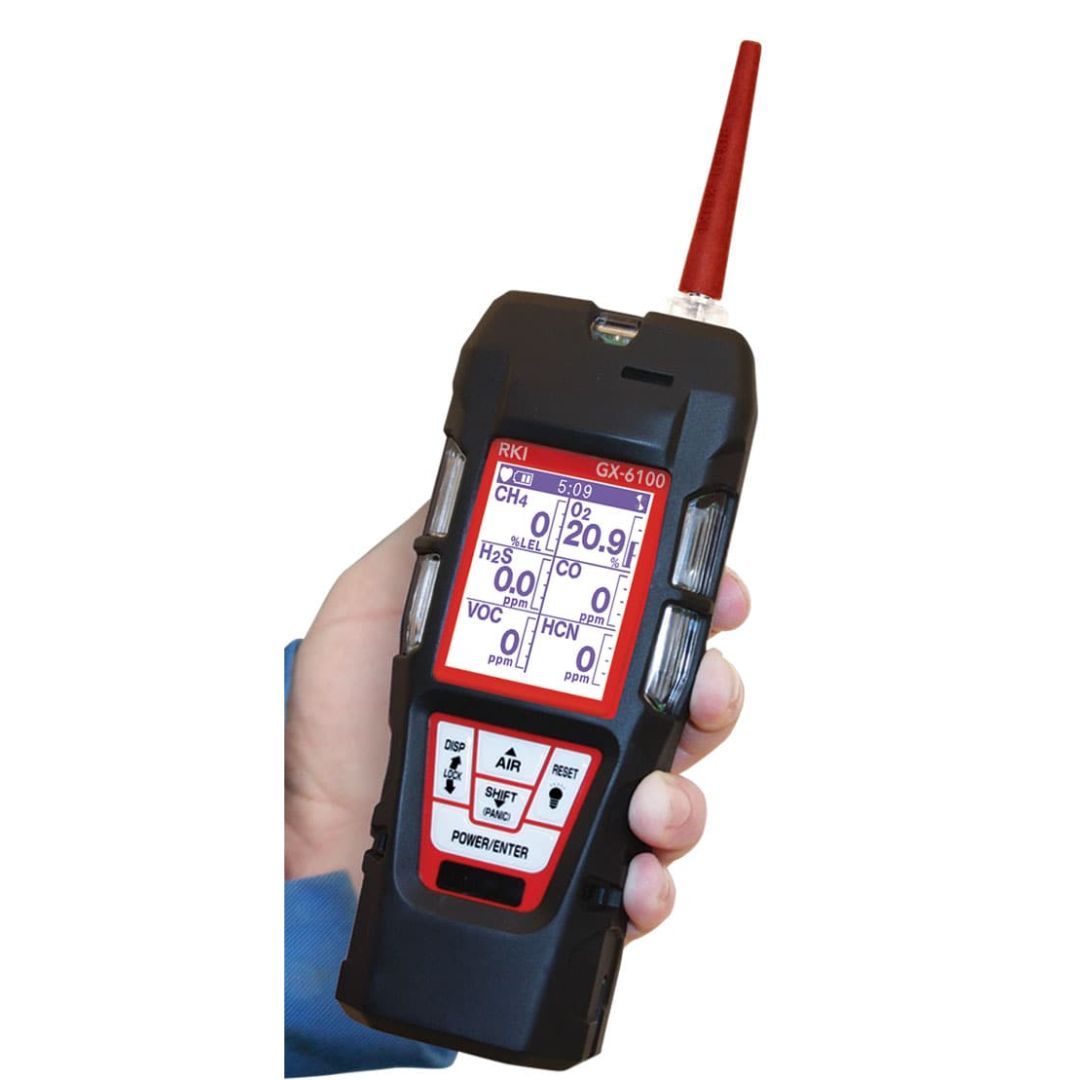

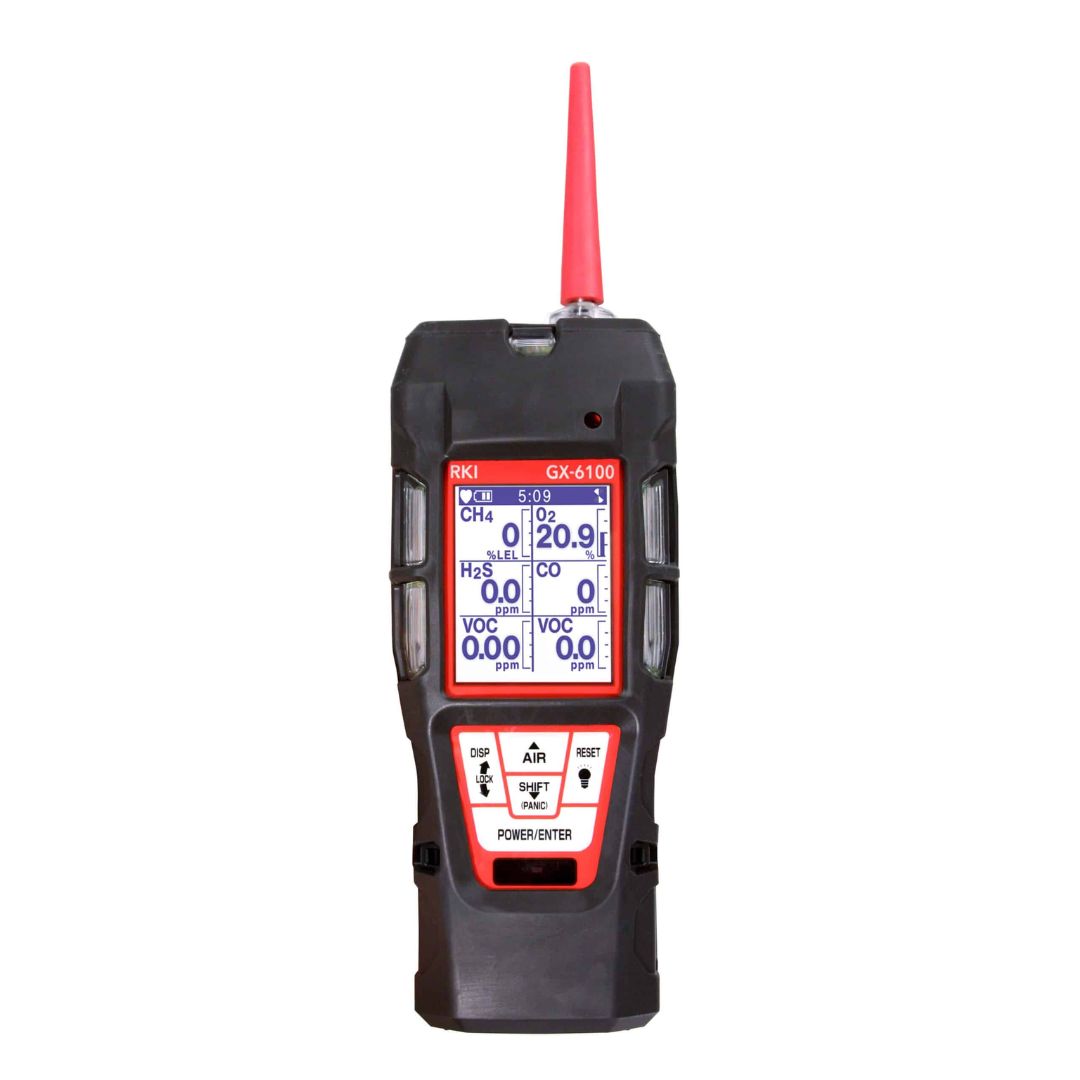

RKI Instruments GX-6100 Multigas Detector - 72-61AXXT-C
The GX-6100 is a powerful hand-held instrument capable of simultaneously monitoring up to 6 gases. In addition to the standard 4 confined space gases which include combustibles, O2, CO, & H2S, the GX-6100 has 2 additional smart channels that accept PID, PPM, IR or super toxic sensors. The updated GX-6100 can measure combustible gases in PPM range and %volume in the same monitor.
Features:
- Smallest 6 gas sample draw detector
- New 4-gas sensors with up to 3-year warranty
- 2 Interchangeable smart sensor slots
- TC sensor for %volume measurement of combustibles
- New ppm MOS CH4 and ppm MOS i-C4H10 sensors
- 4 PID options: 10.6 (2 ranges) eV, 10.0 eV, and 11.7 eV lamps
- Supports dual PID sensors
- PID library of over 600 VOCs
- Rapid sharing of emergency alerts via Bluetooth®
- Benzene specific version
- PPM Leak Check mode
- LEL sensor protection mode
- Man-down alarm
- Panic alarm
- Auto display rotation
- Peak-bar display
- LED Light source
- Internal sample pump
- Light weight, small, rugged IP-67 design
- Interchangeable battery packs (Li-ion / alkaline)
- Operates up to 28 hours on Li-ion battery pack, 8 hours operation with alkaline pack
- Field replaceable sensors, batteries, filters and pump
- Intrinsically safe ATEX / IECEx / cCSAus (pending)
Applications:
- Confined Space Entry
- Hazmat Response Teams
- Arson Investigation
- Remediation Site
- Perimeter Monitoring
- Leak Detection
- Landfill Monitoring
- Winery Tank Entry
Specifications:
Common Specifications |
|||
| Alarm Types | Gas alarm | Man-down | Trouble |
| Low and high adjustable | 1st – self reset
2nd – latching |
Low flow
Sensor connection Low battery Circuit error Calibration failure |
|
| Sample Method | Sample draw pump, flow rate 0.45 LPM, 100 foot sample range | ||
| Display | Digital LCD, autobacklight, peak bar display, auto display rotation, and customize order of gases | ||
| Communication | Bluetooth, IrDA | ||
| Audible Alarm | 95 dB at 1 ft. | ||
| Languages | English, Japanese, French, Spanish, Portuguese, Italian, German, Russian, Korean, Chinese (simplified), Chinese (traditional), Vietnamese, Slovak, Czech, Turkish, Polish | ||
| Continuous Operation |
28 hours on Lithium-ion battery pack. Complete recharge in 6 hours.
8 hours Alkaline battery pack (3 AA size in each pack) |
||
| Operating Temp. & Humidity |
-4°F to 122°F (-20°C ~ +50℃), 0- 95% RH non condensing | ||
| Dimensions | 2.6” W x 7.9” H x 2.2” D (H200 x W68 x D56 mm) 17.6 ounce (500g) with lithium battery pack16 ounces with alkaline batteries (450g) |
||
| Case Material | Dust and water resistant with IP-67 approval (exclude sample hose and probe) |
||
| Safety Design /
Approvals |
Explosion proof: IECEx , ATEX , TIIS , cCSAus (pending)
Explosion class :Ex ia IIC T4 Ga Others: CE Marking |
||
| Standard Features |
2 Smart sensors slots auto recognize sensor changes Panic alarm and man down alarm Library of over 600 VOC’s User defined VOC list. Up to 30 frequently used Recent VOC list for last 8 selected gases Pump and circuit status indicators User & station ID selection menu Datalogging (interval, alarm trend, station and user ID) Snap logging – on demand data logging Demand zero / Auto zero BUMP and CAL expiration alarm Flashlight LEL sensor protection mode |
||
| Optional Accessories |
• SDM-6100 calibration station | ||
| Warranty |
Three years material (including R sensors) and |
||
