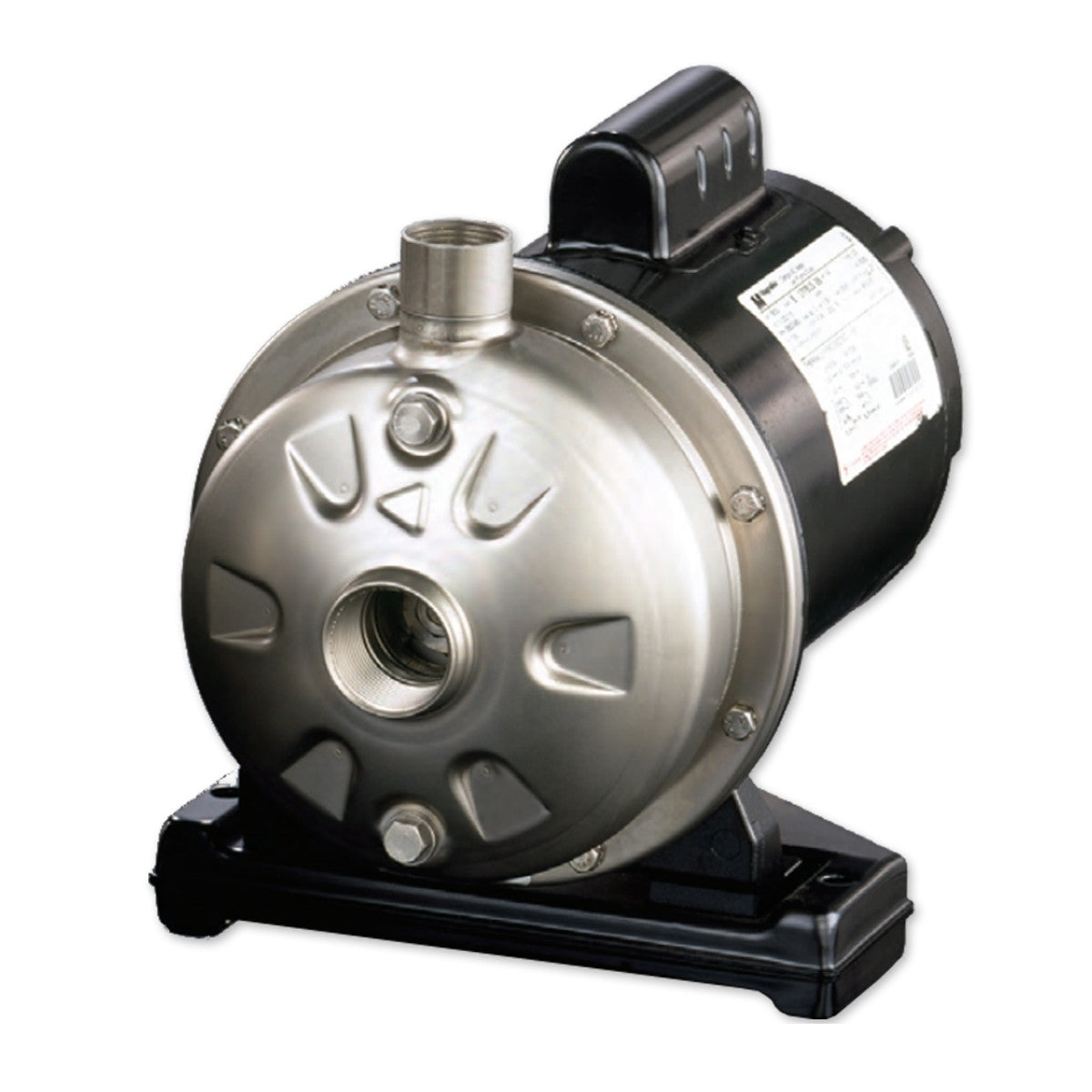

Ebara Pumps Stainless Steel Centrifugal Pump, 0.75 HP
Model CDU70/17T3C
Stainless Steel End Suction Centrifugal Pump
Constructed of bulge-formed stainless steel, the model CDU end suction centrifugal pump is designed for corrosion resistance, dependable performance and high-efficiency, continuous duty. High-quality stainless steel components are stronger, dimensionally consistent and lighter weight compared to conventional cast iron, making EBARA centrifugal pumps competitively priced and an economical advantageous choice. The model CDU is suitable for almost any commercial and industrial general water applications that require corrosion resistance including those with moderately aggressive liquids.
Model CDU is NSF/ANSI 61 Annex G listed
Specifications:
- Type: End Suction
- Solids: None
- Seals: Viton Standard
- Connection: NPT
- Controls: None
- HP: 0.75
- Motor Enclosure: TEFC
- Voltage/Phase: 230/460 3PH
- Elec. Connection: Hard Wired
CDU Specifications:
- Suction Size: 1 1/4″ to 1 1/2″
- Discharge Size: 1″
- Range of HP: 1/2 to 3 HP
- Capacity: 5.5 to 95 GPM
- Head: 26 to 144 Feet
- Max. working pressure: 125 PSI (9 Bar)
- Temperature: 212°F (100°C)
- Liquid: clean water
Key Features:
- Close coupled design – saves space; simplifies maintenance and installation
- Stainless steel liquid end components – high quality; corrosion resistance
- Versatile mounting – can be installed horizontally or vertically
- Back pullout construction – allows for assembly and overhaul of the impeller and seal without distorting suction and discharge connections
- Top centerline discharge and foot support under casing – ensures self-venting and reduces misalignment from pipe loads
- High-efficiency – lowers operating costs
- High quality mechanical shaft seals and o-rings – available for standard pumping requirements, or optional high temperature and chemical duty operation
- Available as a complete pump or as a kit
Applications:
- Plant services
- Water supply systems
- Liquid transfer
- Ultrapure water systems
- Water reclamation
- Water treatment
- Irrigation
- Air conditioning systems
