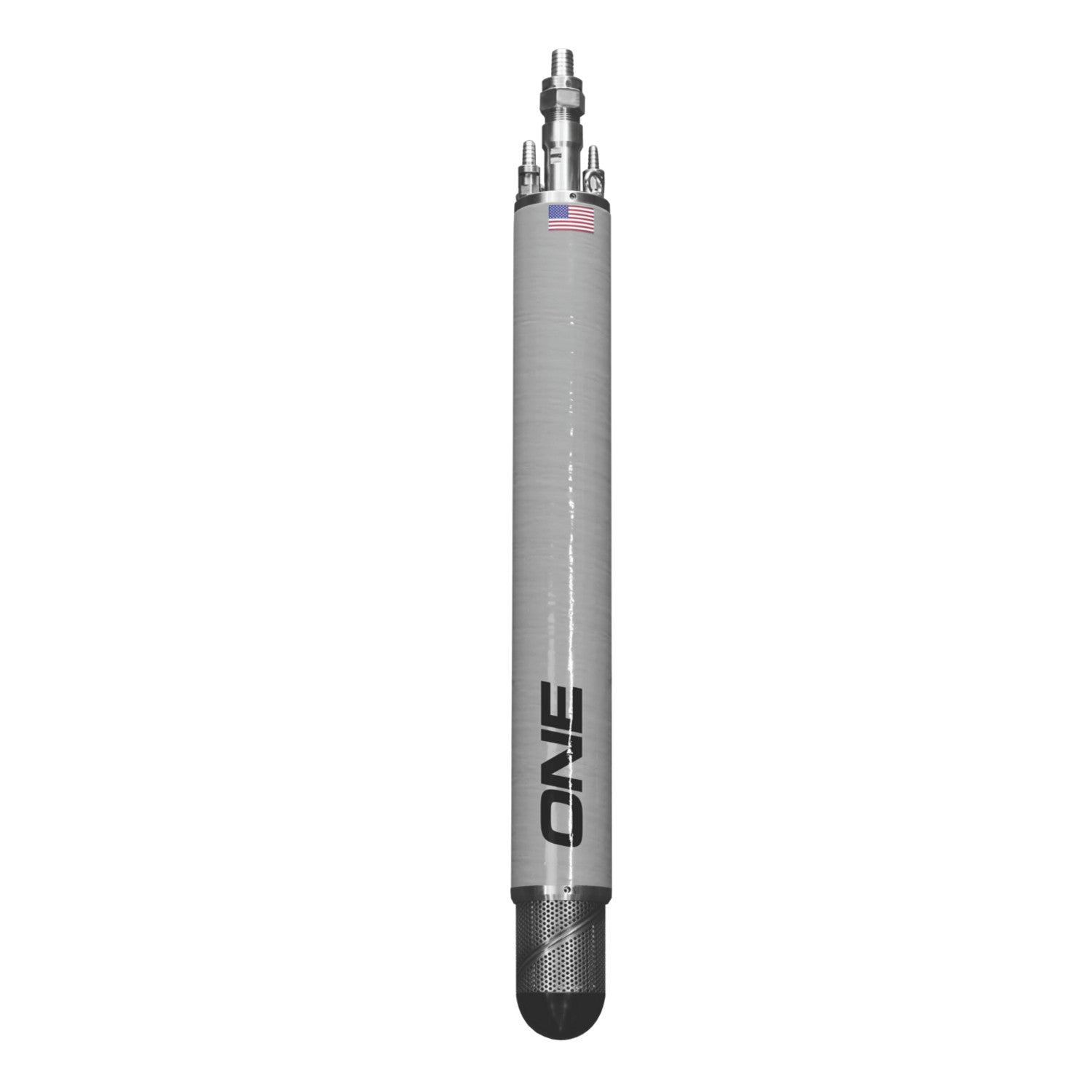

Bottom Loading Pneumatic ONE Pump
The ONE is designed to be as efficient as possible due to PumpOne’s dedication to quality and service. A solid machined pump head with an integral discharge check valve along with a solid machined bottom check valve assembly minimizes the number of parts needed and makes for easy disassembly. Air leakage into discharge is prevented by having no penetrations through the center discharge tube.
Fine-tuning the ONE is made simple with adjustable air valve poppets and magnets with no sealants or thread locking compounds required. The ONE is also compatible
with industry standard Fast-Fit couplings and/or standard hose-barbs.
Each ONE is protected by a 5 year standard warranty and as with all PumpOne products, the ONE is supported by PumpOne’s unmatched customer service
and technical support.
Corrosion & Temperature Resistance:
The ONE Pump is built to withstand extreme conditions with exceptional corrosion and temperatures resistance due to the highest quality materials of construction which
include 316L Stainless Steel for all major metal parts and fasteners.
A 316L Stainless Steel casing with temperature resistance up to 250*F is available as an option.
SPECIFICATIONS
42.75” OVERALL LENGTH
27.375” FROM BOTTOM INTAKE TO TRIGGER POINT
PUMP TYPE: ONE BOTTOM LOADING HIGH-TEMPERATURE PNEUMATIC PUMP
ACTUATION: FLOAT ACTIVATED, FULLY AUTOMATIC
WEIGHT: FRP / 316L SS CASING: 17.2 LBS / 21.2 LBS
VOLUME OF DISPLACED LIQUID PER CYCLE: 0.32-0.37 GALLONS (US)
MAX. FLOW RATE WITH 1” O.D TUBING: 13GPM - SEE FLOW RATE CHART
AIR PRESSURE OPERATING RANGE: 5-250 PSI
MAXIMUM OPERATING TEMPERATURE: UP TO 250*F WITH OPTIONAL SS CASING
AIR CONSUMPTION: 0-5 SCFM
PH RANGE: 2-13
MINIMUM LIQUID DENSITY: 0.79
MATERIALS:
ALL MAJOR INTERNAL METALLIC PARTS: 316L STAINLESS STEEL, 17/4 STAINLESS STEEL & NDFEB
ALL INTERNAL NON-METALLIC PARTS: PEEK, PTFE (TEFLON®), FKM (VITON®) & PVDF (KYNAR®) DOWN-WELL TUBE & CONNECTION DETAIL
TRI-TUBING: HIGH PERFORMANCE NYLON COATED
DISCHARGE: 1” OD TRI-TUBING
AIR SUPPLY: 1/2” OD TRI-TUBING
AIR EXHAUST: 5/8” OD TRI-TUBING
FAST-FIT COUPLING SIZES: 1/2” & 3/8” BARB SIZES WITH CUSTOM SIZES AVAILABLE
STANDARD TUBE BARB SIZES: 1/2” & 3/8” BARB SIZES WITH CUSTOM SIZES AVAILABLE
