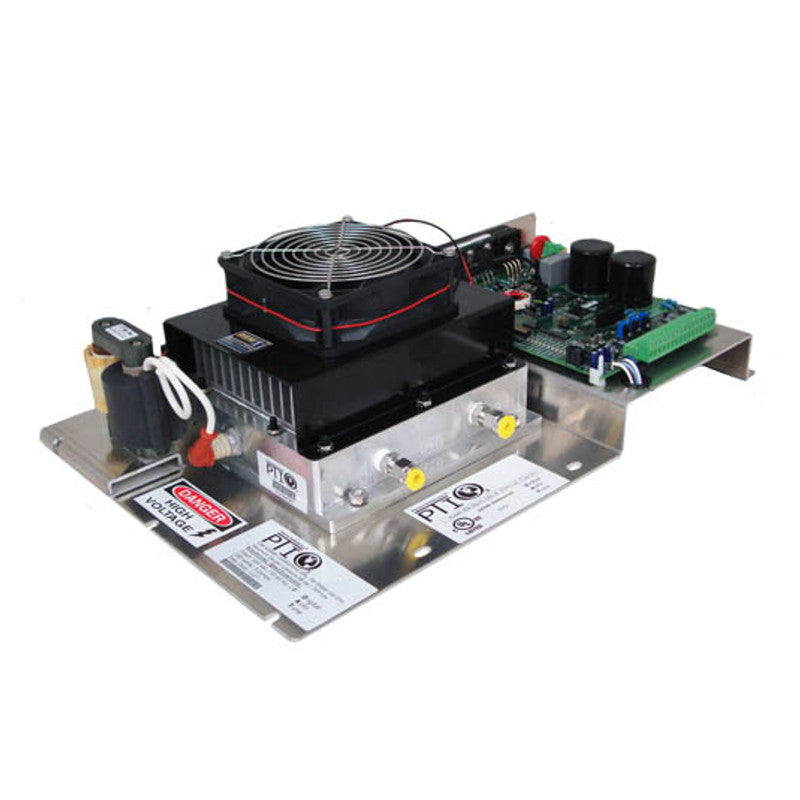

PTI 30g/hr Solid State Ozone Generator
- Silent, Rugged, Reliable, Cost-effective
- Compact and Light Weight, Ceramic, Air-cooled and power-Efficient.
- 1.1 lbs/day at 6.7% and 3 LPM : 1.9 lbs/day at 3.5% weight and 10 LPM (Oxygen or Concentrator)
- No exposed, high-voltage safety hazards.
- Precise ozone control using Pulse Density Modulation (PDM) via potentiometer, 4/20ma or 0-10vdc.
- Precise Control with Turn-down to 1%.
PTI 30 Gram Air-Cooled PlasmaBlock® Datasheet
Design Features:
- All high voltage is safely contained completely within the Plasma Block®, thereby eliminating shock hazards and dirt buildup which can cause dangerous flashover. High-voltage wiring is booted, and all metal grounded.
- Advanced design eliminates the possibility of ozone leakage from the body or fittings. The only ozone leak possible is at the customer tightened ozone fitting. All non-metal materials are ozone rated.
- Military grade conformal coating eliminates problems associated with condensation and mold and greatly retarding damage caused by accidental ozone exposure.
- Directly installable by UL 508a panel house.
- Micro Channel®design results in high concentration, reduced high-voltage levels, and more efficient operation.
- Requires concentrator or bottle feed of at least -60°F dew point, filtered, positive-pressure oxygen. Materials in the gap are ceramic and aluminum.
- Ideal for ‘over-the-road’ applications. Instant-ON ozone production -- no warm-up time.
- Precision-machined aluminum block eliminates inefficient hot spots and facilitates operation at high pressures, as well as vacuum ride through. Only 1 psi drop with 10 LPM flow. As with any cell, the most predictable performance
occurs in the positive pressure domain. Maximum pressure 100 psi. 2.7 safety factor at 150 psi. - Ozone level automatically controlled to ± 1% from 85 to 130vac, or 170v to 260vac, depending on the model.
- Pre-mounted, seasoned and tested package sub-system includes cell, transformer, inverter and fan. Design uses the finest quality materials and machining for maximum performance and efficiency.
- The Inverter is a reduced-power version of PTI’s popular SSD110. All control and interface features of the SSD110 are available in this product.
- 23 kHz operating frequency for silent operation. Line voltage 120v or 240v, 50/60hz.
- Inlet 1/4", Outlet 1/4”; both Stainless Compression Fittings are standard; 3/8” or 1/4” NPT on request.
- Pre-seasoned, calibrated and pre-adjusted to customers’ individual performance needs. Ready to install.
- Rigorous 100% performance, as well as burn-in tests of all electricals, are conducted to ensure the highest level of product quality, reliability and consistency.
