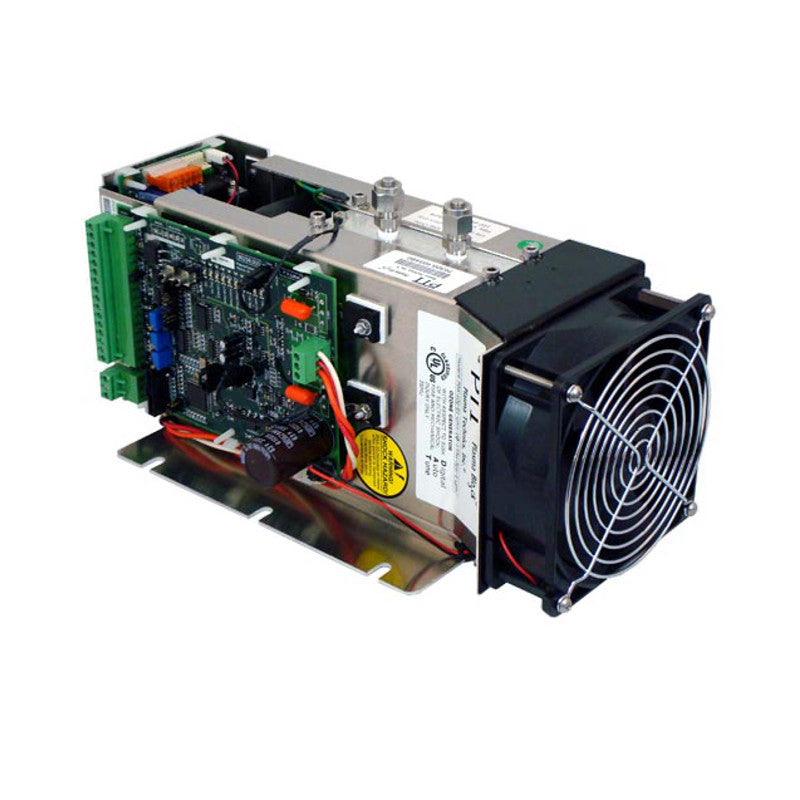

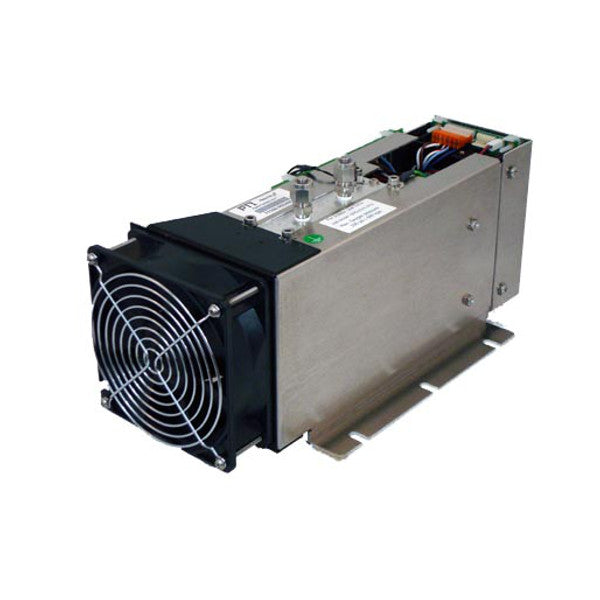

PTI 10g/hr Solid State Ozone Generator
- Fully automatic tuning for constant ozone output and installation simplicity
- Service simplicity due to automatic fault diagnostics
- Silent, Rugged, Reliable and Cost Effective
- No exposed high-voltage safety hazards
- 10g and 20g models in same chassis
PTI 10 and 20 Gram Air-Cooled PlasmaBlock® Datasheet
- 10g, 5%, 2 lpm, 5 psi. 20g, 5%, 4 lpm, 5 psi.
- Directly installable by UL 508a panel house,
- Full-Auto and Semi-Auto modes hold constant power over the entire pressure range: 5 - 100 psi. From package to process with no setup or adjustments required. Continuously tracks and automatically optimizes performance for changes in pressure, flow and line voltage.
- Universal, world class product. Constant ozone output and cooling: 100 – 240vac, 50/60hz, power factor .94-.99 across the entire working voltage and power range.
- Power supply is UL / CSA / CE approved. NO line voltage configuration jumpers – any voltage, any frequency; same unit.
- Efficient, compact, silent (25khz), safe, rugged, reliable, advanced – all the normal traits of a PTI product. Same precise linear control, with turn down to 1%, as all Plasma Block products.
- Maximum up-time , durable, commercial / industrial solution the ozone industry requires.
- Possible cell flooding is identified followed by shut down and enunciation. No damage is caused to electronics, transformer and rarely the cell. Cell flushing and drying in the field is usually sufficient to restore full service.
- Extensive two tier fault enunciation maximizes up-time and simplifies service diagnostics. Latched fault indicators retain fault status until serviced.
- The control electronics is accomplished via Plasma Technics® new 310 microcontroller based inverter board. This state of the art controller yields a simpler user interface and many new features intended to further increase up time and simplify installation and troubleshooting.
- PDM, Voltage and Frequency potentiometers have their own jumper selection for on board control if desired.
- Complex and thorough on board electronic short circuit protection prevent nuisance circuit board failure due to accidental field wiring errors.
- Power and control connection are located at the rear of the product to enable integrators to construct ‘plug & play’ mounting.
- Same mounting footprint and mounting hole centers as the popular 50g Plasma Block. The 10/20g chassis is a miniature version of the 50g unit. This means that the general location for control connections, gas IN/OUT, cooling, etc. are the same.
- Military grade conformal coating eliminates problems associated with condensation and mold as well as greatly retarding damaged caused by accidental ozone exposure.
- Like all other Plasma Block products, the feed gas supply must be either PSA concentrator or bottle feed of at least -60°F dew point, filtered, positive-pressure oxygen.
- There is an inherent pressure drop associated with each Plasma Block. This can vary depending on the desired flow. Verification of the outlet pressure, at the desired flow, of the Plasma Block is crucial in order to prevent a negative pressure drop in the Plasma Block. This will damage the Plasma Block internals and is not a warrantied repair.
