Industrial Ultrasonic Level Sensor

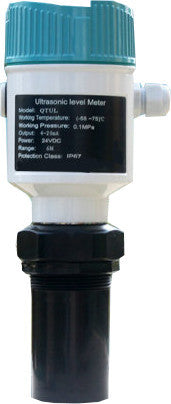

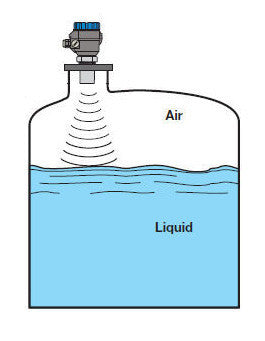

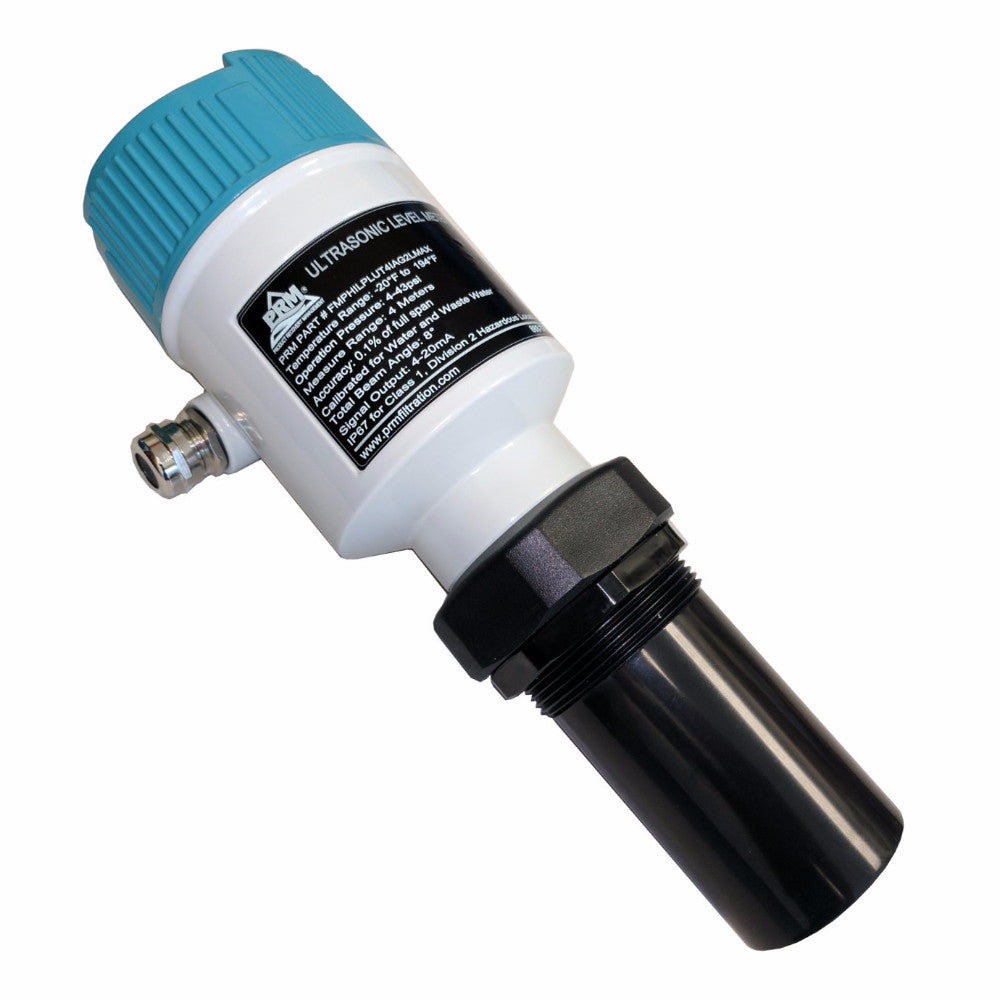

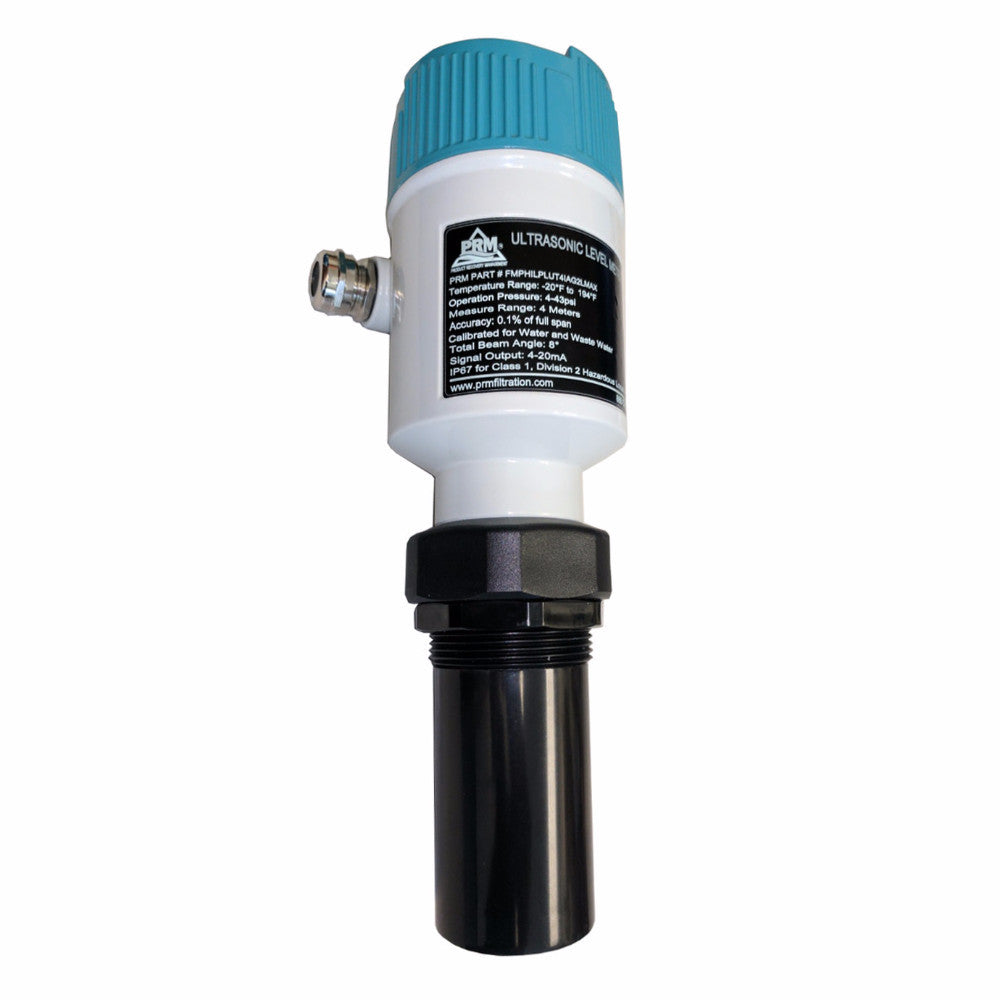

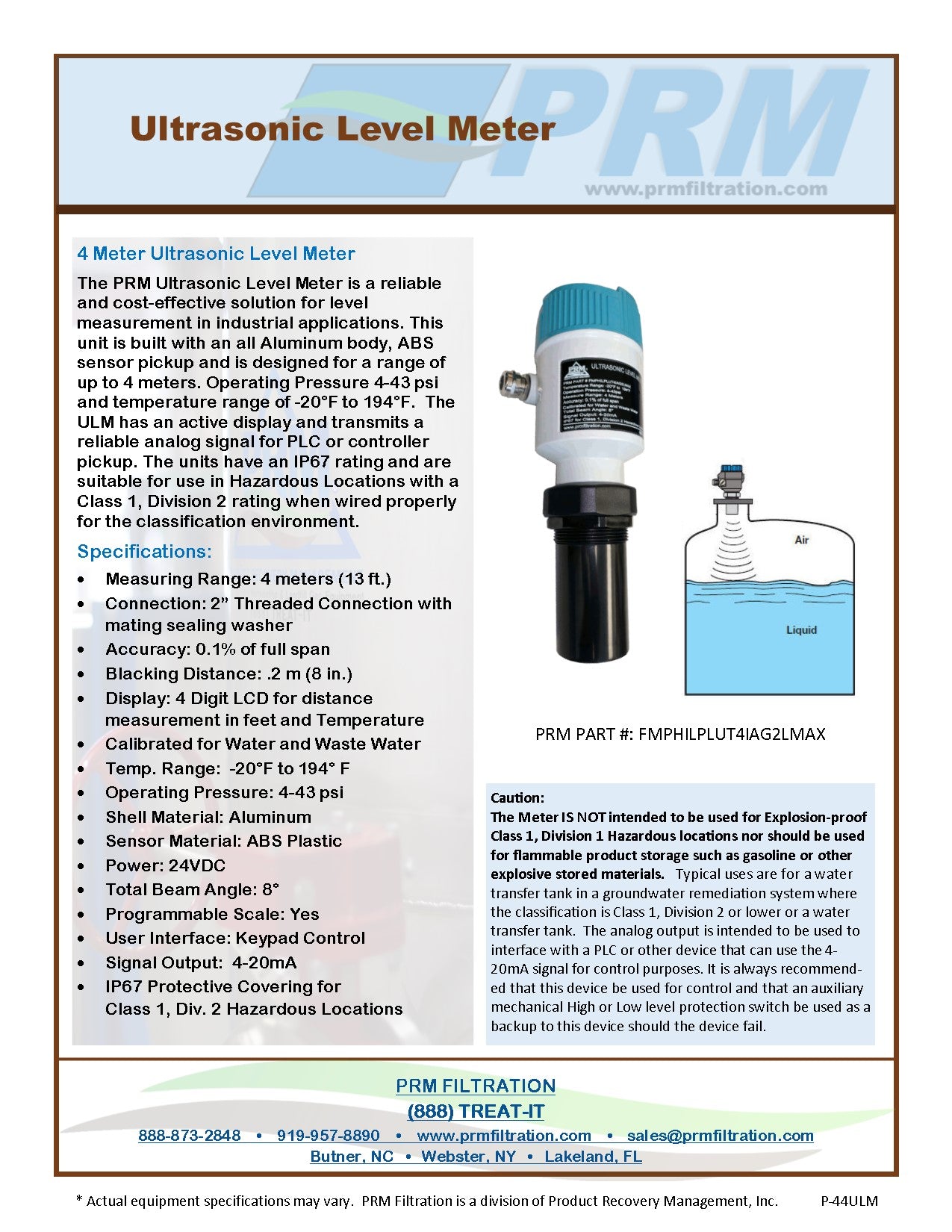

The PRM Ultrasonic Level Sensor is a reliable and cost-effective solution for level measurement in Industrial applications. This unit is built with an all Aluminum body, ABS sensor pickup and is designed for a range of up to 4 meters. Operating Pressure 4-43 psi and temperature range of -20°F to 194°F. The ULM has an active display and transmits a reliable analog signal for PLC or controller pickup. The units have an IP67 rating and are suitable for use in Hazardous Locations with a Class 1, Division 2 rating when wired properly for the classification environment.
The Meter IS NOT intended to be used for Explosion-proof Class 1, Division 1 Hazardous locations nor should be used for flammable product storage such as gasoline or other explosive stored materials. Typical uses are for a water transfer tank in a groundwater remediation system where the classification is Class 1, Division 2 or lower or a water transfer tank. The analog output is intended to be used to interface with a PLC or other device that can use the 4-20mA signal for control purposes.
It is always recommended that this device be used for control and that an auxiliary mechanical High or Low level protection switch be used as a backup to this device should the device fail.
- Measuring Range: 4 meters (13 ft.)
- Connection: 2” threaded connection with mating sealing washer
- Accuracy: 0.1% of full span
- Blacking Distance: .2 m (8 in.)

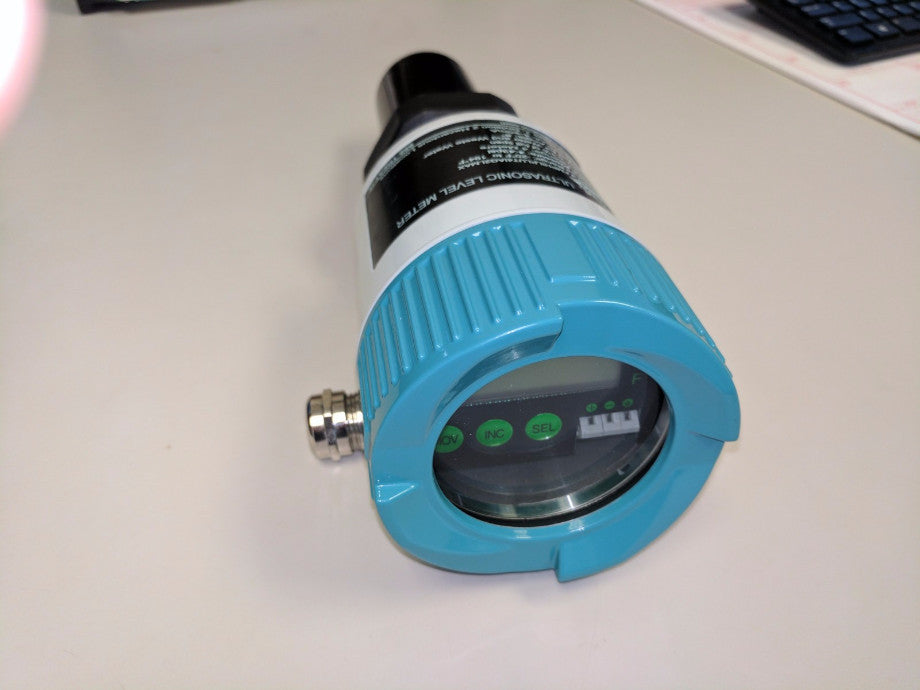

- Display: 4 Digit LCD for distance measurement in feet and Temperature
- Calibrated for Water and Waste Water
- Temp. Range: -20°F to 194° F
- Operating Pressure: 4-43 psi
- Shell Material: Aluminum
- Sensor Material: ABS Plastic
- Power: 24VDC
- Total Beam Angle: 8°
- Programmable Scale: Yes
- User Interface: Keypad Control
- Signal Output: 4-20mA
- IP67 Protective Covering for Class 1, Div. 2 Hazardous Locations
