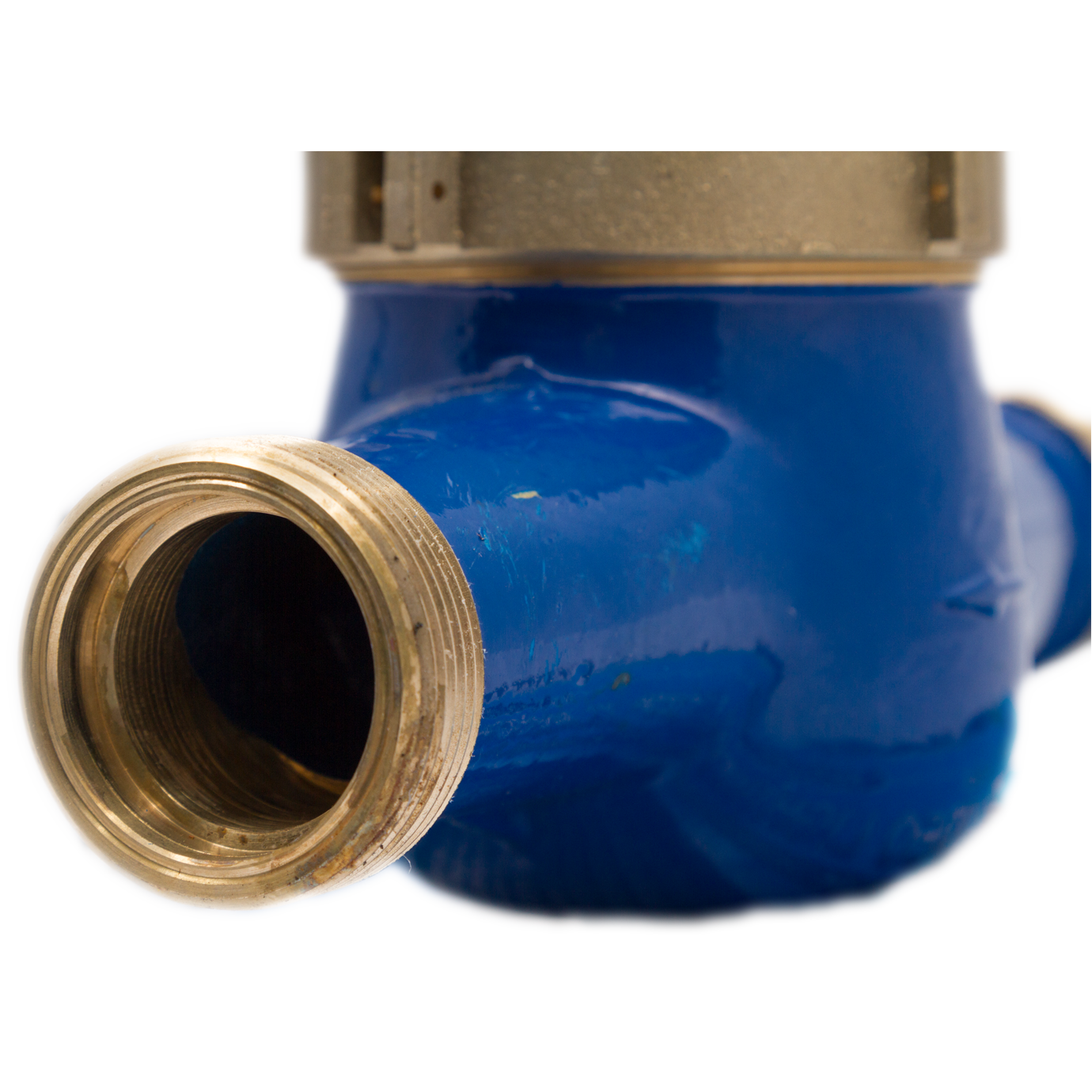

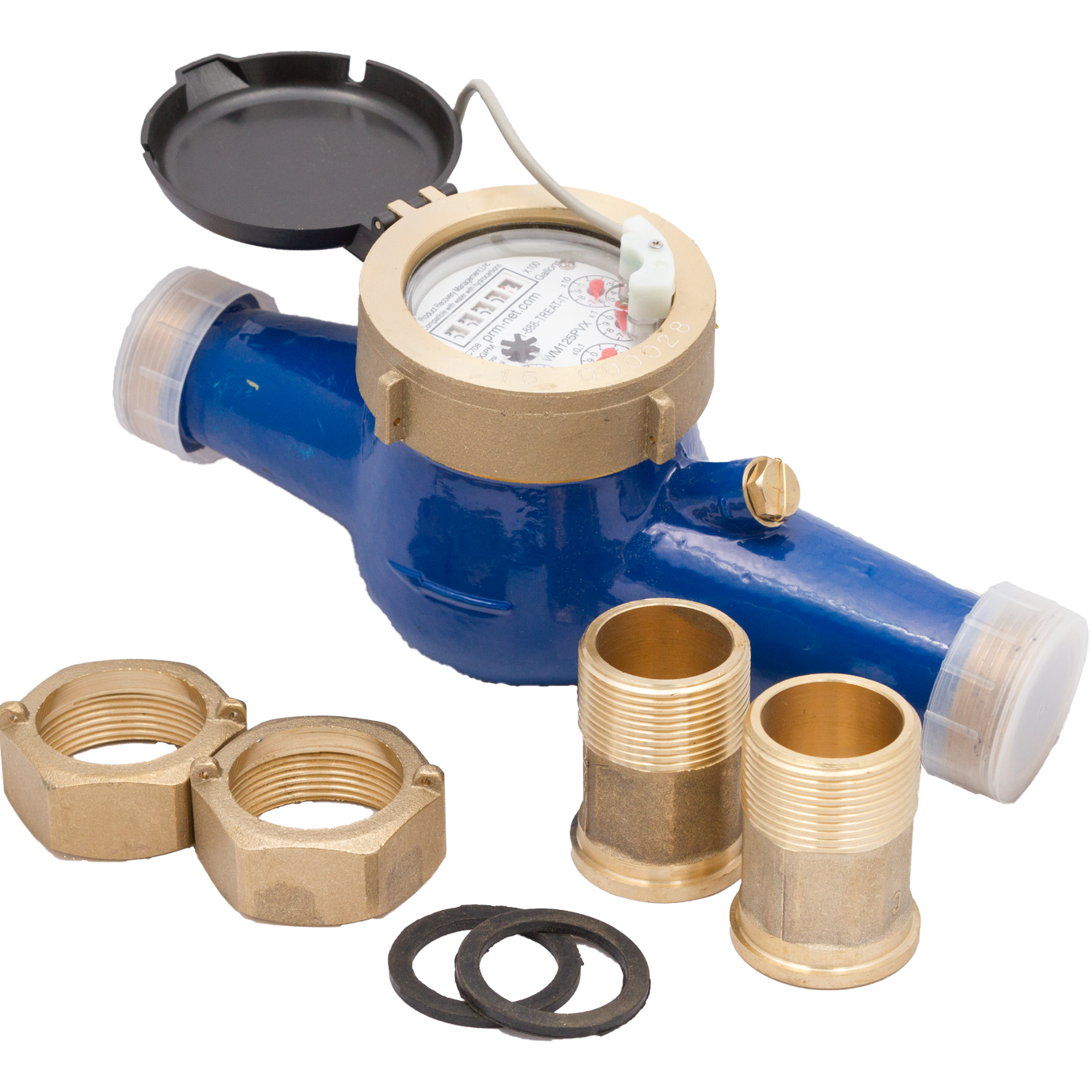

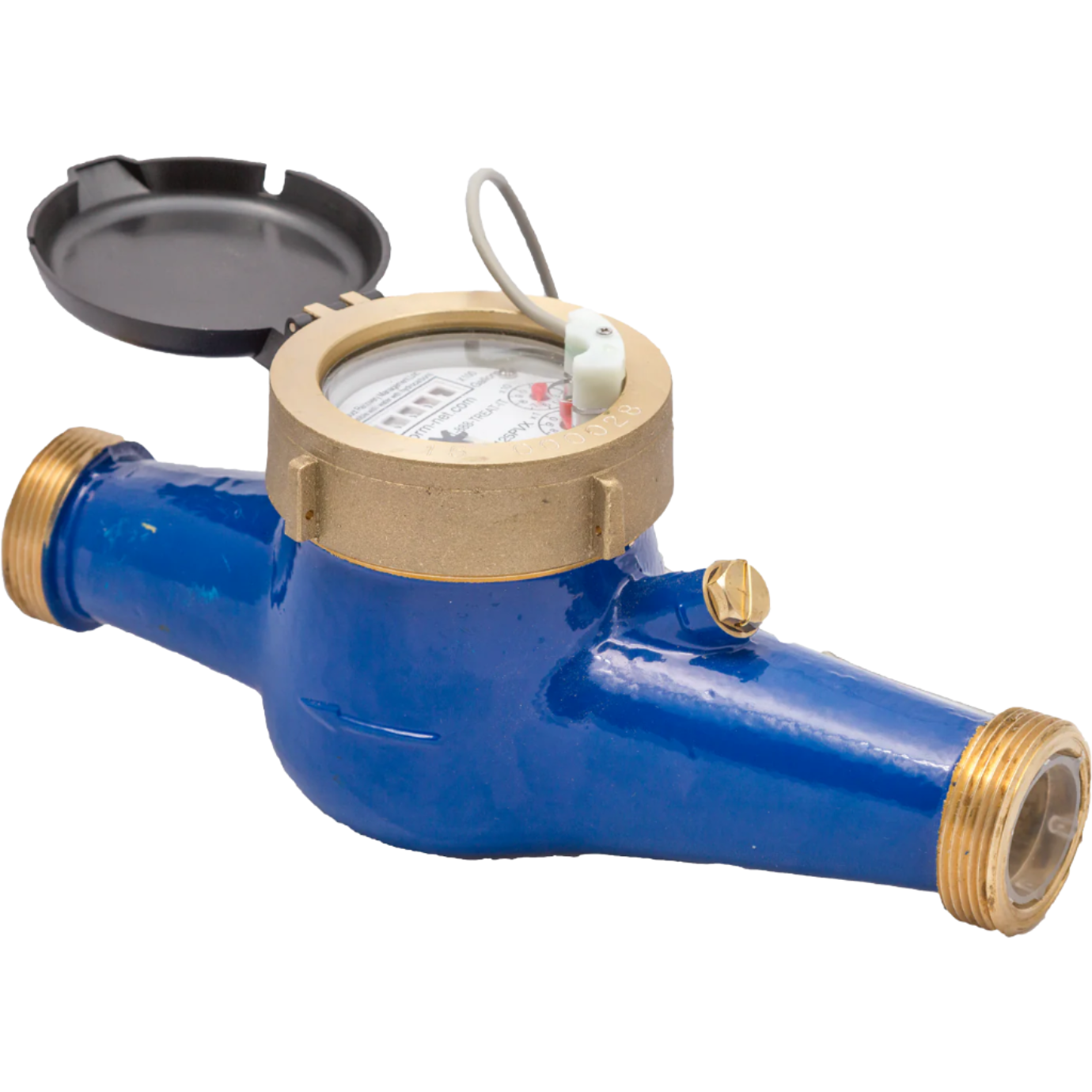

MULTI-JET WATER METERS
Water Meters for Totalization and Rate Indication with Pulse Output
PRM multi-jet water meters are known for their wide range, simplicity, and accuracy in low quality water.
Features:
Pulse Output Components

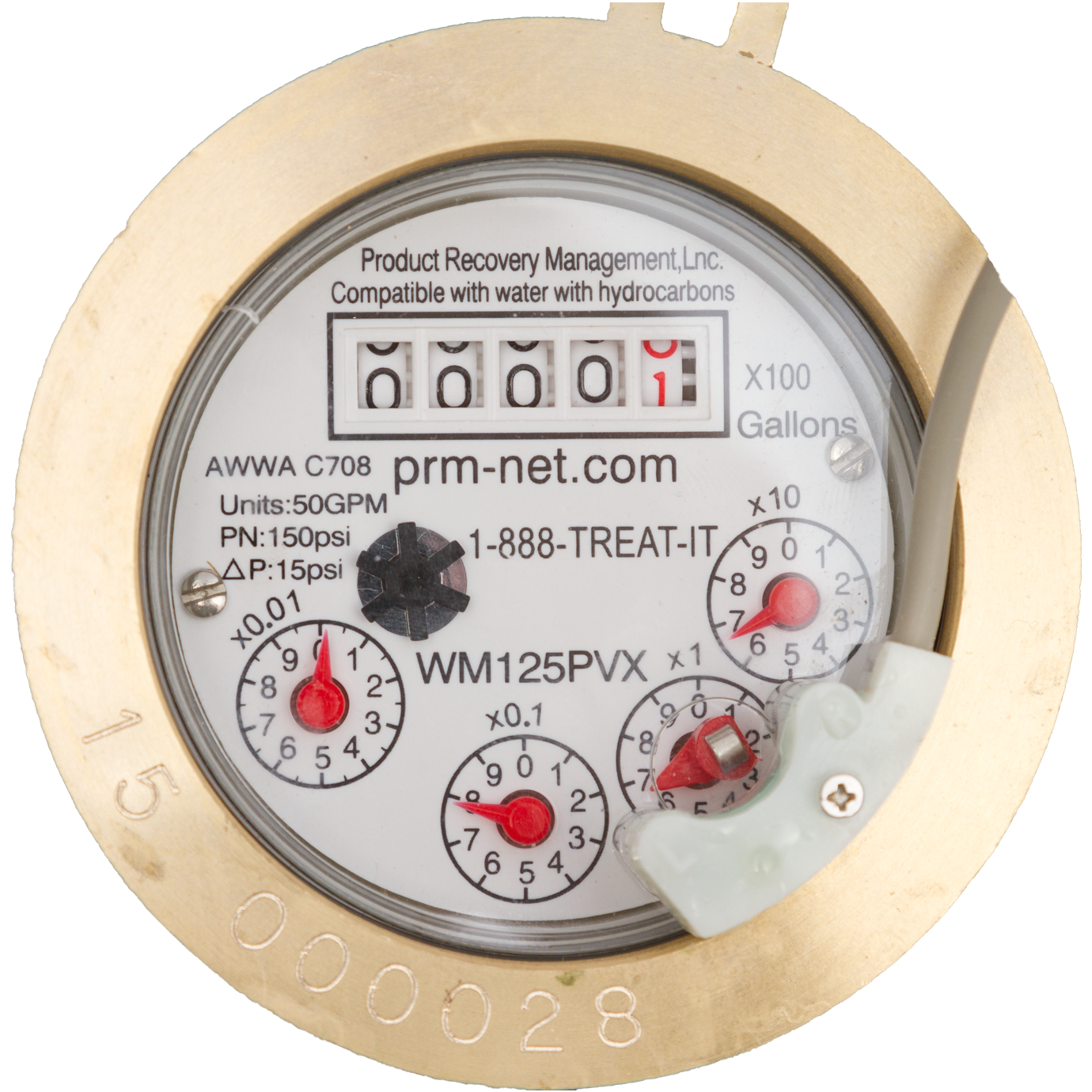

Sealed Dry Dial for Clear Readings

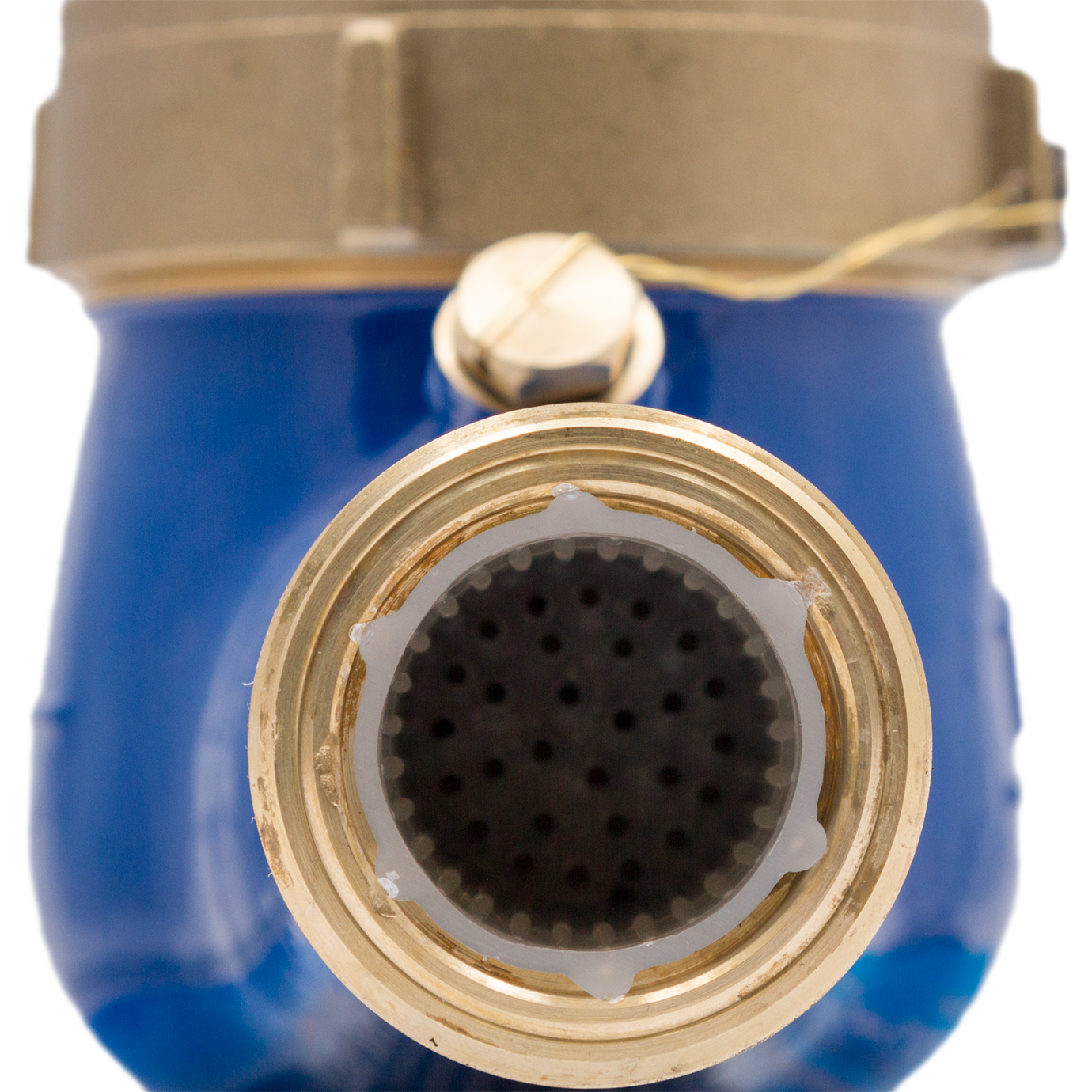

Internal Strainer to Protect Meter from Particulate Damage
Magnetic Drive for lower resistance
Specifications:
Class: B
Accuracy: Transitional Flow: ± 5%
Nominal Flow: ± 2%
Maximum Water Temperature: 104°F
Maximum Water Pressure: 150 psi
Mounting Orientation: Horizontal
Materials:
Body: Brass, polyethylene
Couplings: Brass
Measuring Chamber: Polyethylene
Paint: Epoxy Coated
Seal: Black: Buna-N; Viton Available, White: HDPE
Mounting Orientation: Horizontal
Not for use with Potable Water
- Spec Sheet
- Installation Instructions
- Wiring Diagram
- PRM Water Meter Manual
- Pair it with pre-wired junction box and digital counter
| PRM Part # | Size | Length (in.) (w/NPTadapters) |
Height (in.) | Weight | Nominal Flow (GPM) |
| WM050PVX | 1/2" | 10.5 | 4.75 | 3 lbs. | 1-10 |
| WM075PVX | 3/4" | 12 | 4.75 | 3.5 lbs. | 1-20 |
| WM100PVX | 1" | 14.5 | 4.75 | 5.5 lbs. | 2-30 |
| WM125PVX | 1-1/4" | 15.5 | 5 | 6 lbs. | 3-50 |
| WM200PVX | 2" | 18 | 6.5 | 14 lbs. | 5-125 |
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
