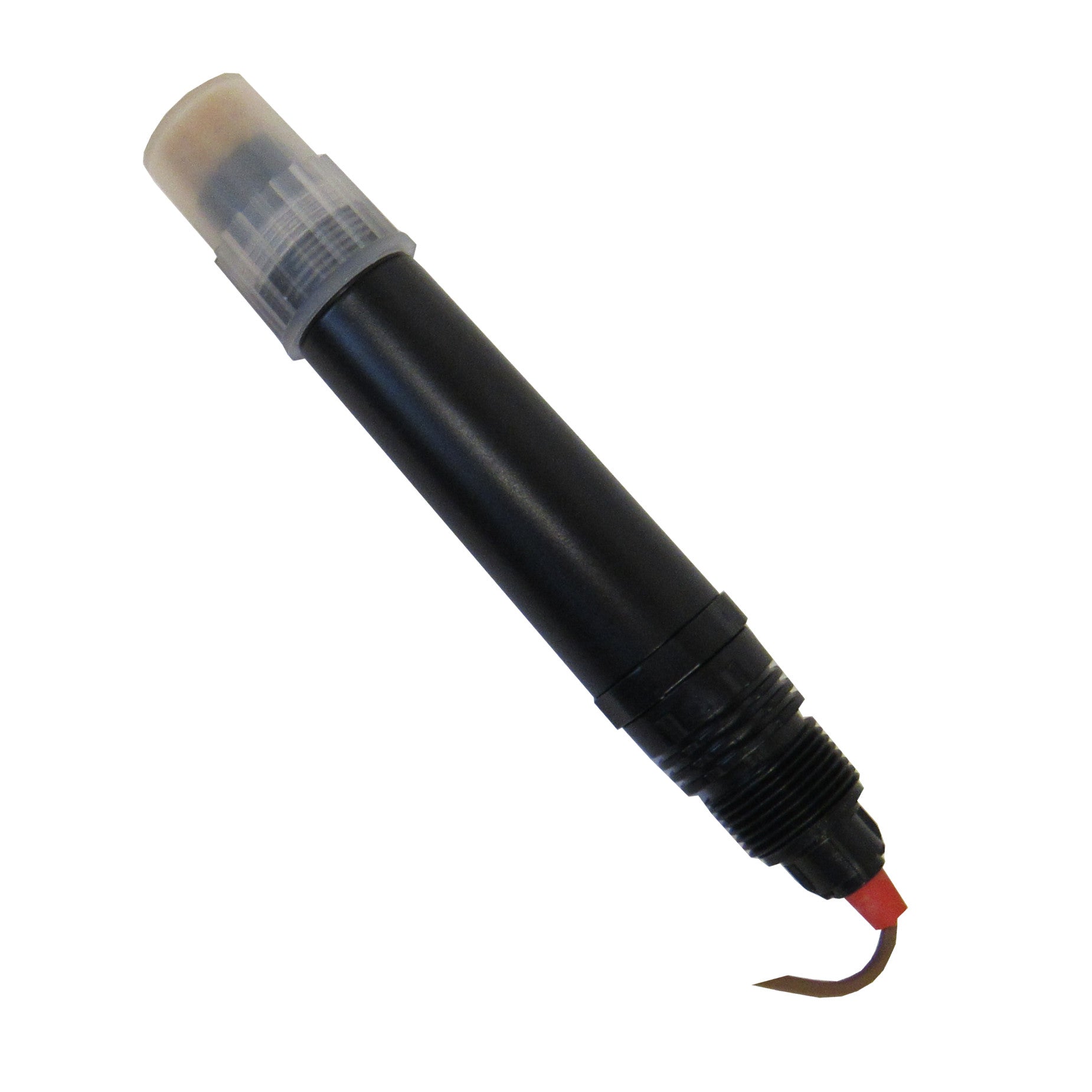

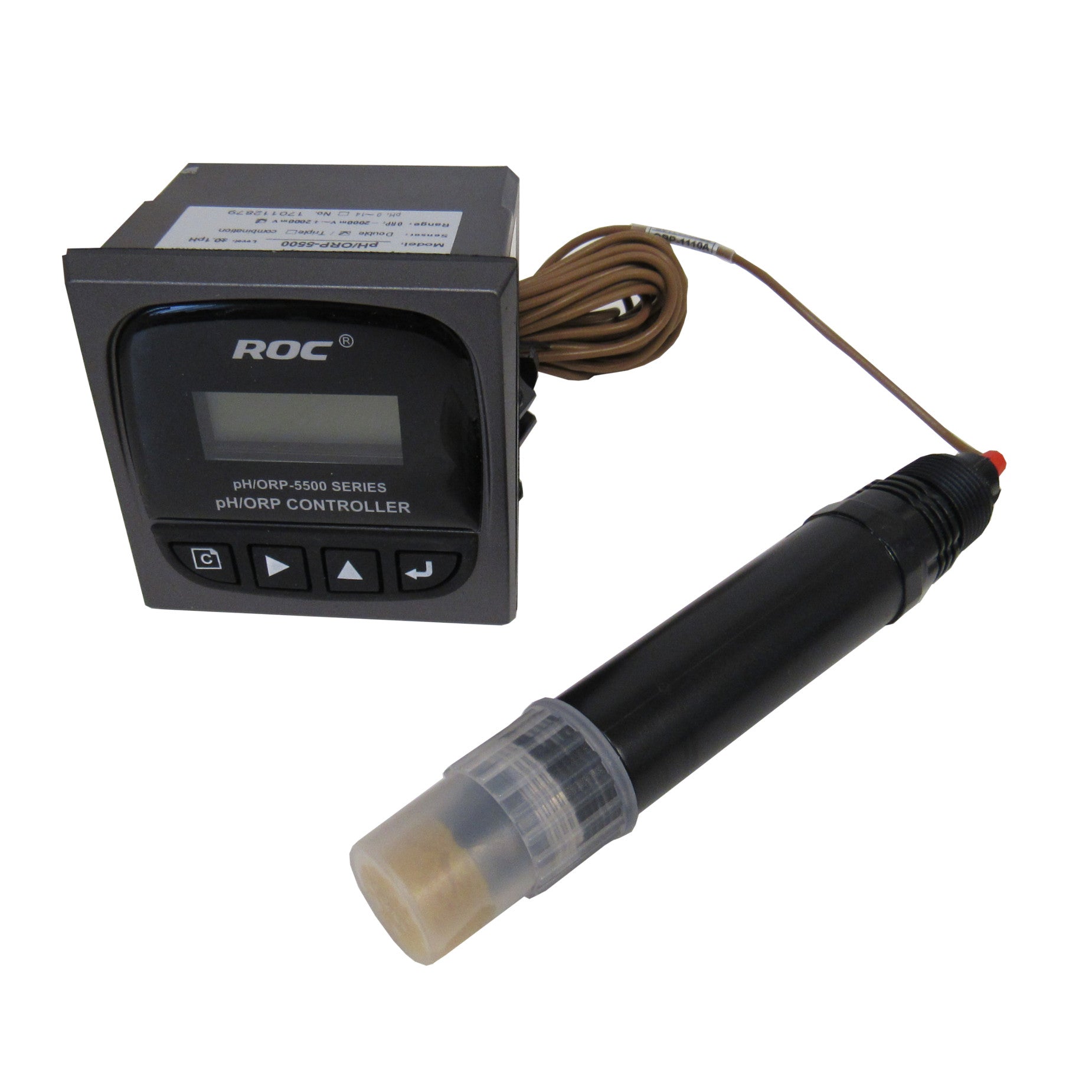

ORP5500 Monitor/Probe
Measurement and control of ORP (Oxidation-Reduction Potential) is important
in a wide variety of industries.
The ORP5500 Transmitter provides the combination of durability, accuracy, and versatility required for virtually any ORP monitoring application.
PRM offers pH/ORP monitors and probes for accurate measurement and diagnostics of process water.
Features:
- White backlight LCD screen
- Compatible for six kinds of buffer solutions
- 4~20 mA output
- Double relay high/low and delay control function
Main Technical Features
|
Model |
pH/ORP-5500 series pH/ORP online transmitting controller |
|||
|
Measurement range |
pH |
0.00~14.00 |
||
|
ORP |
-2000mV~2000mV |
|||
|
Temp. |
(0.0~50.0)℃(temperature compensation component:NTC10K) |
|||
|
Resolution |
pH |
0.01 |
||
|
ORP |
1mV |
|||
|
Temp. |
0.1℃ |
|||
|
Accuracy |
pH |
0.1 |
||
|
ORP |
±5mV(electronic unit) |
|||
|
Temp. |
±0.5℃ |
|||
|
Approximate input impedance |
3×1011Ω |
|||
|
Buffer solution |
pH value: 10.00;9.18;7.00;6.86;4.01;4.00 |
|||
|
Temp.compensation range |
(0~50)℃(with 25℃ as standard) |
|||
|
(4~20)mA |
Characteristics |
Isolated,fully adjustable,reverible,instrument/transmitter for selection |
||
|
Loop resistance |
500Ω(Max),DC 24V |
|||
|
Accuracy |
±0.1mA |
|||
|
Control contact |
Electrical contacts |
Double relay SPST-NO,return model |
||
|
Loop capacity |
AC 220V/AC 110V 2A(Max);DC 24V 2A(Max) |
|||
|
Power consumption |
<3W |
|||
|
Working environment |
temperature |
(0~50)℃ |
||
|
humidity |
≤85%RH(none condensation) |
|||
|
Storage environment |
Temp.(-20-60) ℃;relative humidity:≤85%RH(none condensation |
|||
|
Outline dimension |
96mm×96mm×105mm(H×W×D) |
|||
|
Hole dimension |
91mm×91mm(H×W) |
|||
|
Installation |
Panel mounted,fast installation |
|||
