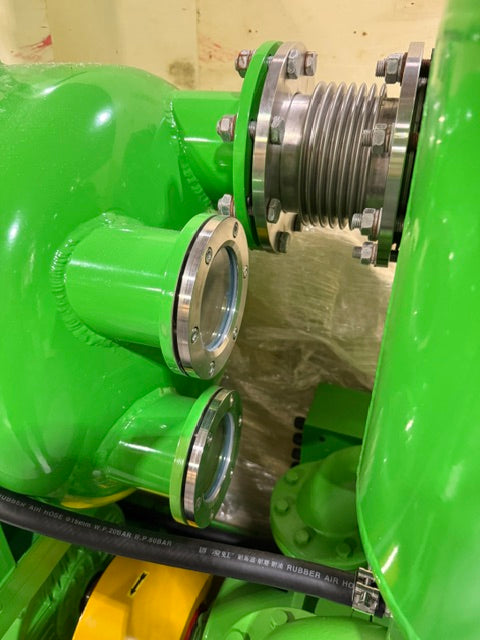

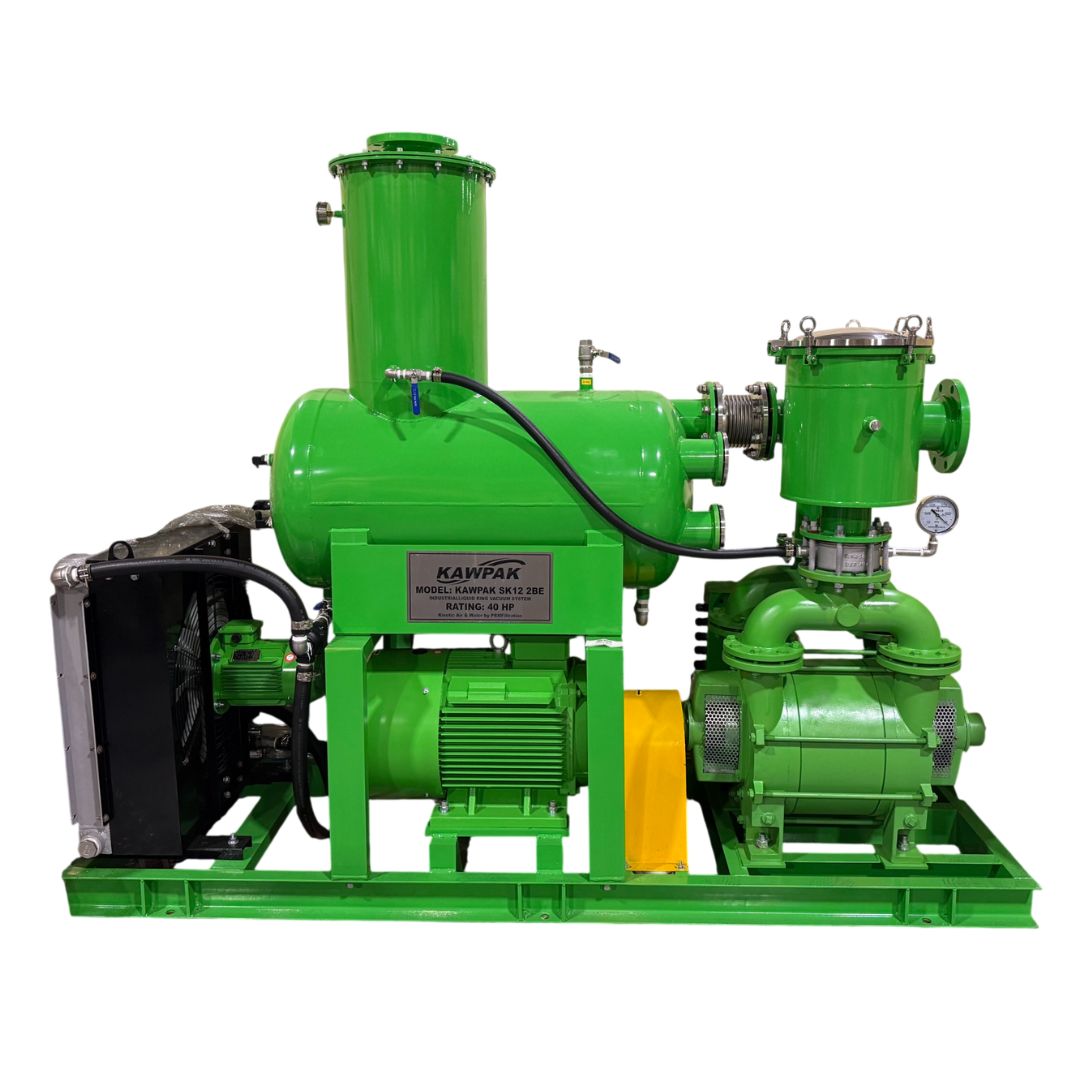

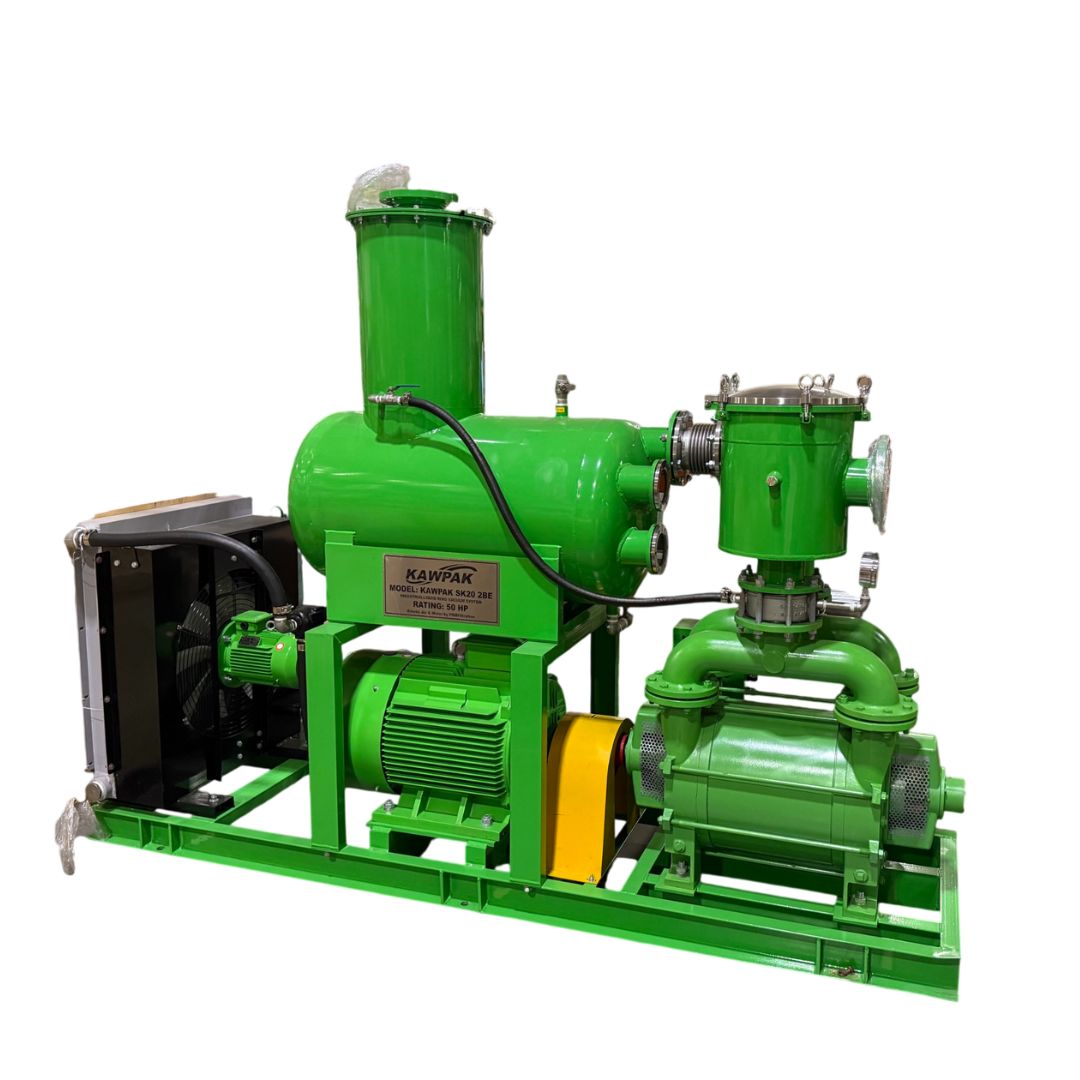

KAWPAK Integrated Liquid Ring Pump Systems
Designed for vacuum applications for a wide range of industries, the KAWPAK liquid ring vacuum pump system is capable of high vacuum and air flows. The system is built around a liquid ring vacuum pump, and incorporates a gas-liquid separator and heat exchanger in a single skid mounted system.
The KAWPAK LRP systems consists of:
- Liquid Ring Vacuum Pump
- Vapor Liquid Separator
- Air Cooled Oil Cooler
System Features:
- Oil Sealed Liquid Ring Pump
- Vacuum gauges and Transmitters
- Discharge piping to exhaust stack
- Temperature gauge and Transmitters
- Check valve at pump head intake
- Thermostatic valve at vapor-liquid separator controls flow to cooler dependent on oil temperature.
Specifications:
| Model | SK20 | SK12 |
| Motor Horsepower | 50 HP | 40 HP |
| Motor Voltage | 230/460 | 230/460 |
| Motor Phase | 3 Phase | 3 Phase |
| Motor RPM | 1175 | 1175 |
| Flow Rate (ACFM) @ 18" Hg | 765 | 509 |
| Max Vacuum | 28.5 inHg | 28.5 inHg |
