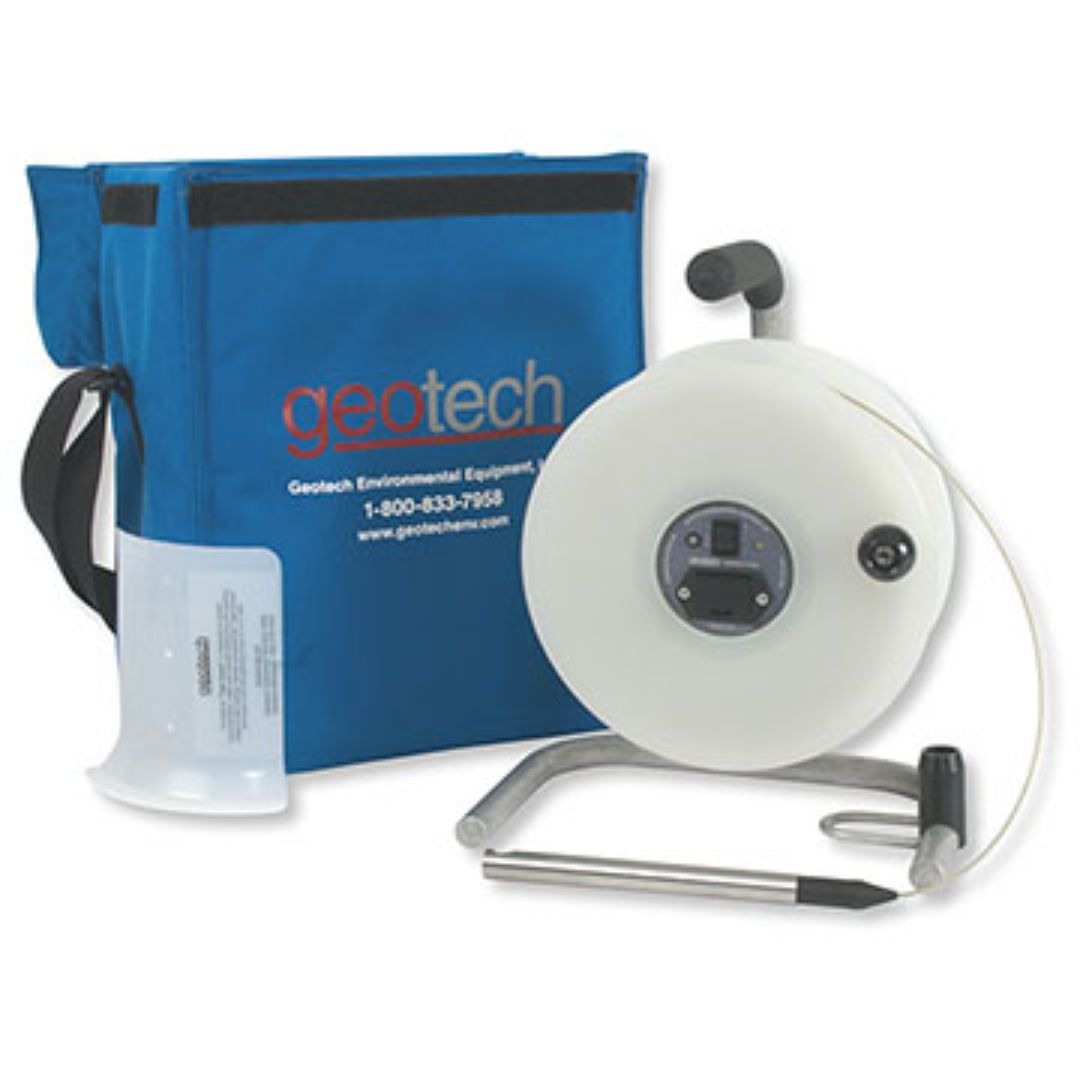

Geotech Interface Meters
The Geotech Interface Meter can be used in numerous applications including measuring oil and water levels in monitoring wells, detecting tank leakage and obtaining accurate measurements of water levels. When the Geotech Interface Meter is lowered down a well and contacts the product layer, a solid tone and green light alarm is activated on the reel. When the probe detects water, the tone begins to oscillate and the green light blinks on/off.
Features:
- Precise oil/water layer detection
- Highly visible printed markings in engineering or metric units
- HDPE coated steel-core dog bone shaped tape
- Power saving auto sleep mode
- Buzzer and LED indicator
- Adjustable brake resistance
- Lightweight aluminum frame
- Field serviceable components
- Made in USA by Geotech Environmental Equipment, Inc.
- Carry Case Sold Separately | Geotech Case
Reel Specifications:
-
Reel Material:
- 100'-300' (30m-100m) - Solid Polypropylene Hub & Flange, Solid Aluminum Frame

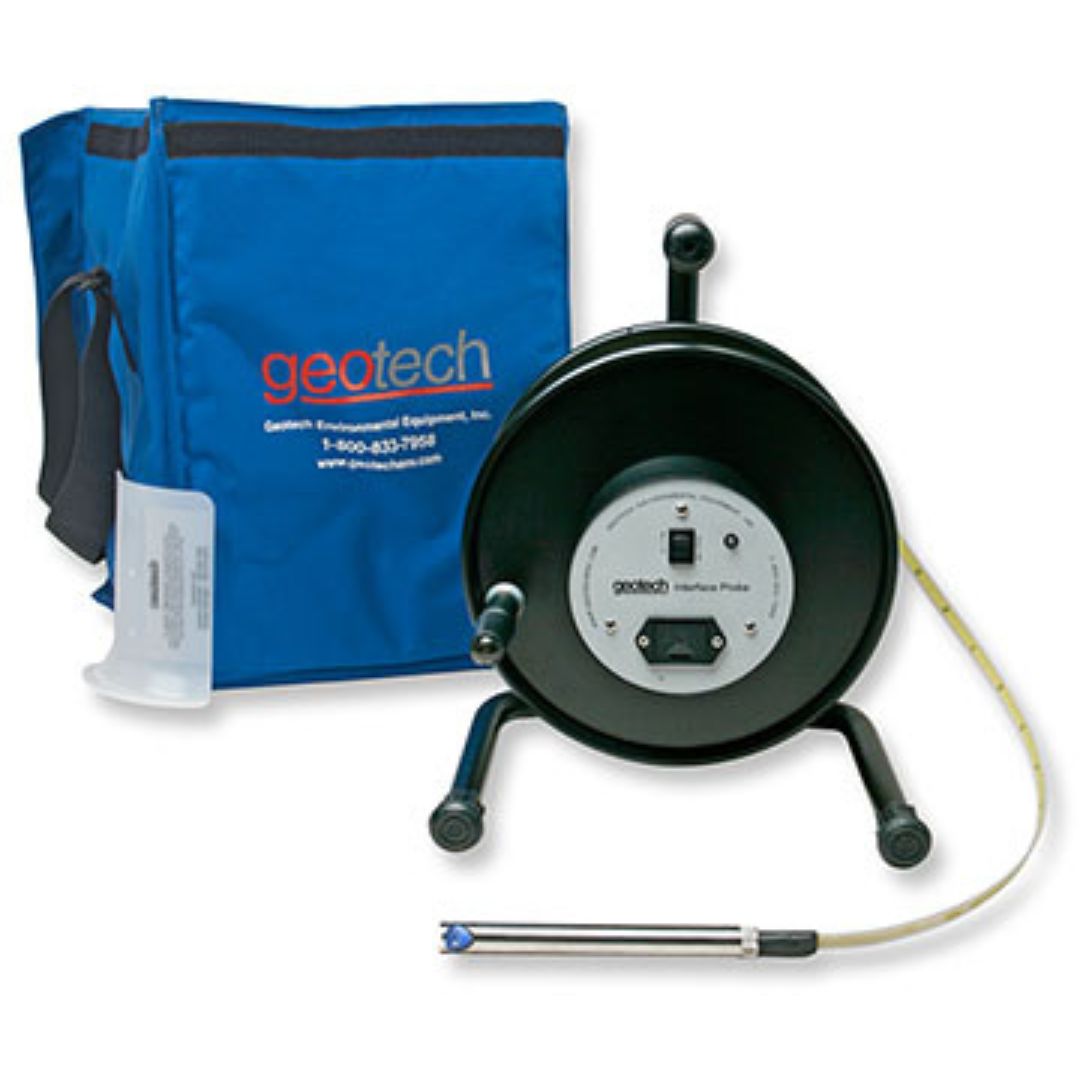

- 500'-1000' (152m-305m) - Powder Coated Steel Hub & Flange, Aluminum Frame
-
Power: 9 Volt DC alkaline Battery
- Self Shut Off Time: 5 Minutes
- Alarm: Audible and Visual
- Warranty: 1 Year
Tape Specifications:
-
Tape Material: HDPE coated steel-core tape with Buna-N
-
Resolution:
- Imperial: 1/100 per foot
- Metric: 1mm
-
Tape Markings: Printed on steel-core then HDPE jacketed
Probe Specifications:
- Materials: Glass, PTFE, 316 stainless steel, Buna-N
- Dimensions: 5/8" OD x 6.5" L (1.59cm O.D. x 16.5cm L)
- Minimum Detectable Hydrocarbon Thickness: .0312" (.8mm)
-
Maximum Submergence: 100 PSI (6.9 bar)
