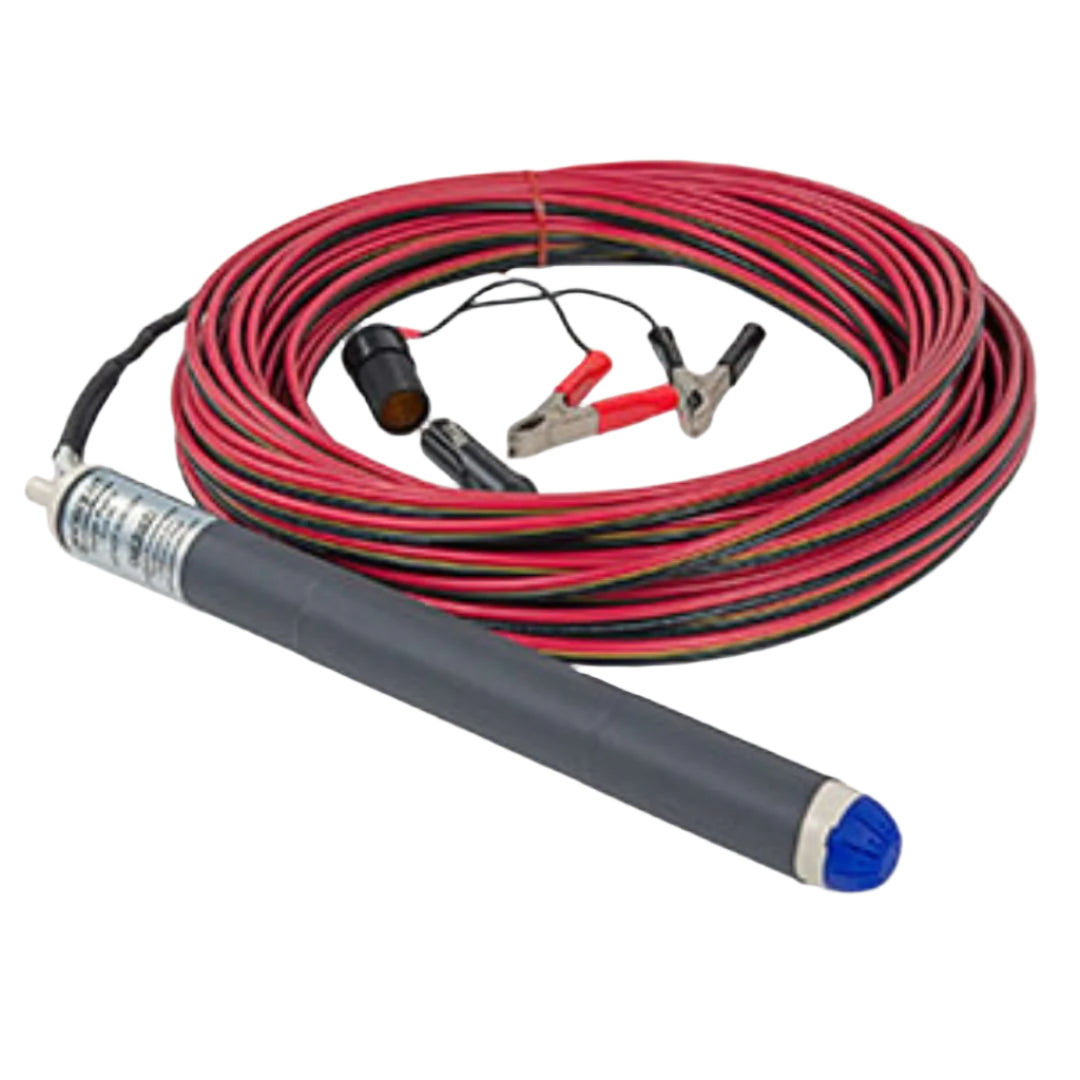

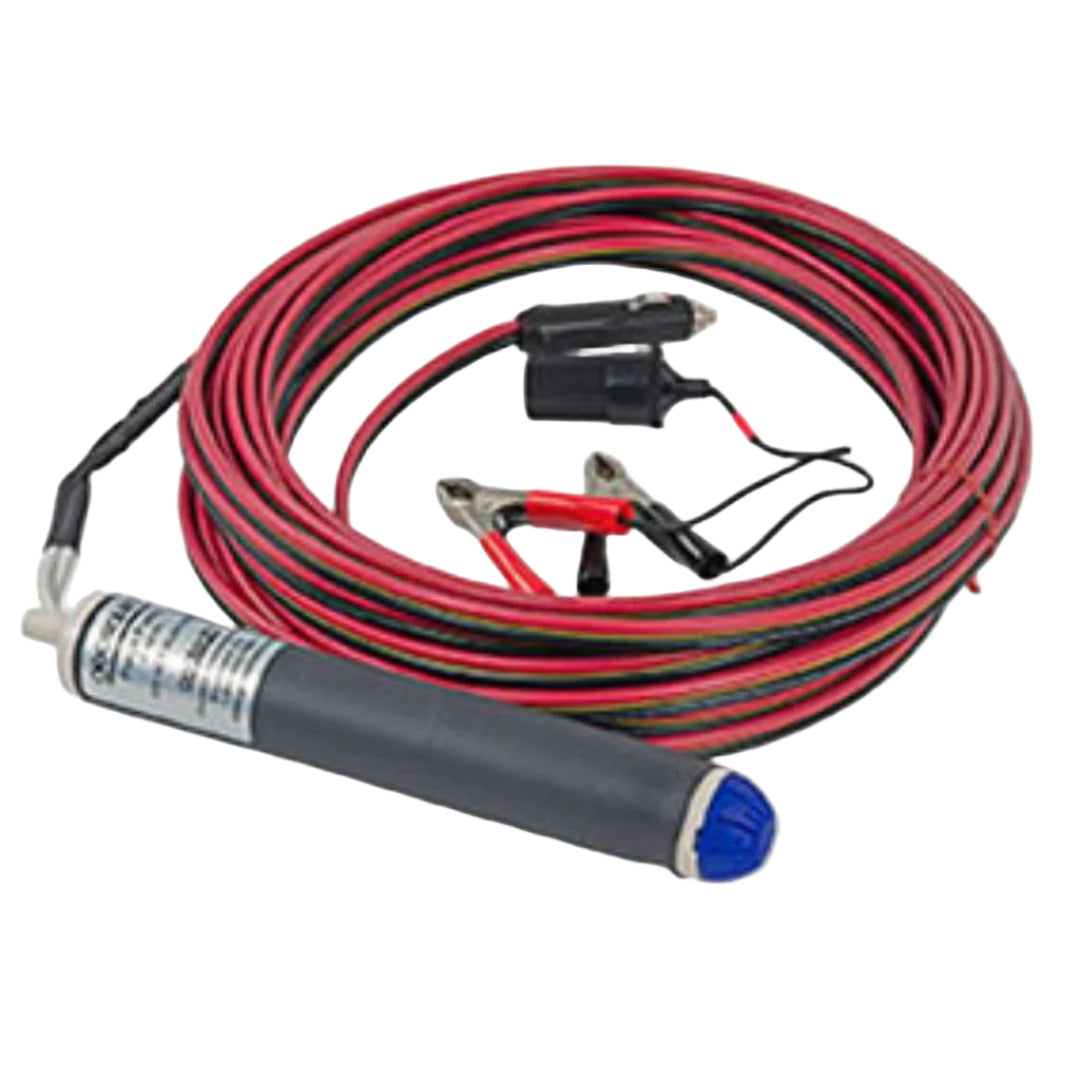

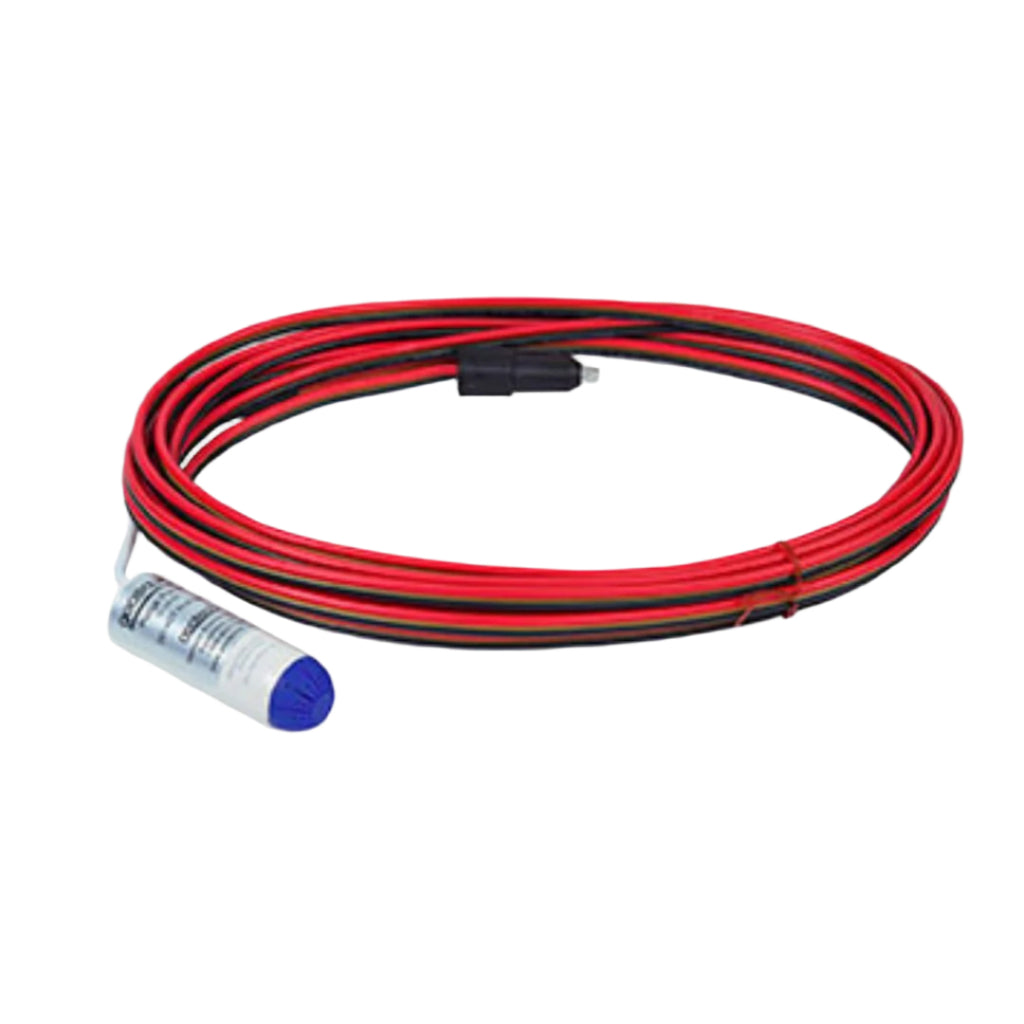

Geotech Geosquirt Purge Pumps
A purge pump is used to remove stagnant water from a monitoring well prior to sampling. The purged water is replaced by fresh groundwater from the aquifer. Purging may need to be repeated three or more times before the water in the well is representative of the surrounding aquifer.
Geotech's purge pumps use sealed electric centrifugal motors that get their power from a 12 Volt DC source, such as the Geotech 12 Volt DC Portable Rechargeable Battery. They are economical enough to be disposable, but can be easily cleaned and decontaminated for re-use. Unlike most submersible pumps they are not heavy and bulky and can easily fit into 5cm (2") wells.
Geotech BUuck Controllers for Geosquirt Pumps
Features:
- Operates to depths of 90' (27 m)
- Very economical and reliable
- Flow rates up to 2.5 GPM (9.5 LPM)
- Ideal for 2" (5 cm) diameter or larger monitoring well
- Requires an independent 12V DC power supply
- Optional portable reel system with tubing
Specifications:
| Single Stage | Double Stage | Triple Stage | ||
|
Dimensions |
1.43" D x 5" L (3.6cm D x 12.7cm L) |
1.68" D x 10.5" L (4.27cm D x 26.67cm L) |
1.68" D x 16" L (4.27cm D x 41cm L) |
|
| Outlet | Requires ⅜" (10 mm) I.D. tubing |
Requires ⅜" (10 mm) I.D. tubing |
Requires ⅜" (10 mm) I.D. tubing |
|
| Optional Outlet Adapter |
Optional fitting allows ½" (13 mm) tubing |
Optional fitting allows ½" (13 mm) tubing |
Optional fitting allows ½" (13 mm) tubing |
|
| Power | Requires an independent 12V DC source |
Requires an independent 12V DC source |
Requires an independent 12V DC source |
|
| Current Draw | 3.3 amps | 6.2 amps | 8.0 amps | |
| Voltage Range | 10V-15V | 10V-15V | 10V-15V | |
| Principle of Operation |
Intermittently rated centrifugal pump |
Intermittently rated centrifugal pump |
Intermittently rated centrifugal pump |
|
| Operating Temperature |
In water up to 140°F (60°C) do not freeze pump |
In water up to 140°F (60°C) do not freeze pump |
In water up to 140°F (60°C) do not freeze pump |
|

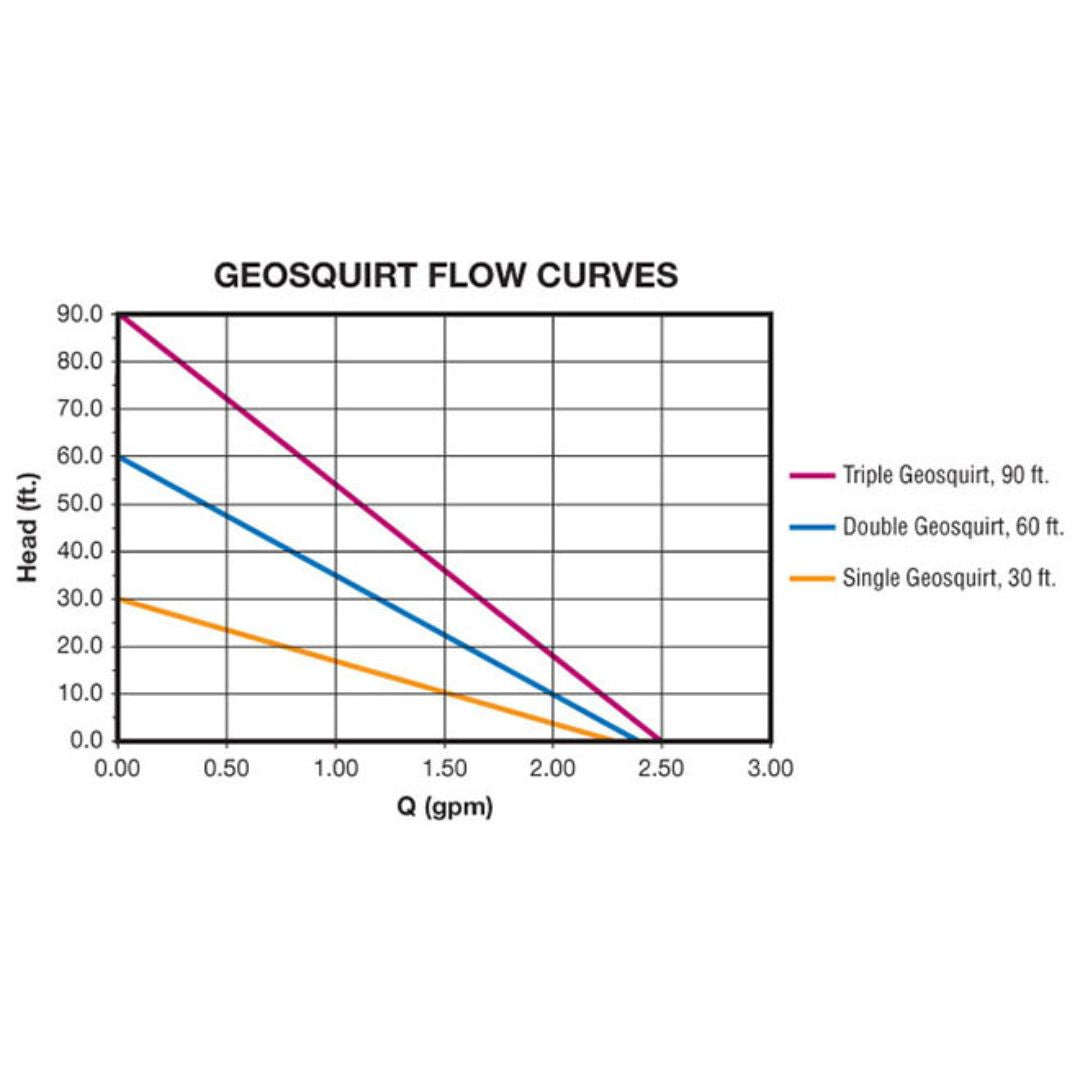

| Flow Rate | Up to 2.5 GPM (9.5 LPM) | Up to 2.5 GPM (9.5 LPM) | Up to 2.5 GPM (9.5 LPM) | |
| Maximum Recommended Depth |
30 feet (9 m) | 60 feet (18 m) | 90 feet (27 m) | |
| Material of Casing | ABS plastic | ABS plastic | ABS plastic | |
| Material of Seal | Rubber | Rubber | Rubber | |
| Length of Motor Lead |
30 feet (9 m) | 60 feet (18 m) | 90 feet (27 m) | |
| Recommended Duty Cycle |
5 min. off/15 min. on | 5 min. off/15 min. on | 5 min. off/15 min. on |
Resources:
Installation & Operations Manual
A. If not satisfied with a PRM product for any reason, customers should contact PRM. Returns submitted within 30 days of the original invoice and must be in original packaging and in new condition. Please contact PRM to provide additional information regarding a return.
B. PRM Limited Warranties are applicable to PRM branded products, non-transferable, and warrant against manufacturer defects in workmanship and materials under normal use for 1 year after the date of the PRM invoice unless otherwise stated. If PRM approves the product is accepted for return during the limited warranty period, PRM may repair, replace, or refund the amount paid by the customer.
C. Non-PRM branded products retain their manufacturer's warranty. Customer should contact the manufacturer for warranty service.
D. PRM is not liable for claims arising out of product misuse, improper product selection, improper installation, and/or product modification. PRM's liability in all events is limited to the purchase price paid for the product.
The vast majority of PRM products ship directly from our facility within one business day. High value items such as blowers, pumps, and fans may have extended lead times due to global supply. Please consider contacting PRM prior to your purchase if it's necessary to know an exact delivery date and time.
IMPORTANT: All goods must be inspected immediately upon delivery. Any shipping damage, missing items, or product defects must be reported to both PRM Filtration and the shipping carrier within 24 hours of delivery. Failure to report issues within this timeframe may result in your claim being denied. Please retain all original packaging materials, as they may be required for filing a damage claim.
