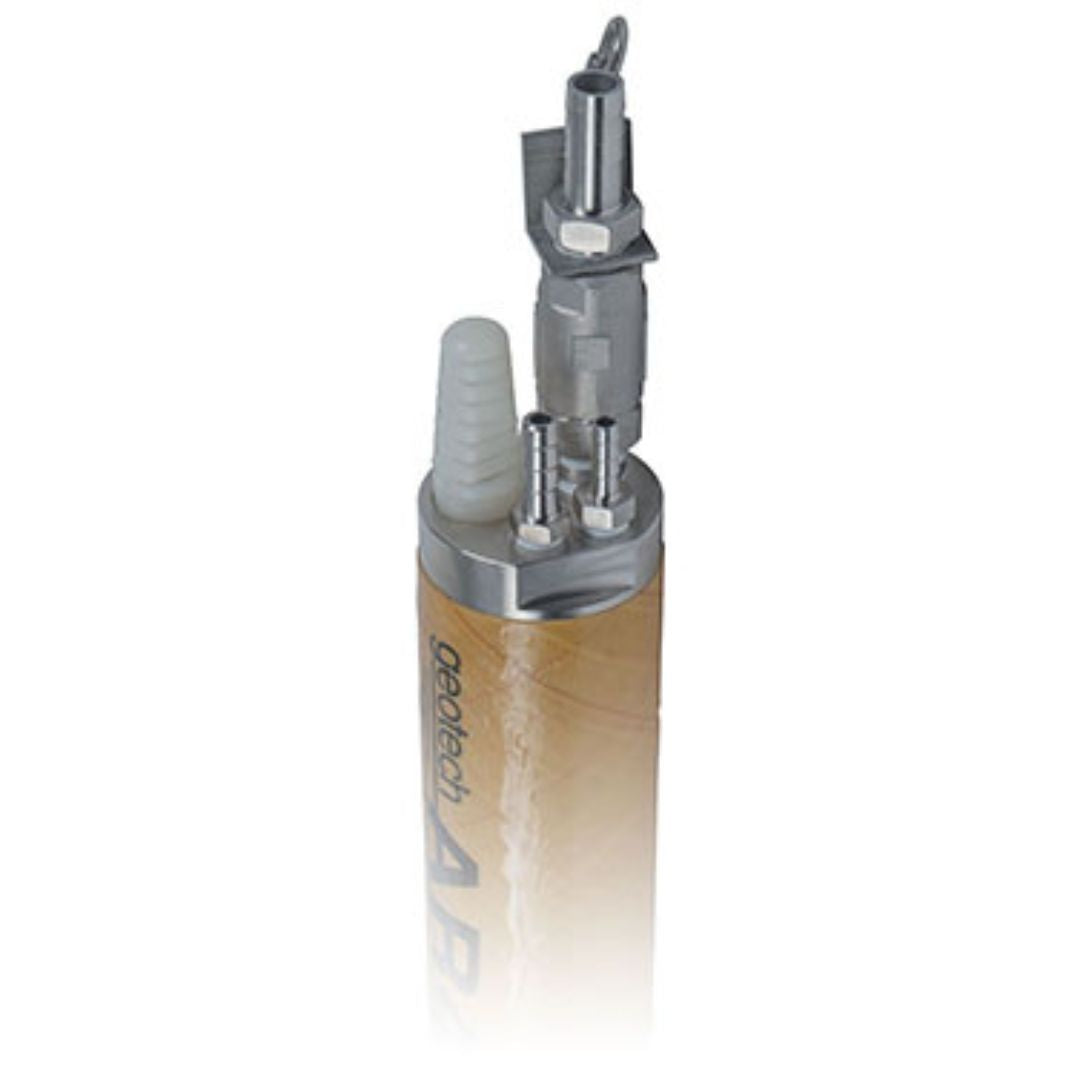

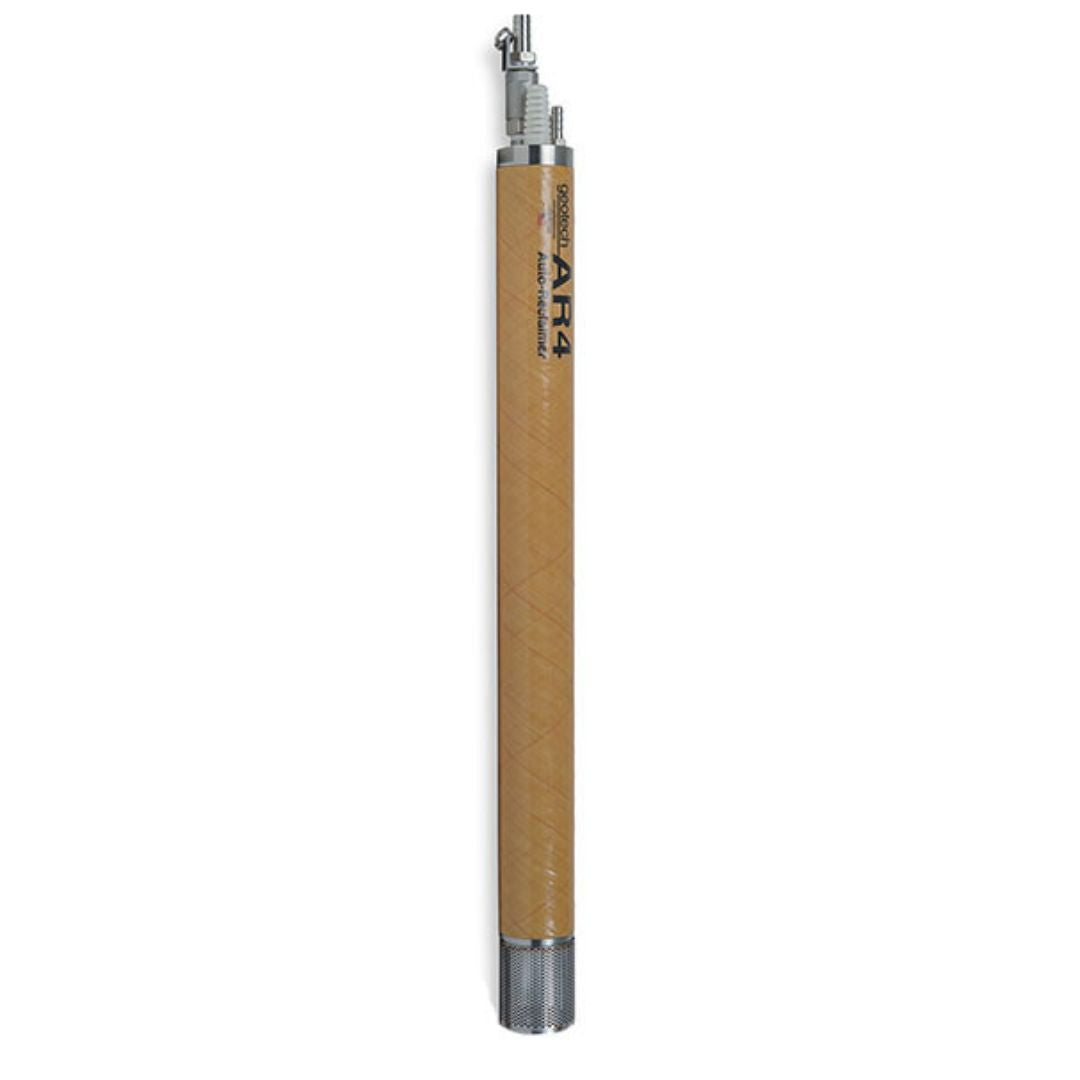

Geotech AR4 4 Inch Auto-Reclaimer - Short/Low Activation - 48"
The AR4 is designed to pump floating hydrocarbons, leachate, and condensate in total fluids applications. The AR4 is operated automatically, and needs no controller. Everything needed to operate the system is built into the pump. The design withstands the harshest and most corrosive environments such as landfills or mines.
Features:
- Intrinsically safe design and approved for hazardous environments
- Fits 4" or larger diameter wells
- Ability to pump from 250' below ground
- Can pump particles up to ⅛" diameter
- Consistently pumps fluids as light as 0.70 SpG reliably
- New adjustment-free valve mechanism – no magnets
- Improved float design for maximum buoyancy and chemical compatibility
- Optimal working pressures as low as 1 psi above head pressure
- Standard light-weight composite housing, corrosive resistant 316 stainless steel and PVDF parts for less maintenance
- Fast and simple disassembly for easy maintenance
Specifications:
| SHORT/LOW ACTIVATION |
LONG | EXTENDED | |
| Outside Diameter: | 3.5" (8.9 cm) | ||
| Lengths Up To: | 48" (122 cm) | 60" (152 cm) | 72" (183 cm) |
| Weight: | 13.5 lbs. (6 kg) | 15.6 lbs. (7 kg) | 17.7 lbs. (8 kg) |
| Minimum Activation Level: Bottom Fill*** Top Fill*** |
35" (89 cm)/17" (43 cm) 42.5" (108 cm) |
47" (119 cm) 54.5" (138.43 cm) |
59" (150 cm) 66.5" (169 cm) |
| Operating Pressure Range: | 10-120 psi (0.7-8.5 kg/cm2) | ||
| Maximum Operating Temp: | 220°F (104°C) | ||
| Fluid Volume/Cycle*: | .7 gal. (2.6 liter) | 1.0 gal. (3.8 liter) | 1.5 gal. (5.6 liter) |
| Maximum Flow Rate**: | 8.5 gpm (32 lpm) | ||
|
Standard Fittings: Fluid Discharge Air Supply Air Exhaust |
SS Barb ¾" x ¾" MPT ⅜" x ⅜" MPT ½" x ⅜" MPT |
||
