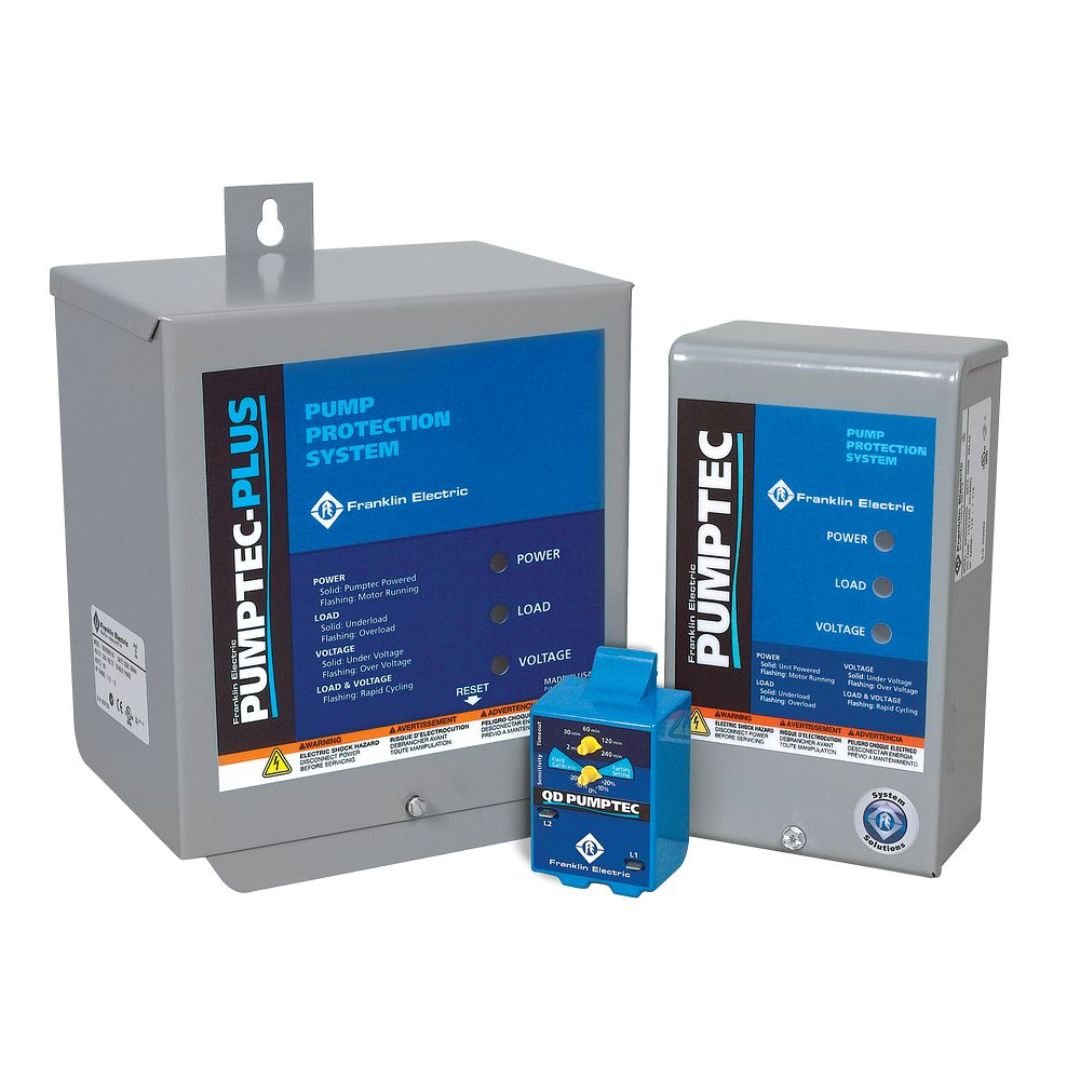

Franklin Pumptec Single-Phase Pump Protectors
Franklin’s single-phase pump protection devices have been exclusively designed to help extend the life of Franklin motors. This single-phase pump protection monitors and diagnoses motor load to prevent pump or motor failure due to adverse conditions such as low-flow wells, pump damage, clogging, bound pump, or power mishaps.
Models:

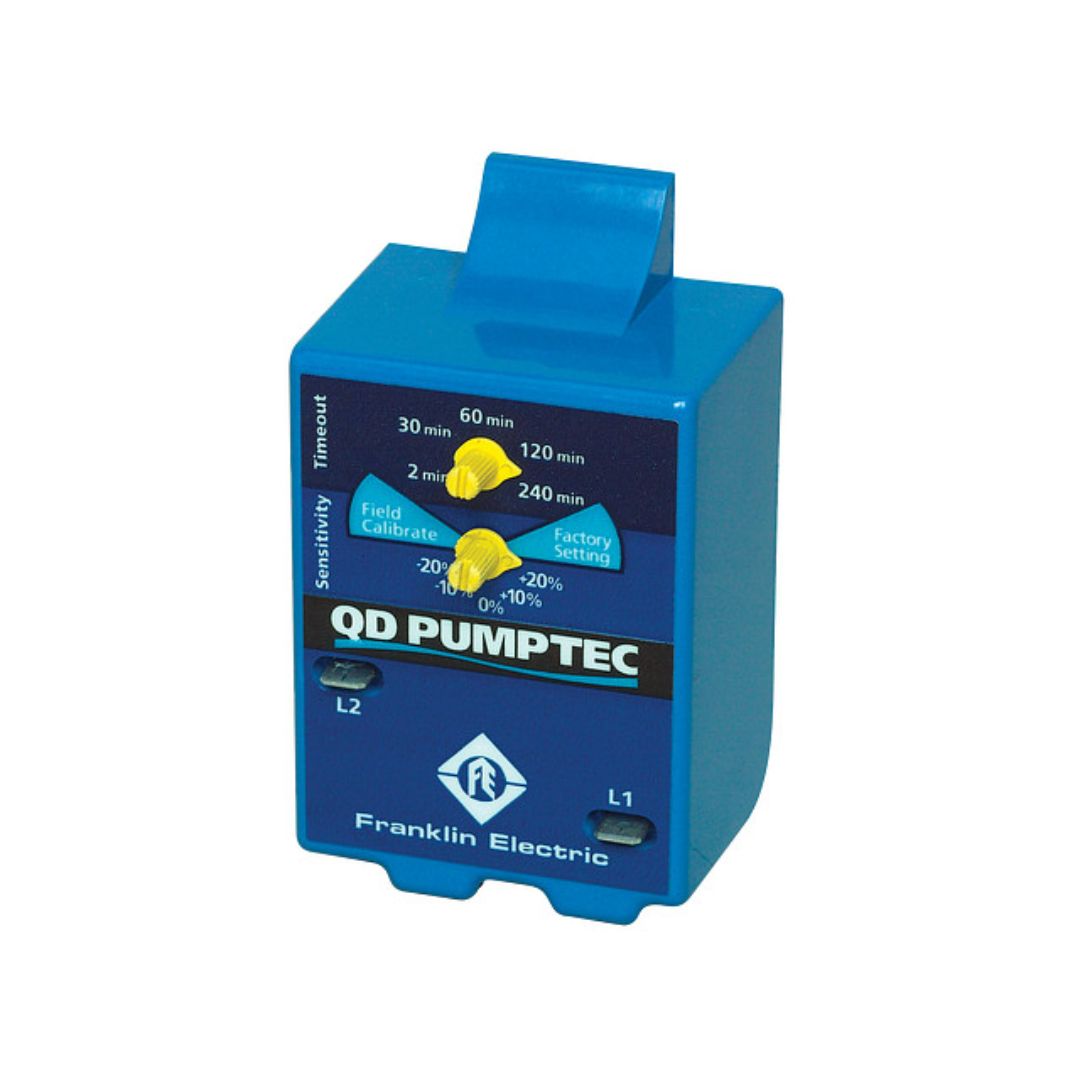

QD Pumptec - 5800070600
Exclusively designed for Franklin QD Relay Control Boxes, QD Pumptec is a solid state sensing device that monitors motor load and incoming power to automatically shut off a Franklin single-phase, 3-wire motor when related fault conditions are detected. QD Pumptec easily plugs into 3-wire Franklin QD Control Boxes with no additional wiring or tools required.
- QD Pumptec allows the user to choose the standard factory calibration for underload or to calibrate to a particular system. Control knobs make it easy to adjust sensitivity and timeout sessions.
- QD Pumptec easily plugs into 3-wire QD Relay Control Boxes in minutes, without additional wiring or tools.

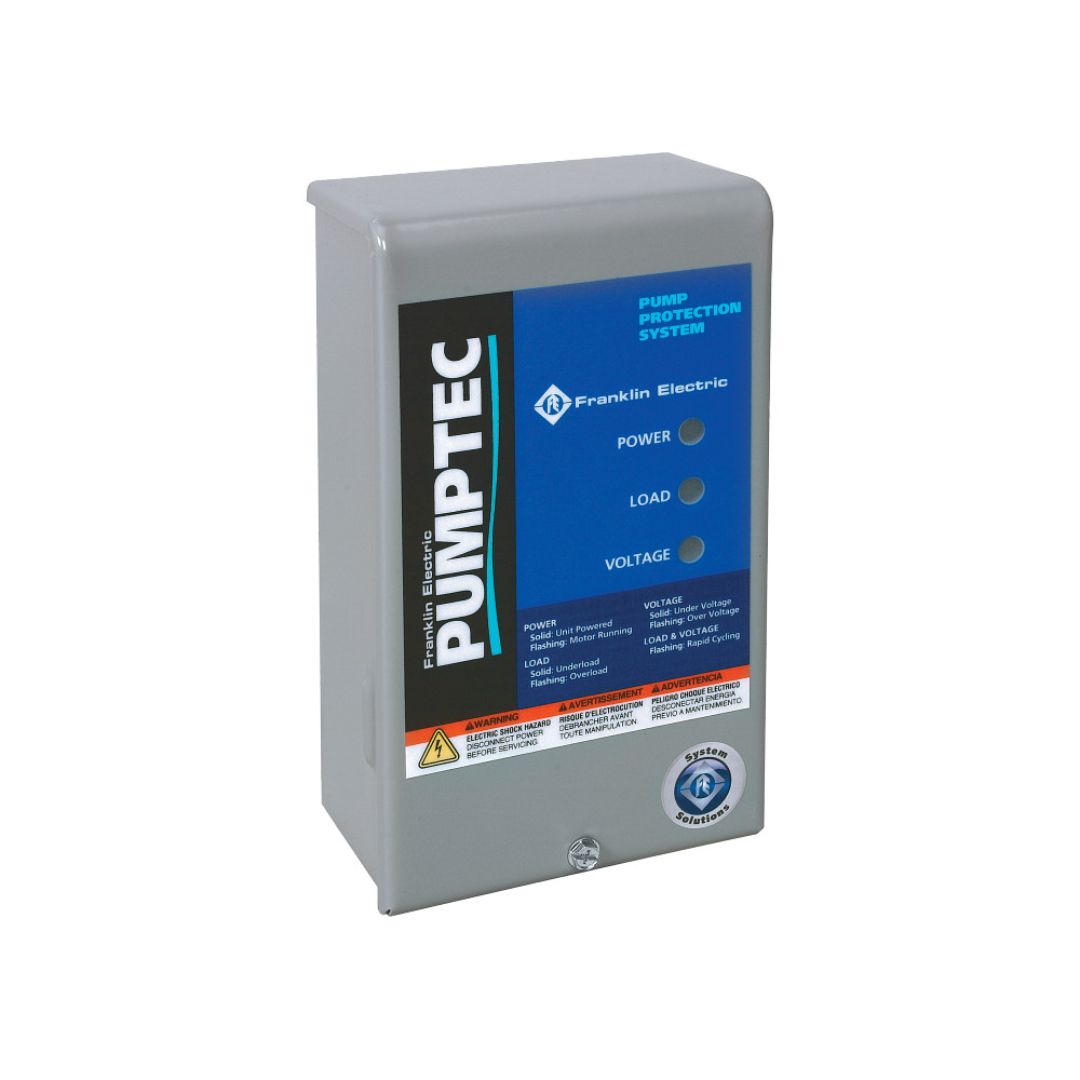

Pumptec - 5800020610
Pumptec is a microcomputer-based device that monitors motor load and power line conditions to provide protection against dry well conditions, waterlogged tanks, and abnormal line voltage conditions. Pumptec interrupts power to the motor whenever the load drops quickly or below a preset level. Indicator lights provide complete system status.
- Easily adjustable sensitivity settings
- Run and fault indicator lights
- Heavy duty relay
- Alarm circuit contacts
- UL/CSA Listed

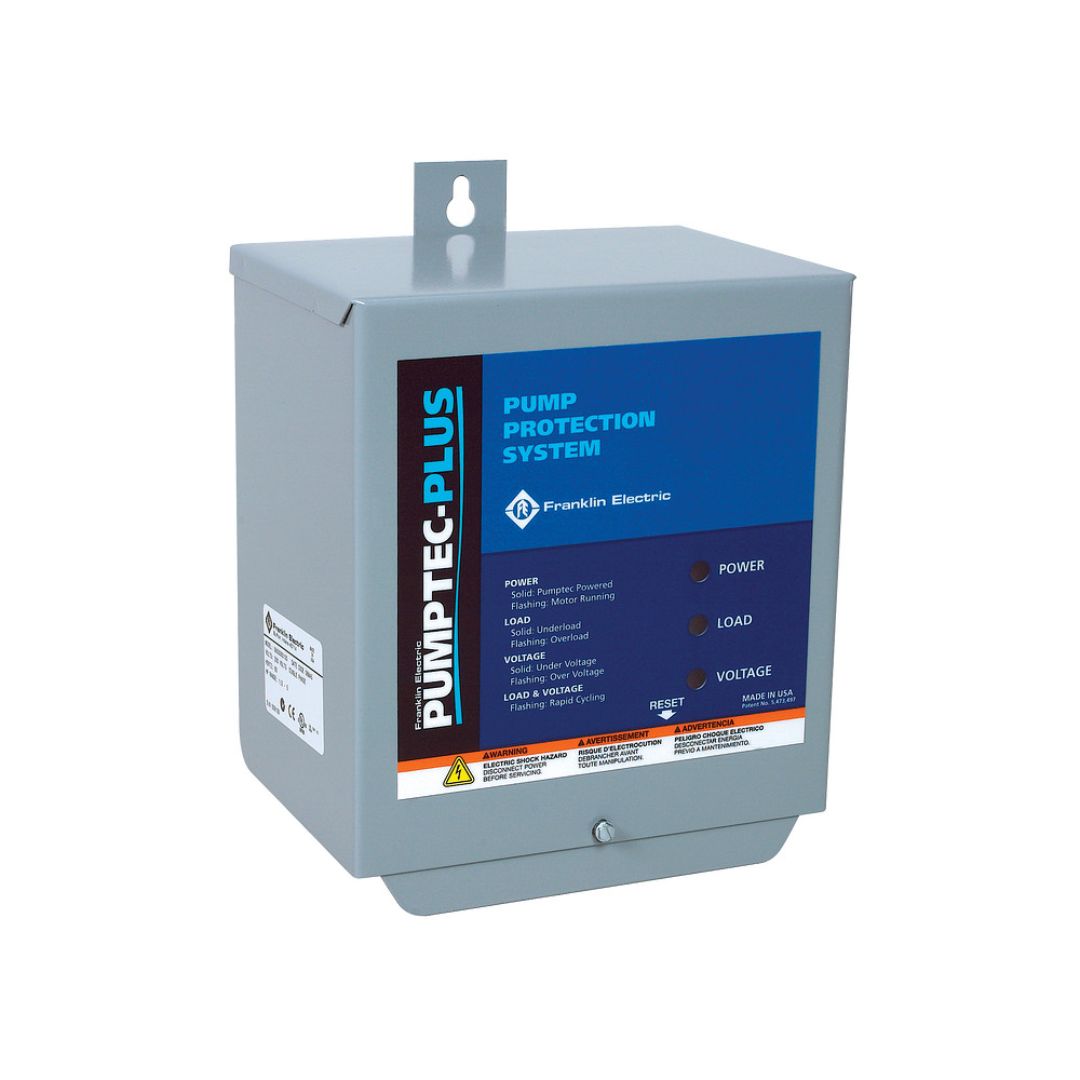

Pumptec-Plus - 5800060100
The Pumptec-Plus solid state pump protection system is designed for 1/2 to 5 hp single-phase submersible pump motors. Pumptec-Plus protects against a variety of fault conditions. Run and fault lights make diagnosis quick and easy. Push button Snap Shot™ calibration makes Pumptec-Plus simple to install and an effective troubleshooting tool.
- Push button calibration
- Run and fault indicator lights
- Heavy duty (30A) contractor
- Works with PSC, split-phase CSCR and CSIR motors
- UL/CSA listed
Specifications:
| QD PUMPTEC | PUMPTEC | PUMPTEC-PLUS | |
|---|---|---|---|
| Model Number | 5800070600 | 5800020610 | 5800060100 (60 Hz) |
| HP Rating | 1/3 to 1 | 1/3 to 1.5 | 1/2 to 5 |
| Voltage Rating | 230 V | 115 V / 230 V | 60 Hz - 230 V 50 Hz - 220 V |
| Frequency | 60 Hz | 50 / 60 Hz | 50 or 60 Hz |
| Mounting Location |
Inside Franklin QD Control Box | Indoor/Outdoor | Indoor/Outdoor |
| Indicator Lights | No | Yes - Load/Voltage/Status | Yes - Load/Voltage/Status |
| Remote (IR) Accessible | No | Yes | No |
| Response Time | 3 Seconds | 3 Seconds | 3 Seconds |
| Reset Time | Adjustable: 2 to 240 min. |
Adjustable: 2 to 120 min. |
Adjustable: 1 to 256 min. |
| Alarm Contact Rating | N/A | 1 Amp 115 V / 230 V | N/A |
| Under/ Overvoltage Time-out |
2 minutes | 2 minutes | 2 minutes |
| Operating Temp Range | -15 °F to 130 °F | -15 °F to 130 °F | -15 °F to 140 °F |
| Sensitivity Adjustment | ± 20% | 40 to 90% SFL | N/A |
| Overvoltage Trip | +10% | +10% | +10% |
| Undervoltage Trip | -10% | -10% | -10% |
