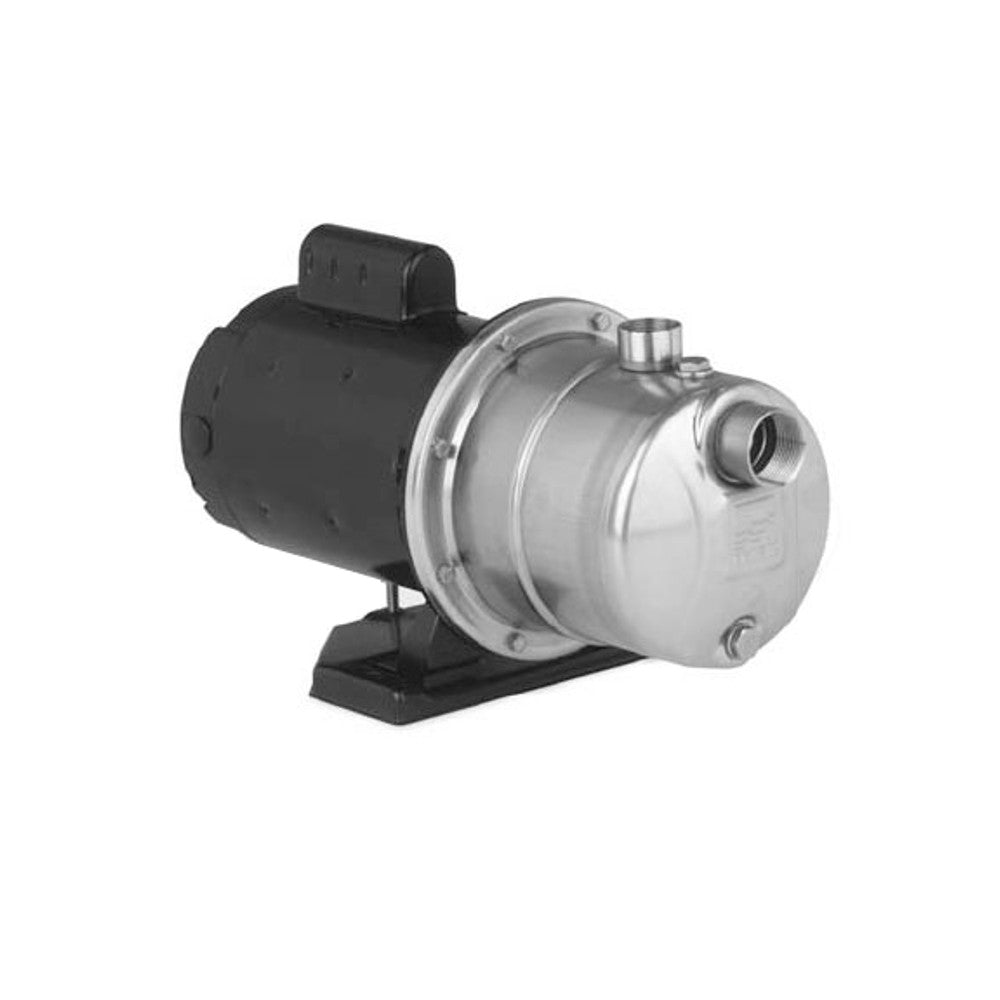

Ebara Pumps Stainless Steel Self-Priming Jet Pump
Model JEU80610T1C
Constructed of bulge-formed stainless steel, the model JEU self-priming jet pump is designed for corrosion resistance, dependable performance and high-efficiency, continuous duty. High-quality stainless steel components are stronger, dimensionally consistent and lighter weight compared to conventional cast iron, making EBARA centrifugal pumps competitively priced and an economical choice. The model JEU is suitable for many residential and commercial general water applications that require corrosion resistance including water supply, pressure boosting, small irrigation systems and draining of pools/tanks.
NSF/ANSI 61 Annex G listed
Specifications
- Suction Size: 1 1/4″ NPT thread
- Discharge Size: 1″ NPT thread
- HP: 1 HP
- Capacity: 1.5 to 18.5 GPM
- Head: 63 to 190 Ft.
- Max. working pressure: 125 PSI (9 Bar)
- Temperature: 113 ̊F (45 ̊C)
- Liquid: clean water
Key Features
- Close coupled design – saves space; simplifies maintenance and installation
- Stainless steel and Noryl liquid end components – high quality; corrosion resistance
- Versatile mounting – can be installed horizontally or vertically
- Back pullout construction – assembly and overhaul of the impeller and seal without distorting suction and discharge connections
- Top centerline discharge and foot support under casing – ensures self-venting and reduces misalignment from pipe loads
- High operating efficiency – lowers operating costs
- High quality mechanical shaft seals and o-rings – available for standard pumping requirements, or optional high temperature and chemical duty operation.
Applications
- Plant services
- Water supply systems
- Pressure boosting
- Ultrapure water systems
- Water reclamation
- Water treatment
- Aqueous cleaning
