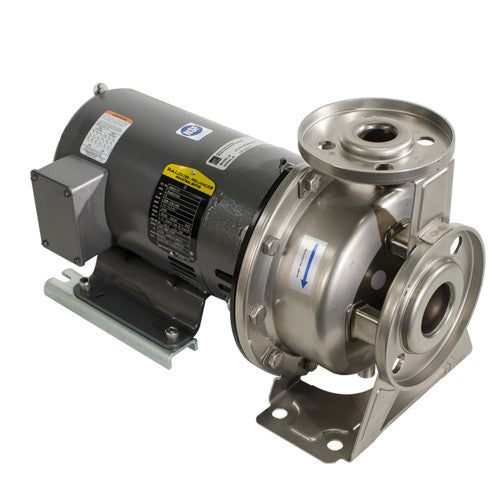

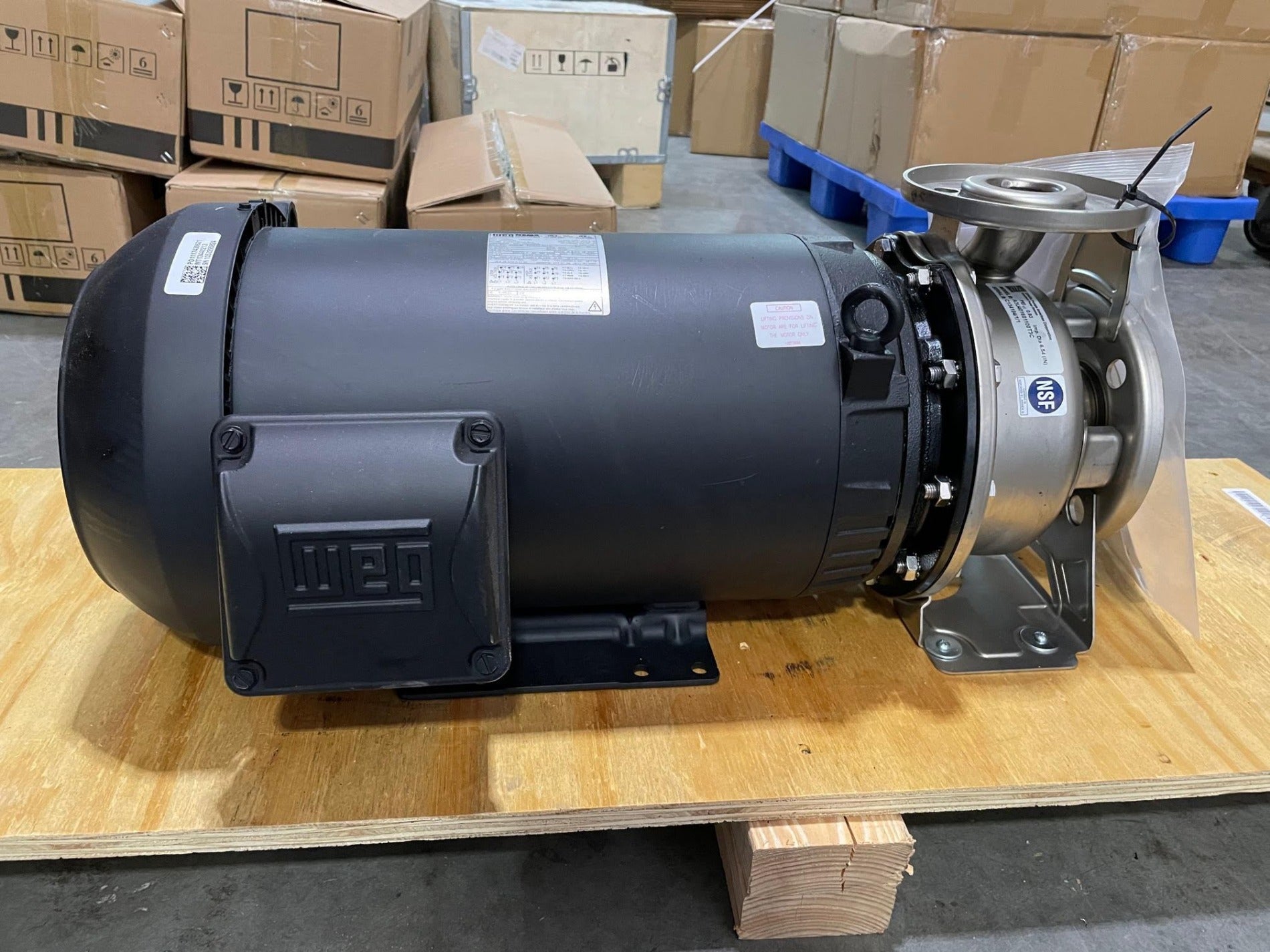

Ebara Pumps Stainless Steel Centrifugal Pump, 10 HP
The model 3U, 3U65 end suction centrifugal pump are constructed of bulge formed stainless steel and designed for corrosion resistance, dependable performance and rugged continuous duty. The 3U65 models extend the hydraulic performance range of the 3U series to 650 GPM.
Constructed of bulge-formed stainless steel, model 3U, 3U65 end suction centrifugal pumps are designed for corrosion resistance, dependable performance and high-efficiency, continuous duty. High quality stainless steel components are stronger, dimensionally consistent and lighter weight compared to conventional cast iron, making EBARA centrifugal pumps competitively priced and an economical advantageous choice. The model 3U, 3U65 series are suitable for almost any commercial and industrial general water applications that require corrosion resistance including those with moderately aggressive liquids.
Key Features
Close coupled design – saves space; simplifies maintenance and installation
Stainless steel liquid end components – high quality; corrosion resistance
Versatile mounting – can be installed horizontally or vertically
Back pullout construction – assembly and overhaul of the impeller and seal without distorting suction and discharge connections
Top centerline discharge and foot support under casing – ensures self-venting and reduces misalignment from pipe loads
High-efficiency – lowers operating costs
High quality mechanical shaft seals and o-rings – available for standard pumping requirements, or optional high temperature and chemical duty operation
Specifications:
Operating Conditions
- Flow, rated: 180.9 USgpm
- Differential head / pressure, rated (requested): 138.6 ft
- NPSH available, rated: Ample
Performance
- Differential head / pressure, rated (actual): 138.6 ft
- Efficiency: 76.59 %
- Speed, rated: 3450 rpm
- NPSH required: 11.57 ft
- Stages: 1
- Impeller diameter, rated: 166 mm
Liquid
- Liquid type: Water
- Temperature, max: 68.00 deg F
- Fluid density, rated / max: 1.000 SG
- Viscosity, rated: 1.00 cP
