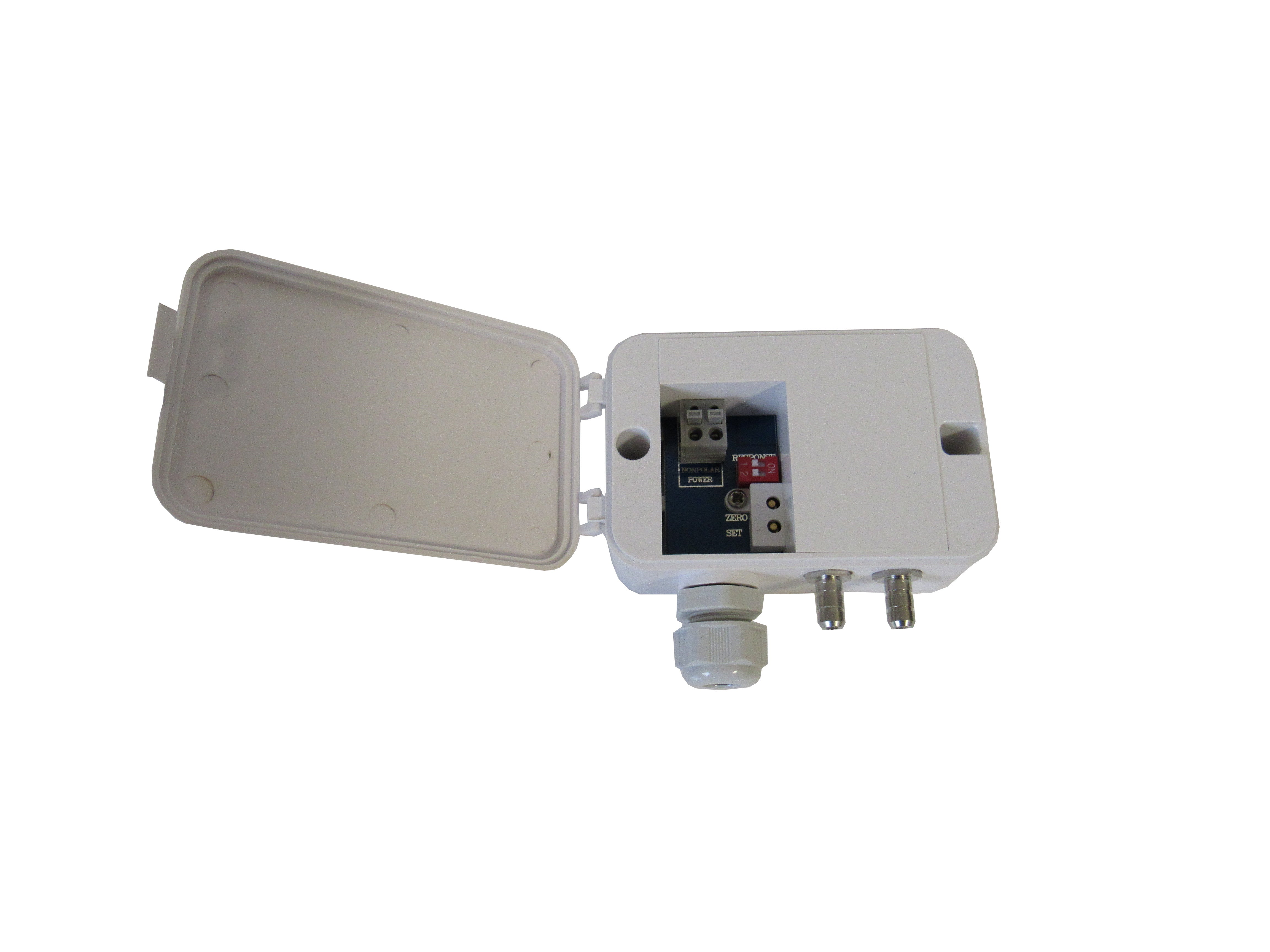

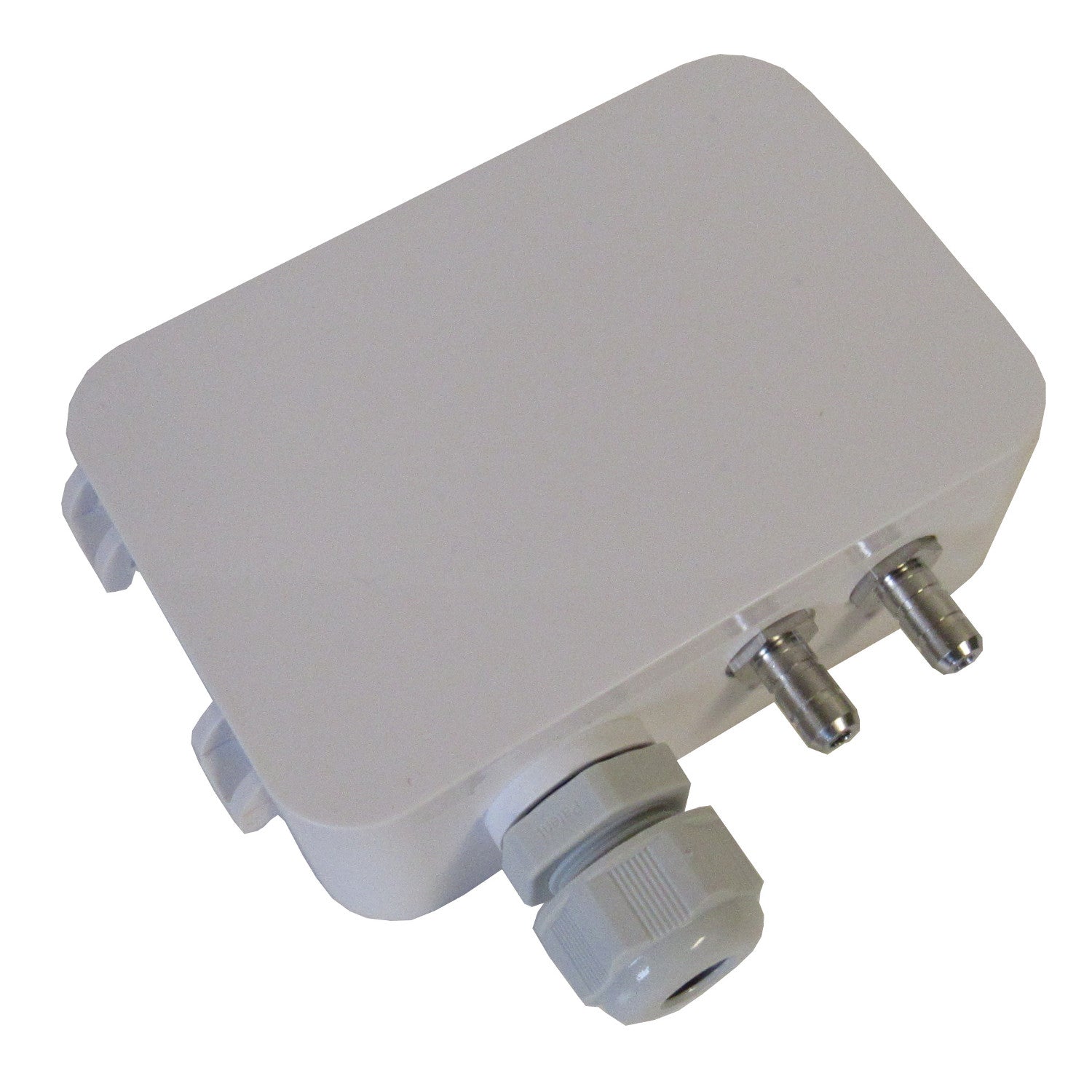

PRM MICRO DIFFERENTIAL PRESSURE TRANSMITTERS, 4-20 mA 24 VDC
PRM offers Micro Differential Pressure Transmitters for measuring the difference between two pressures, one connected to each side of the sensor. Differential pressure sensors are used to measure many properties, such as pressure drops across oil filters or air filters, fluid levels (by comparing the pressure above and below the liquid) or flow rates (by measuring the change in pressure across a restriction).

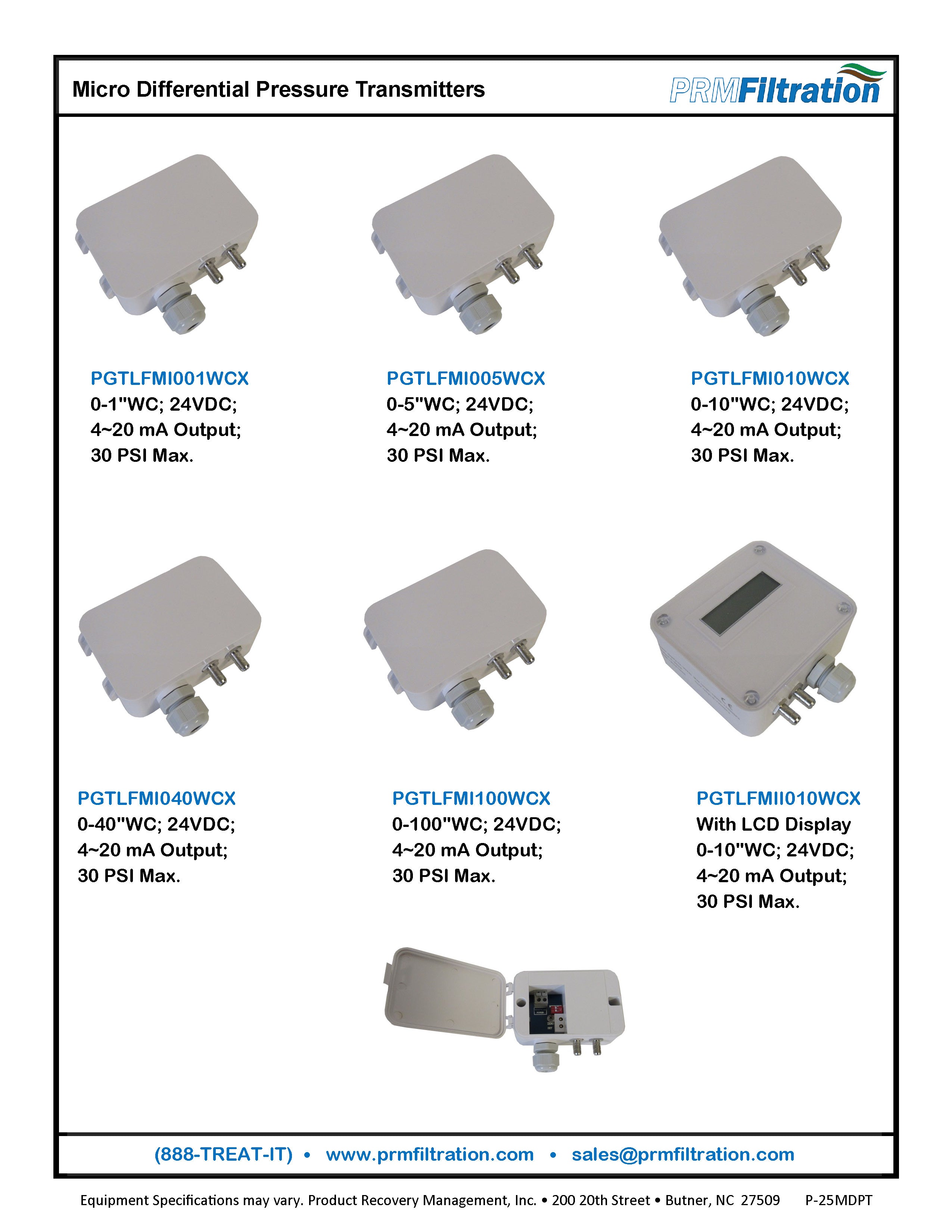

Available Ranges:
- 0-1" WC; 24 VDC; 4~20mA Output; 30 psi max.
- 0-5" WC; 24 VDC; 4~20mA Output; 30 psi max.
- 0-10" WC; 24 VDC; 4~20mA Output; 30 psi max.
- 0-40" WC; 24 VDC; 4~20mA Output; 30 psi max.
- 0-100" WC; 24 VDC; 4~20mA Output; 30 psi max.
- 0-10" WC Micro Differential PSI Transmitter with LCD Display; 24VDC; 4~20 mA Output; 30 PSI MAX.
Specifications:
MAXIMUM PSI: 30 PSI
OUTPUT SIGNAL: 4-20mA
POWER SUPPLY: 24 VDC
ACCURACY: +/- 1% FS
WORKING TEMPERATURE:14-140° F
BARBED CONNECTIONS USE 3/16 ID X 5/16 OD TUBING
LIMITED WARRANTY FOR ALL PRM PRODUCTS.
A. If not satisfied with a PRM product for any reason, customers should contact PRM. Returns submitted within 30 days of the original invoice and must be in original packaging and in new condition. Please contact PRM to provide additional information regarding a return.
B. PRM Limited Warranties are applicable to PRM branded products, non-transferable, and warrant against manufacturer defects in workmanship and materials under normal use for 1 year after the date of the PRM invoice unless otherwise stated. If PRM approves the product is accepted for return during the limited warranty period, PRM may repair, replace, or refund the amount paid by the customer.
C. Non-PRM branded products retain their manufacturer's warranty. Customer should contact the manufacturer for warranty service.
D. PRM is not liable for claims arising out of product misuse, improper product selection, improper installation, and/or product modification. PRM's liability in all events is limited to the purchase price paid for the product.
SHIPPING & DELIVERY
Orders are normally shipped from our facility in North Carolina within 1-2 business days after the payment is made. It is very important that the correct shipping address is entered at checkout. We are not responsible for incorrect or undeliverable addresses. Shipping is automatically calculated using current published rates. Buyer pays all shipping charges. Most orders will ship via USPS, UPS, or Fedex depending on size and weight. We reserve the right to choose which carrier we ship through to offer you the lowest available rate. Due to the size and weight of certain item(s) sometimes we cannot ship using our usual methods (UPS , USPS etc.) We are very experienced with shipments of various sizes and weights, and have longstanding relationships with motor freight carriers, so generally get a very good rate. We will be happy to get a freight shipping quote for oversized/overweight items before the purchase is completed. For an accurate quote, please provide: Shipping Address with Zip Whether delivery address is commercial or residential If there is a loading/unloading dock and equipment (forklift) available onsite Every effort is made to expedite your delivery. However, once the item is shipped, delivery time is out of our control.The vast majority of PRM products ship directly from our facility within one business day. High value items such as blowers, pumps, and fans may have extended lead times due to global supply. Please consider contacting PRM prior to your purchase if it's necessary to know an exact delivery date and time.
IMPORTANT: All goods must be inspected immediately upon delivery. Any shipping damage, missing items, or product defects must be reported to both PRM Filtration and the shipping carrier within 24 hours of delivery. Failure to report issues within this timeframe may result in your claim being denied. Please retain all original packaging materials, as they may be required for filing a damage claim.
EXCHANGES:
We will replace items if they are defective or damaged. If you need to exchange defective or damaged items, contact us by email and send item toProduct Recovery Management, Inc. Returns/Exchanges
200 20th Street
Butner, North Carolina 27509.
Do not send us a damaged or defective item for exchange prior to contacting us. We will then contact you regarding your return. We cannot accept exchanges unless we have responded to your request.
