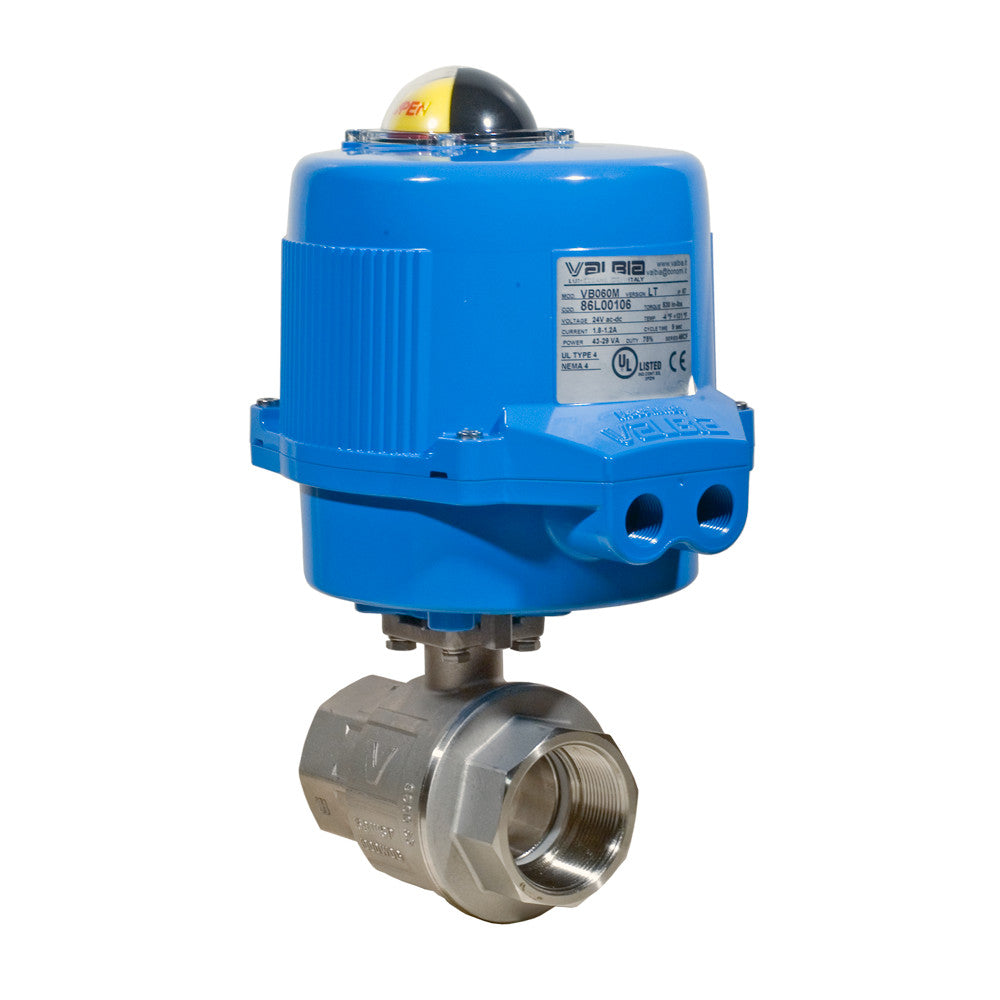

The Bonomi M8E067 valve is a Direct Mount, 2-way Stainless Steel, Full Port Ball Valve with Electric Actuator.
Available in sizes ranging from 1/4 inch to 3 inches.
Stainless Steel body with a stainless steel ball.
Includes PTFE seat material with an O-ring backing allowing for low operating torque. The valve has a full port, a blowout proof stem along with an electric actuator.
Pressure Rating: 600PSI WOG - 150 WSP - 1/4 to 3
Connection Size: 1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3"
Maximum Pressure: 1000 psi / 150 psi steam
Connection Type: Threaded (FNPT x FNPT)
Body: Stainless Steel
Ball: Stainless Steel (CF8M)
Max Process Temperature: -4° F to 366° F
Stem: Stainless Steel Blowout Proof
Voltage: 24V or 100-240VAC
- UL Approved Standard Metal Electric Actuator
- With Fail Safe Battery Backup
- With 4-20mA Positioning
- With Fail Safe Battery Backup and 4-20mA Positioning
