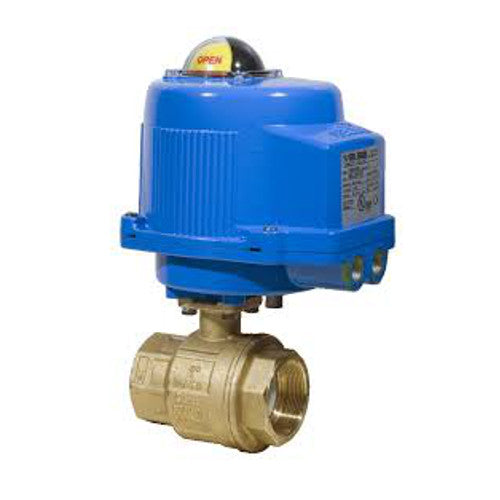

BONOMI M8E064 NPT LEAD FREE BRASS BALL VALVE WITH STANDARD METAL ELECTRIC ACTUATOR, DIRECT MOUNT, 2-WAY, FULL PORT
Bonomi North America series M8E064LF leadfree brass automated ball valve package features a rugged NEMA 4 metal housing and a full port 600 psi lead free brass ball valve. The electric actuator is loaded with extras such as: either a dual 100-240VAC or a 24AC/DC motor, a 12VDC option, two additional limit switches, a heat/thermostat, dome position indicator, dual ISO patterns, 75% duty cycle, 1/2” conduit connections and more. The valve is the very popular 250NLF series, lead-free, full port, low torque, with double O-ring stem seals for temperature fluctuation protection.
The 250NLF lead free ball valves come in sizes 1/2” -2”, and is NSF 61/372 certified for potable water use. The valve also features a four point ISO mounting pad, and a square stem for direct mounting
ACTUATOR FEATURES:
- Dual Voltages
- 24V AC/DC and 100-240V AC Models Available
- ISO 5211, F03/F05 base with 11mm female drive
- 75% Duty Cycle
- Anti-condensation heater, (when red wire is connected to power)
- High-Strength, Die Cast Aluminum Powder Coated Housing
- Temperature Range -4°F to 131°F
- NEMA 4 Housing
- Two Auxiliary Switches Standard
- Torque limiter standard
- Lead Free Brass
- Full Port, Sizes 1/4” to 2”
- ISO 5211 pad and square stem
- Pressure rating to 600 WOG
- Temperature range -4°F to 366°F
- Low torque design with back up O-ring seats
- Double O-ring stem seal design for extended cycle life
- 100% electronically tested in the open and closed position@80 Psi
- NSF 61/372
