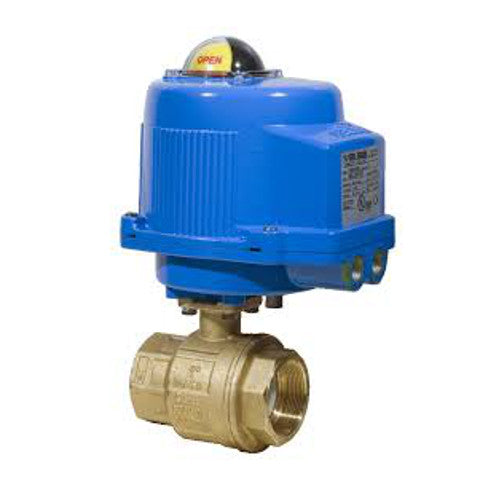

BONOMI M8E064-00 NPT BRASS BALL VALVE WITH STANDARD METAL ELECTRIC ACTUATOR, 100-240V - DIRECT MOUNT, 2-WAY, FULL PORT
Bonomi North America series M8E064 brass automated ball valve package features a rugged NEMA 4 metal housing and a full port 600 psi brass ball valve.
The M8E064 series package can be mounted either vertically or horizontally without damage to the stem area.
• 100-240V AC
• ISO 5211, F03/F05 base with 11mm female drive
• 75% Duty Cycle
• High-Strength, Die Cast Aluminum Powder Coated Housing
• Temperature Range -4°F to 131°F
• NEMA 4 Housing
• Two Auxiliary Switches Standard
• Torque limiter standard
• 250N - Brass w/ Chrome Plated Ball & Stem
• Full Port, Sizes 1/4” to 1-1/4”
• ISO 5211 pad and square stem
• Pressure rating to 600 WOG
• Temperature range -4°F to 366°F
• Low torque design with back up O-ring seats
• Double O-ring stem seal design for extended cycle life
• 100% electronically tested in the open and closed position@80 Psi
NOT for potable water use.
