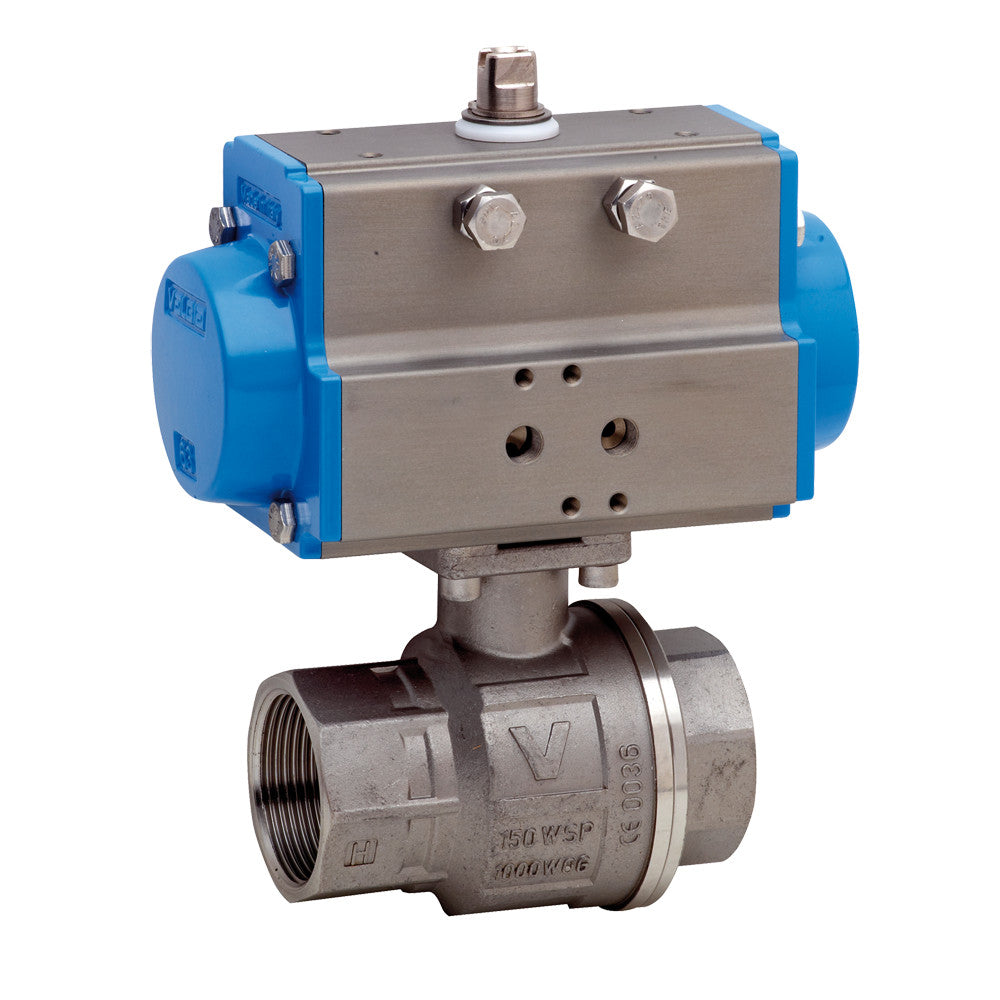

BONOMI 8P0134 STAINLESS STEEL BALL VALVE WITH SPRING RETURN PNEUMATIC ACTUATOR 1000 WOG
2 WAY, STAINLESS STEEL BALL VALVE WITH SPRING RETURN ACTUATOR
- Pressure Rating: 1000 psi - 150 psi steam
- Full port sizes: 1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3"
- Maximum Pressure: 1000 psi / 150 psi steam
- 100% electronically tested in the open and closed position at 80 psi
- Fail Position: Fail Close (options available)
- Connection Type: Threaded (FNPT x FNPT)
- Actuator: Spring Return
- Body: Stainless Steel
- Seat: PTFE seats with O-ring backing for low operating torque
- Ball: Stainless Steel (CF8M)
- Max Process Temperature -4° F to 366° F
- Stem: Stainless Steel (AISI 316), Blowout Proof
Direct mount stainless steel valve, 2-way Stainless Steel, Full Port Ball Valve with Pneumatic Spring Return Actuator.
The Bonomi 8P0134 stainless steels ball valve features a spring return actuator and is available in 10 sizes ranging from 1/4 inch to 3 inches. Built with a Stainless Steel body along with a stainless steel ball. The Bonomi 8P0134 includes a PTFE seat material with an O-ring backing allowing for low operating torque. The valve has a full port, a blowout proof stem along with a spring return actuator.
