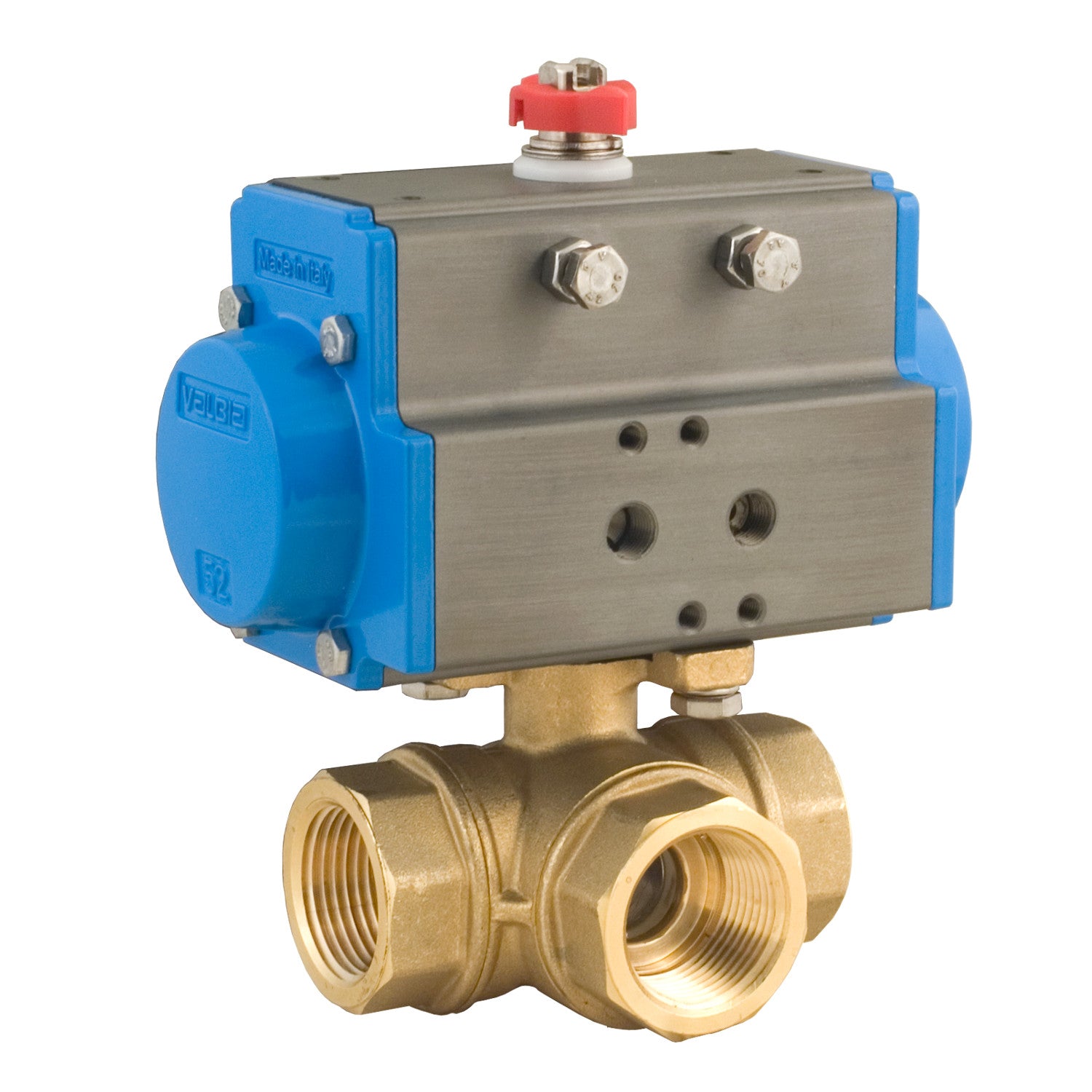

BONOMI 8P0130 3 WAY BRASS NPT L-PORT ACTUATED BALL VALVE WITH DOUBLE ACTING PNEUMATIC ACTUATOR
The Bonomi 8P0130 is a 3 way ball valve available in sizes ranging from 1/4 inch to 3 inches. The valve is built with a brass body along with a chrome-plated brass ball. PTFE seat material with an O-ring backing allowing for low operating torque. The valve has a full port, a blowout proof stem along with a double acting actuator.
NOT for potable water use.
- Pressure Rating 400 psi WOG, 100 psi WSG
- Materials: Brass Body, Chrome Plated Brass Ball
- Body Style: 3 Way Valve

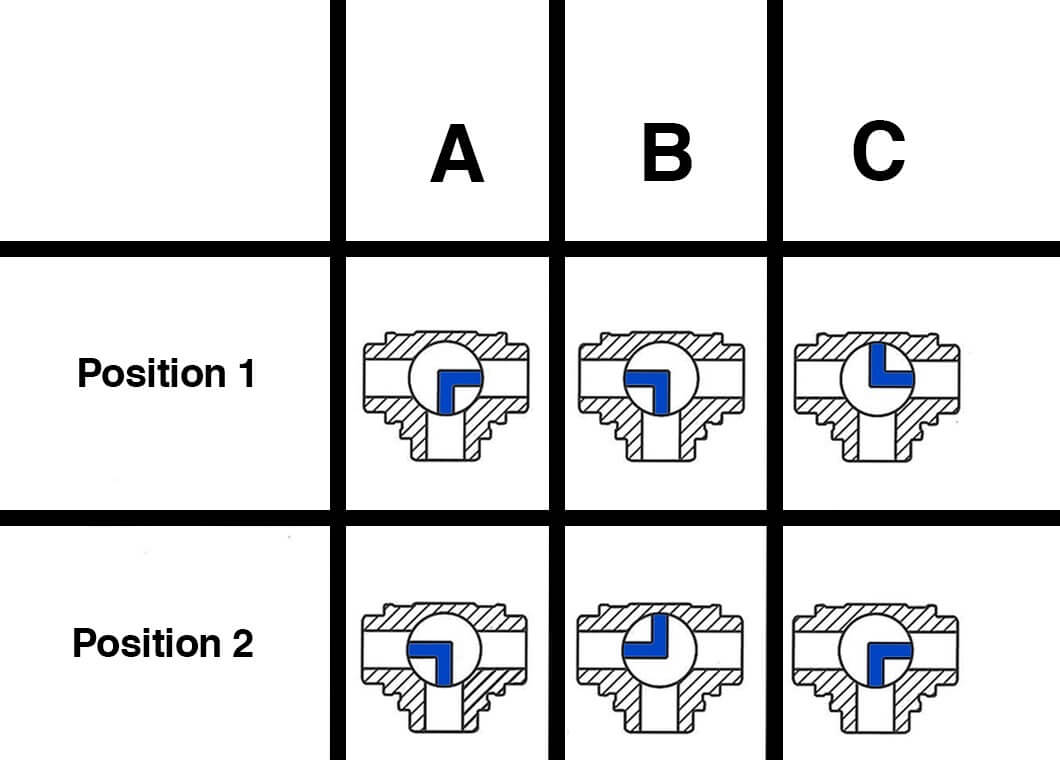

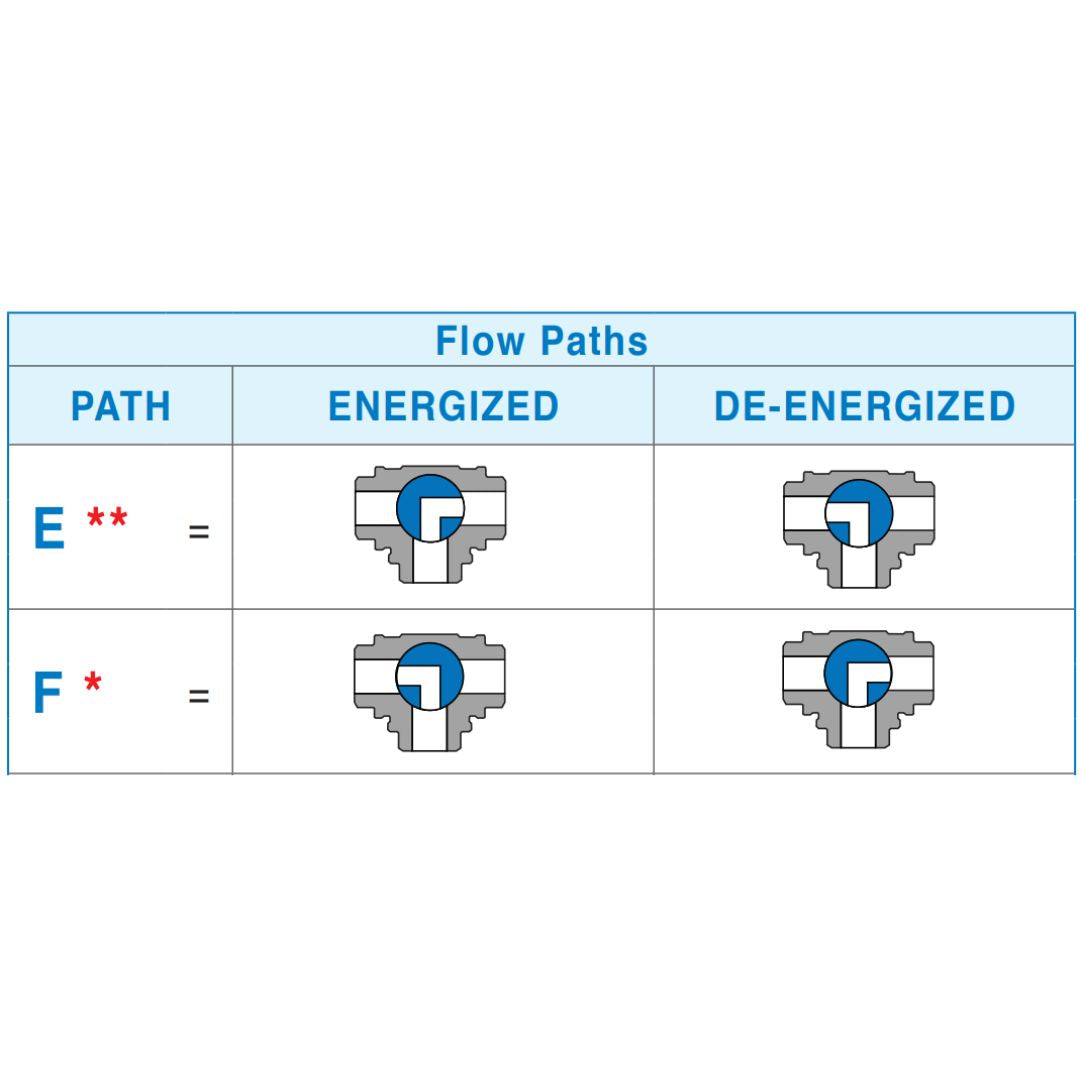

- Port: L-Port
- Connection: Threaded FNPT x FNPT x FNPT
1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3"
- Seat Material: PTFE
- Max. Temperature 344 degrees F
- Actuator: Double Acting
- Sized for 80 PSI of available air pressure
- Fail Position: None (Fail in Place)
