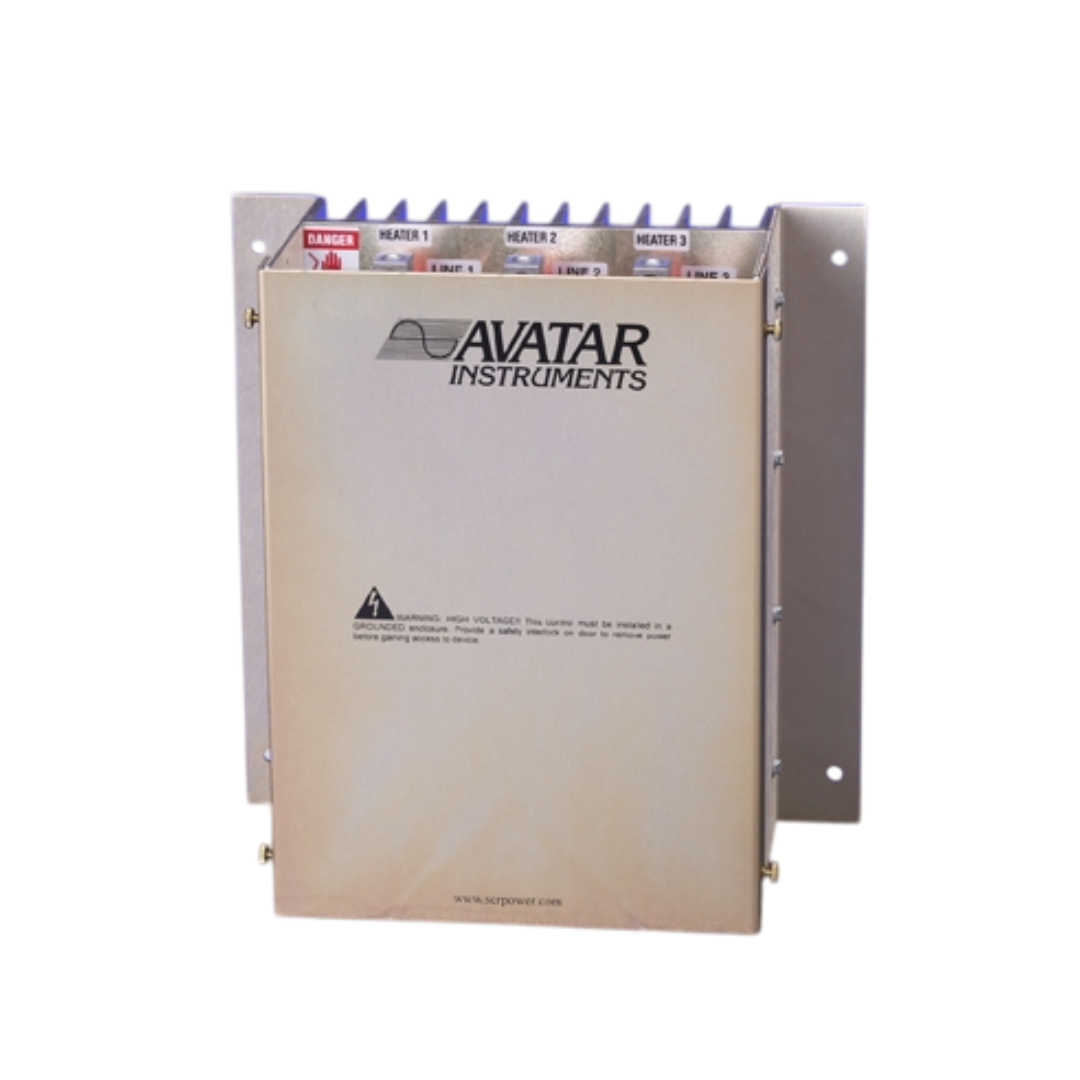

Avatar A6Z-48-80-R120-TH Power Controller
The A6Z (3-phase 3-leg) is a proportional, zero voltage switched, single phase power controller capable of delivering 0-99% of the applied line voltage to directly connected electric heaters. 100% power factor. Almost zero harmonics. Can control every half cycle of power to heaters. 50/60 Hz.
FALCO Compatibility:
-
SCR Power Controller for FALCO F300/F600 Oxidizers
Features:
- UL 508 listed, CE pending
- Compact and light weight
- 100 % solid state circuitry
- Over-rated SCR power modules
- Over-sized heat sink
- Full power ratings up to 50 ºC (122 ºF) ambient temperature
- Optically isolated 4-20 mA input standard
- Variable time base provides high resolution control
- Electrically isolated chassis and heat sinks to 600 Amps
- Gold alodined chassis and heat sink
-
I2T fusing and MOV protection on all power SCR's
- SanRex, SemiKron, International Rectifier and Fairchild semiconductors
- Double sided FR4 VO-94 rated glass epoxy PCB's
- -R120 - 120 VAC on-off command signal
Specifications:
Voltage Designations: 120 to 480 VAC 50/60 Hz
Load: 80 AMPS
Output Voltage: 0 to 99% of input voltage
Control Signal: 4 to 20 mA at 10 volts DC
Input Impedance: 500 ohms
Power Dissipation: (Watts) 3.6 x maximum current
Cooling: Convection: - 30-80 amps
-Fan (120 VAC): 100-1200 amps
Thermostat: 190 ºF (fan cooled units only)
Minimum Wire Gauge (Copper Wire Only- 90 ºC Temp Wire): 4 AWG
Net Weight: 14 Pound
Shipping Weight: 15 Pound
Wire Lug Torque: (90 ºC Temp Wire): 45 lb/in
Lug Size (90 ºC Temp Wire): 1/0 - 14
Compact: No
