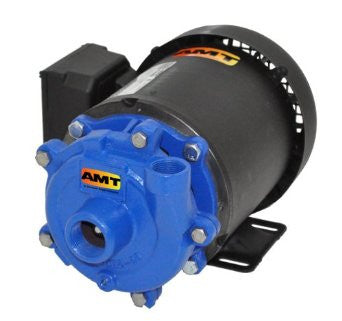

AMT SMALL STRAIGHT CENTRIFUGAL PUMPS - CAST IRON

$ 407.70

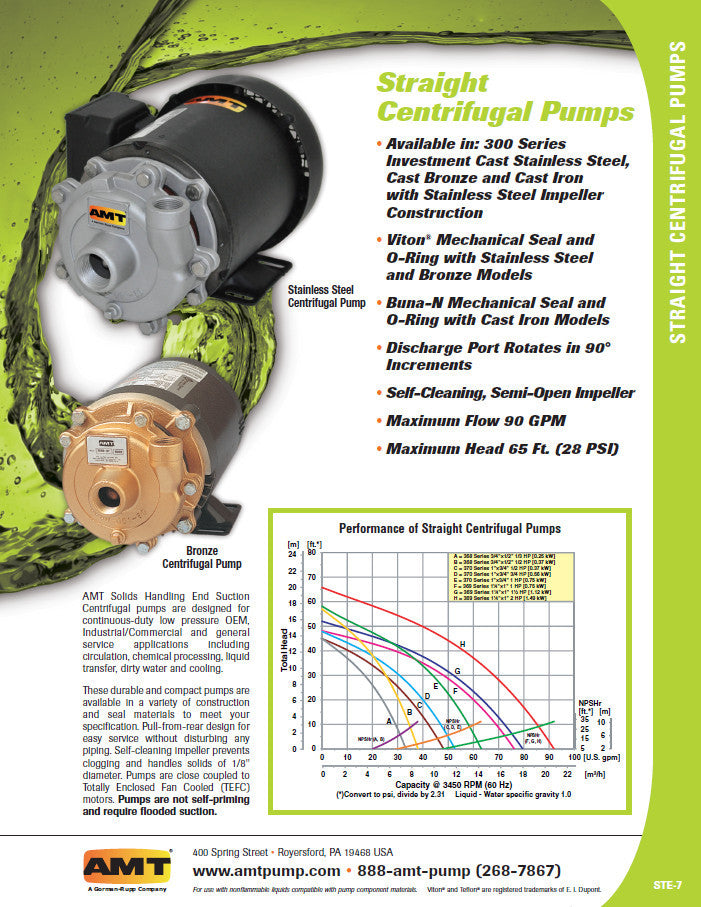

AMT STRAIGHT CENTRIFUGAL PUMPS

AMT Solids Handling End Suction Centrifugal pumps are designed for continuous-duty low pressure OEM, Industrial/Commercial and general service applications including circulation, chemical processing, liquid transfer, dirty water and cooling.

These durable and compact pumps are available in a variety of construction and seal materials to meet your specification. Pull-from-rear design for easy service without disturbing any piping.

Self-cleaning impeller prevents clogging and handles solids of 1/8" diameter. Pumps are close coupled to Totally Enclosed Fan Cooled (TEFC) 3 Phase motors. Pumps are not self-priming and require flooded suction

Straight Centrifugal Pumps:

  • Available in: 300 Series Investment Cast Iron with Stainless Steel Impeller Construction
  • Buna-N Mechanical Seal and O-Ring with Cast Iron Models
  • Discharge Port Rotates in 90° Increments
  • Self-Cleaning, Semi-Open Impeller
  • Maximum Flow 90 GPM
  • Maximum Head 65 Ft. (28 PSI)

 CAST IRON MODELS

  • All models frame size 56J
  • All models are TEFC enclosure type
  • All models equipped with BUNA-N seals
MODEL  HP VAC/60HZ FL.  AMP INLET (IN. FNPT) OUTLET SIZE (IN. FNPT)
368C-95 1/2 230/460 3/2 3/4 1/2
370F-95 1/2 230/460 3/2 1 3/4
370C-95 3/4 230/460 3/2 1 3/4
370D-95 1 230/460 4/2 1 3/4
369F-95 1 230/460 4/2 1-1/4 1
369B-95 1-1/2 230/460 5/3 1-1/4 1
369E-95 2 230/460 6/3 1-1/4

1
