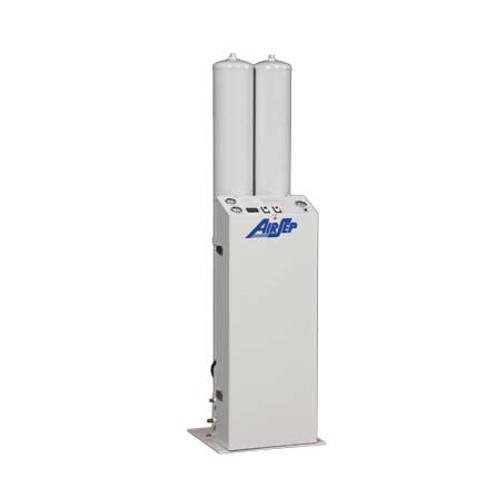

AirSep AS-D
AirSep Alpha Series Oxygen Generators produce from 20 to 5,500 cubic feet of oxygen
per hour at up to 95% oxygen concentration. When electricity and a source of compressed air is supplied, these dependable machines can provide oxygen for practically any application.
AirSep Oxygen Concentrators:
- Produces Oxygen from compressed air
- Microprocessor controlled
- Low operating cost
- Easy to install and maintain
*An unprotected or inadequately ventilated environment or improper control power may cause damage to the oxygen concentrator and is not covered under warranty.
Specifications:
Product Characteristics:
- Product Flow: 80 - 90 SCFH (Factory set to your specific requirements)
- Standard Product Pressure: 45-55 psig
- Product Purity: Up to 95%
- Product Dew Point: -100°F (-73°C)
- Dimensions: 20 W x 16 D x 60 H Inches (Nominal)
- Weight: 361 lbs.
- Physical Connections:
Compressed Air Inlet: ¼” FNPT
Product Gas Outlet: ¼” FNPT
Ambient Operating Conditions:
- Locate the oxygen generator in a well-ventilated area that is protected from weather elements and remains between 40°F (4°C) and 112°F (44°C)
- Feed Air Requirements
Flow Rate: Refer to Chart in Datasheet
Clean and Dry "Plant Air" (Class 5.6.4 per ISO Specification 8573.1
Pressure: 90 psig (620 kPa) minimum - Temperature: 122°F (50°C) maximum
Control Power Requirements:
- 120 V ~ ±10%, 50/60 Hz, Single Phase, 1.0 A
- 220 V ~ ±10%, 50/60 Hz, Single Phase, 0.5 A
- NRTL Certifications and Approvals ASME Section VIII Division 1, CAN/CSA-C22.2 No. 61010-1-12, ANSI/UL Std. No. 61010-1:2012 (120 V configurations only)
Options and Accessories:
Does not include O2 receiver tank. Requires feed supply air see chart in cut sheet. Will need accessory kit.
*These units are not used for filling oxygen cylinders. To fill a 2,200 psi oxygen cylinder requires specialized equipment.
Warranty: 1 Year Parts and Factory Labor*
