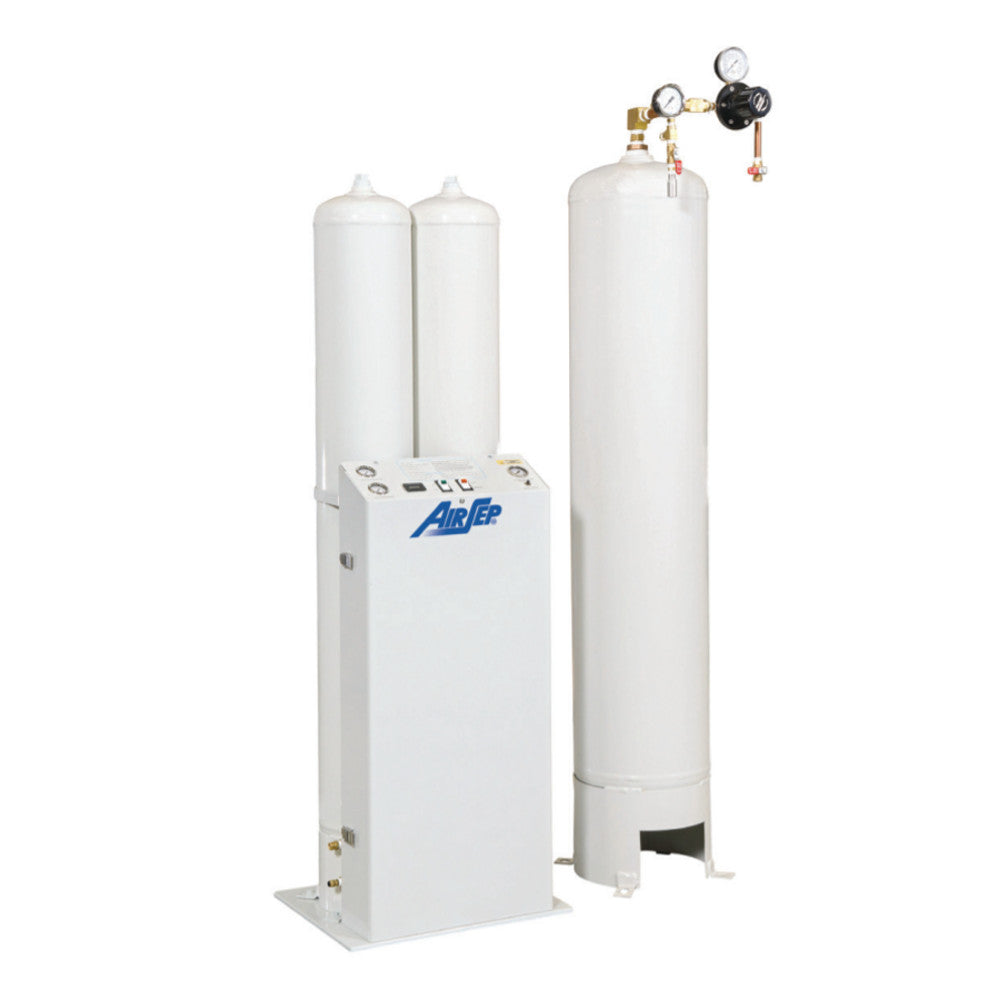

AirSep AS-D Mini Pack
AirSep AS-D Mini Pack Datasheet
Designed specifically for applications with fixed flow and pressure characteristics, the reduced size oxygen receiver feature of out Mini Pack Oxygen Generators offer a quick start-up and a significantly smaller footprint than comparable systems that utilize a standard, separate receiver. Simply connect the unit's inlet to a suitable compressed air source, the oxygen outlet to the application, and the power cord to an appropriate electrical source. Start the generator, adjust the regulator to the required oxygen pressure and within minutes, produce oxygen at up to 95% concentration.
AirSep Oxygen Concentrators:
- Produces Oxygen from an independent compressed air source
- Microprocessor controlled
- Low operating cost
- Easy to install and maintain
*An unprotected or inadequately ventilated environment or improper control power may cause damage to the oxygen concentrator and is not covered under warranty.
Specifications:
Product Characteristics:
- Product Flow: 80 - 90 SCFH
- Standard Product Pressure: 45–55 psig
- Product Purity: Up to 95% Nominal
- Product Dew Point: -100°F (-73°C)
- Dimensions: 20 W x 16 D x 60 H Inches (Generator); 13 x 71 Inches (Receiver)
- Weight: 361 lbs. (Generator); 80 lbs. (Receiver)
- Physical Connections:
Compressed Air Inlet: ¼” FNPT
Product Gas Outlet: ¼” FNPT
Ambient Operating Conditions:
- Locate the oxygen generator in a well-ventilated area that is protected from weather elements and remains between 40°F (4°C) and 104°F (40°C)
- Feed Air Requirements
Flow Rate: Refer to Chart in Datasheet
Clean and Dry "Plant Air" (Class 5.6.4 per ISO Specification 8573.1
Pressure: 90 psig (620 kPa) minimum
Temperature: 122°F (50°C) maximum
Control Power Requirements:
- 120 V ~ ±10%, 50/60 Hz, Single Phase, 1.0 A
- 220 V ~ ±10%, 50/60 Hz, Single Phase, 0.5 A
- NRTL Certifications and Approvals: ASME Section VIII Division 1, CAN/CSA-C22.2 No. 61010-1-12, ANSI/UL Std. No. 61010-1:2012 (120 V configurations only)
Required Accessories:
- Will need AS-D Mini Pack Accessory kit KI411-1 (interconnecting hoses/fittings and oxygen regulator
*These units are not used for filling oxygen cylinders. To fill a 2,200 psi oxygen cylinder requires specialized equipment.
Warranty: 1 Year Parts and Factory Labor*
