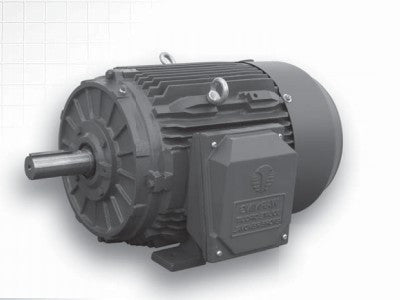

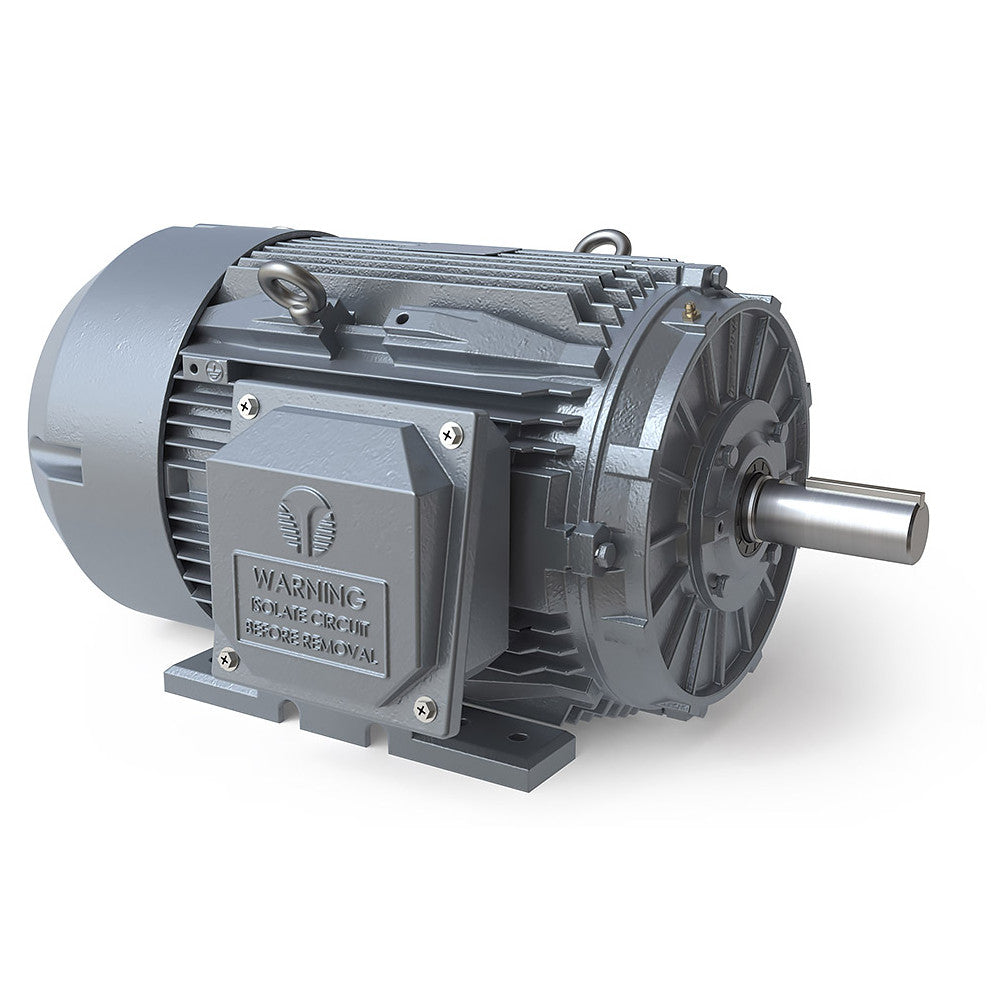

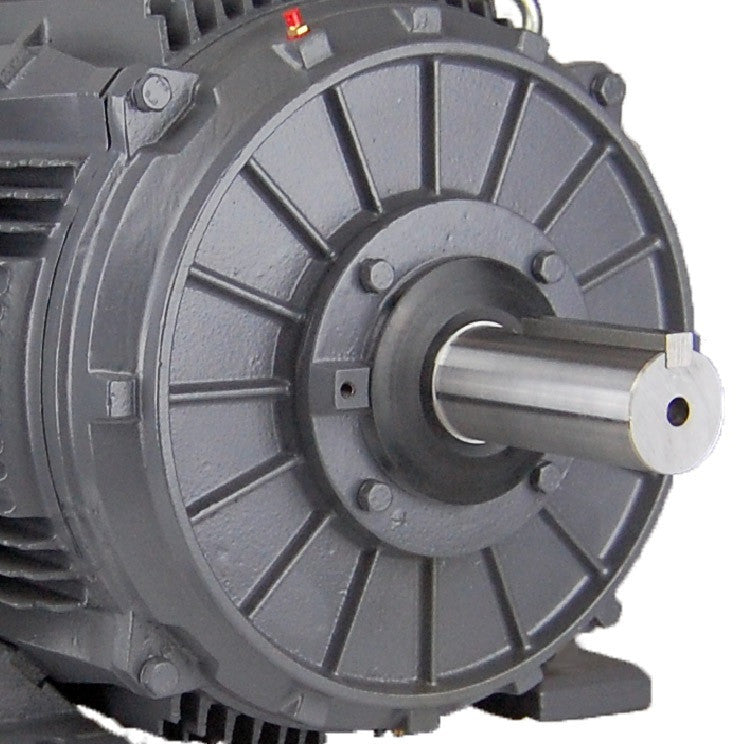

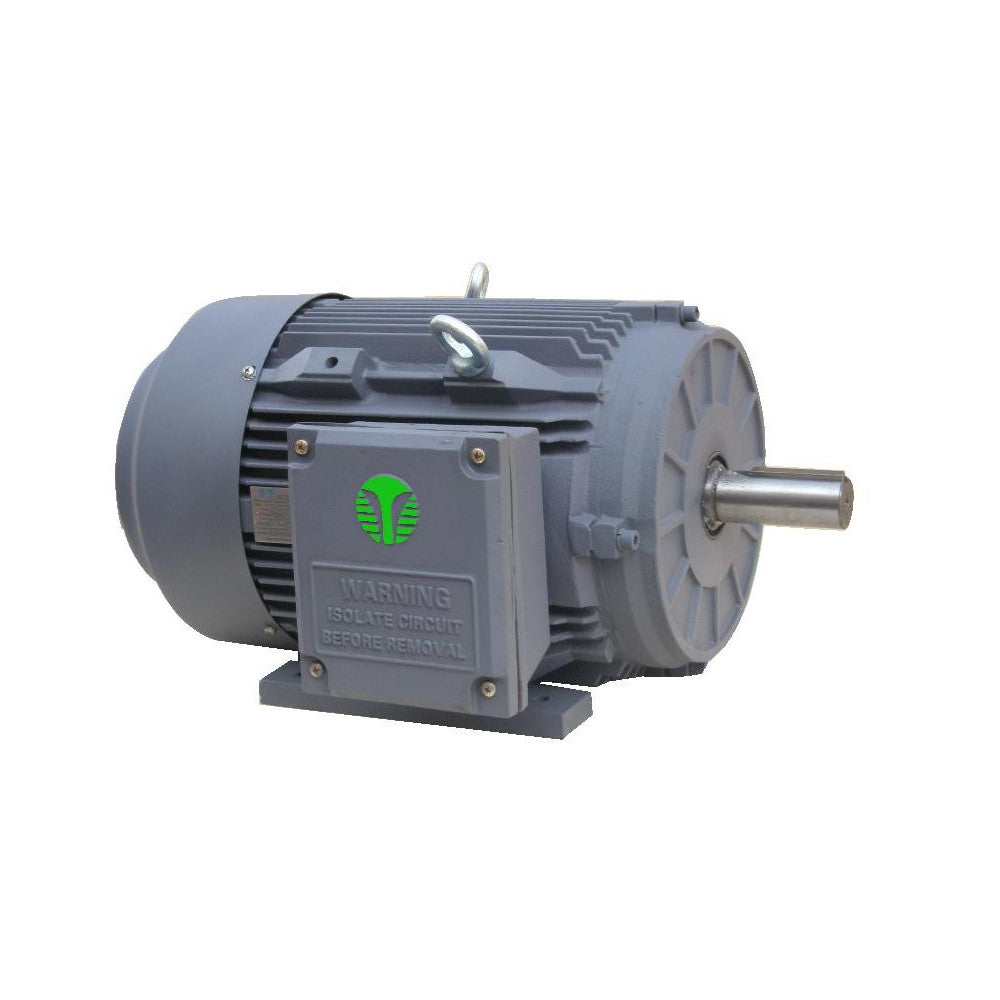

TECHTOP MOTORS - GREEN LINE 100 HP TEFC CAST IRON MOTORS NEMA PREMIUM
2 AND 4 POLES
EISA COMPLIANT
INVERTER RATED (MG1 Part 31 - 15:1 Constant Torque)
Standard Features:
• NEMA Premium Energy Efficiency Design
• MG1 Part 31 Compliant for VFD use (15:1 CT)
• 2-Part Epoxy Coating - IP 55 Ingress Protection
• 1045 Steel Shaft (through 326T), 4140 (326T & up)
• Multi-mount Frame Design up to 360T (F1,F2,F0)
• Auto-purge Brass Condensation Drains
• 1.25 Service Factor to 50HP (1.15 for larger frames)
• DE and ODE Oversized Bearing Size
• Zerk fitting Regreasable Bearings 254T & Larger
• 90° Rotatable - Full Rubber Gasket Conduit Box
• Double Lip Shaft Seal Protection on DE & ODE
• VPI -Tropicalized- Lap-wound-Class H Stator
• Heavy Duty Cast Iron Fan Cover
• Oversized-Color Coded -Tagged - Class F Leads
• Rubber Shaft Slinger for Vertical Application
• Interchangable C & D Flanges Available
• Class 1, Div 2, Groups A,B,C & D Certified
• EISA Regulation Compliant
• 40°C Ambient Temperature Rating
• 36 Month Warranty from Purchase Date
