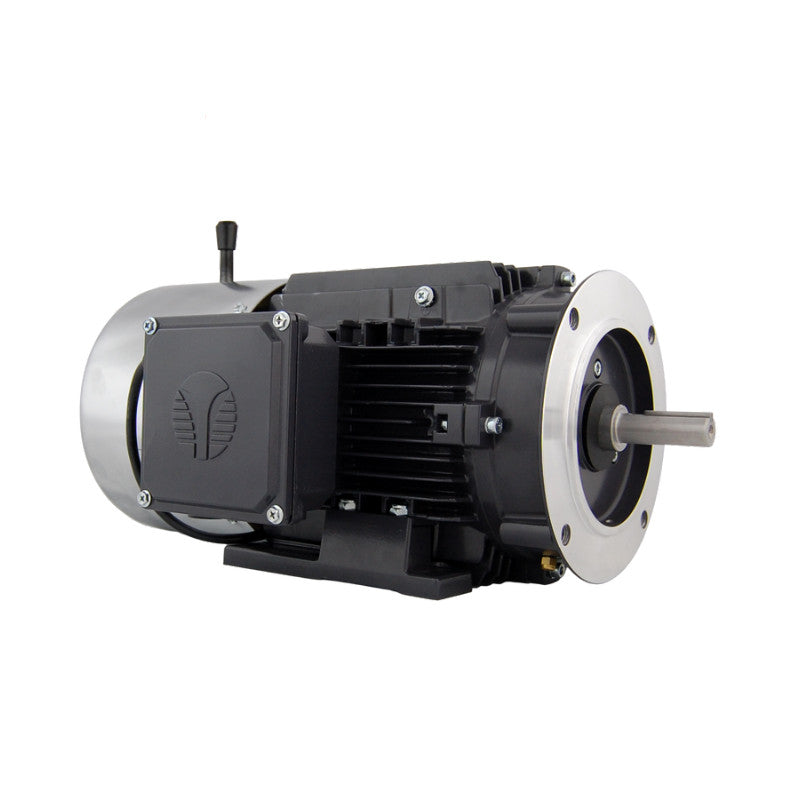

TechTop 1 HP TEFC Aluminum Motors, Cobra NEMA Premium
| TECHTOP PART NUMBER | MOTOR GROUP | FRAME | HP | RPM | VOLTAGE |
| CB3-AL-TF-56C-2-B-D-1 | Cobra | 56C | 1 |
3600 | 208-230/460 |
| CB3-AL-TF-56C-4-B-D-1 | Cobra | 56C | 1 |
1800 | 208-230/460 |
STANDARD FEATURES:
- NEMA Premium Efficiency
- 50Hz Capable at 1.0SF
- Totally Enclosed Fan Cooled (TEFC)
- Continuous (S1) Duty
- 40°C Ambient Rating
- IP55 Protection
- Inverter Rated 15:1 Constant Torque (1.0 SF on VFD) MG1 Pt. 31
- Class F Insulation
- Class B temperature Rise
- Vacuum Pressure Impregnated Stator
- IEEE 45 Marine Duty
- Graphite Gray
- 1.25 Service Factor with 60Hz TEFC operation
- Class 1, Division 2, Groups A, B, C & D Compliant
- Shaft Grounding Brush Installed
- Fully Epoxy Potted Conduit Box Entry
- Stainless Steel Anti-Corrosion Fan Cover
- Brake kit & Encoder Kit Ready
- PTC Thermal Protection Installed
- Removable Feet F1, F2, F0 convertible
- Conduit Box is 90° Rotatable
- Full Die-Cast Aluminum Frame
- Anti-microbial (Tropicalization) coating on Stator
- Powder Coated RAL 7024
- Over Sized Shielded Bearings
- Viton Double Lip Shaft Seals
- TENV Capable at 1.0 SF
- 1045 steel shaft
- Stainless steel nameplate
- Corrosion Resistant Blue Zinc Hardware
