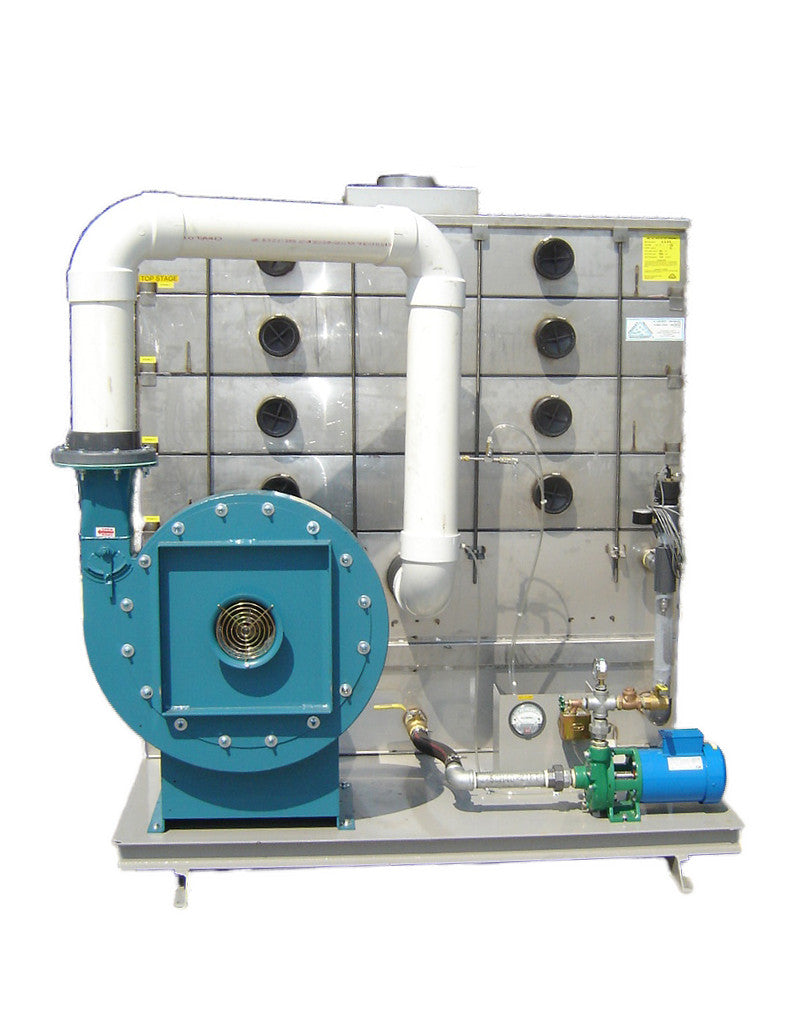

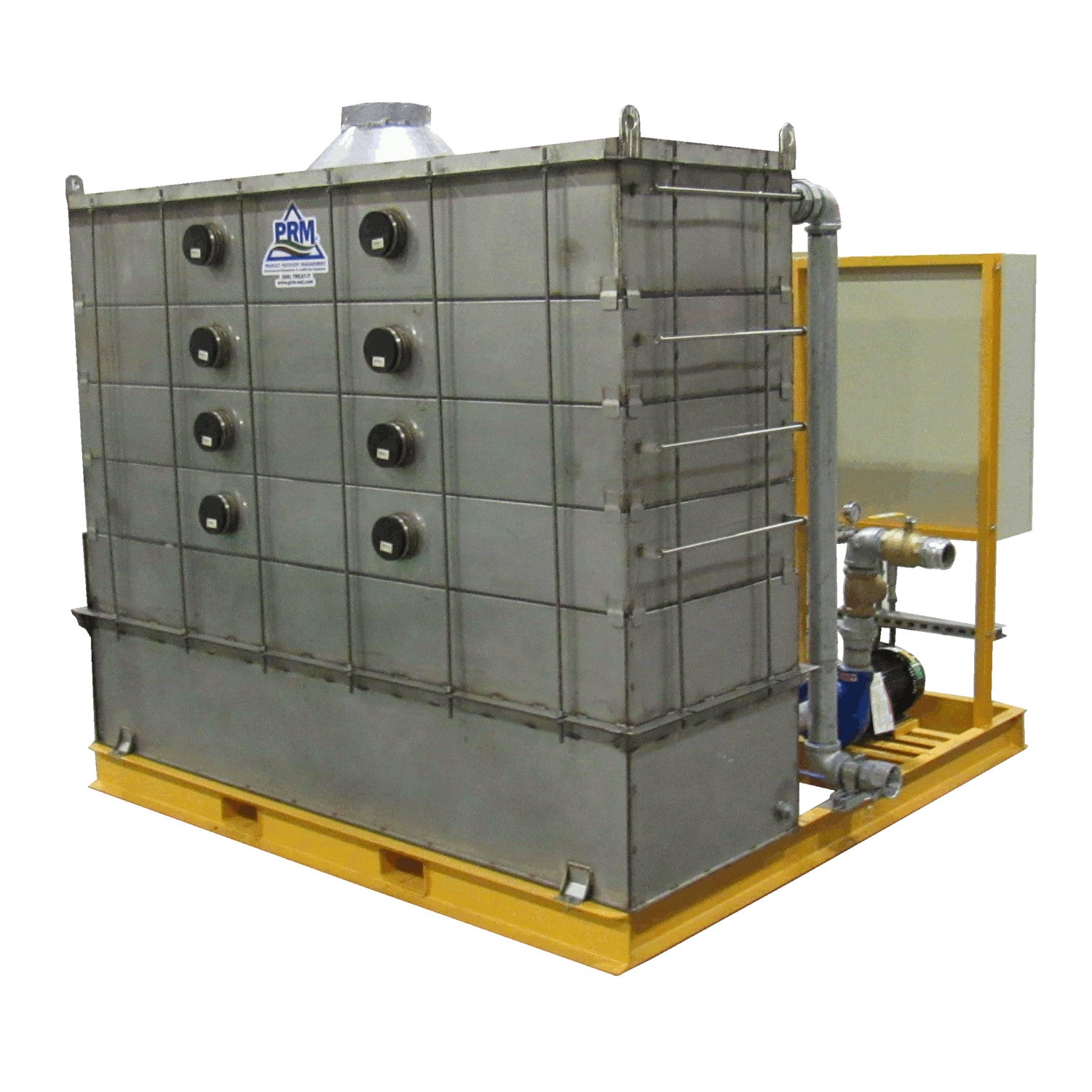

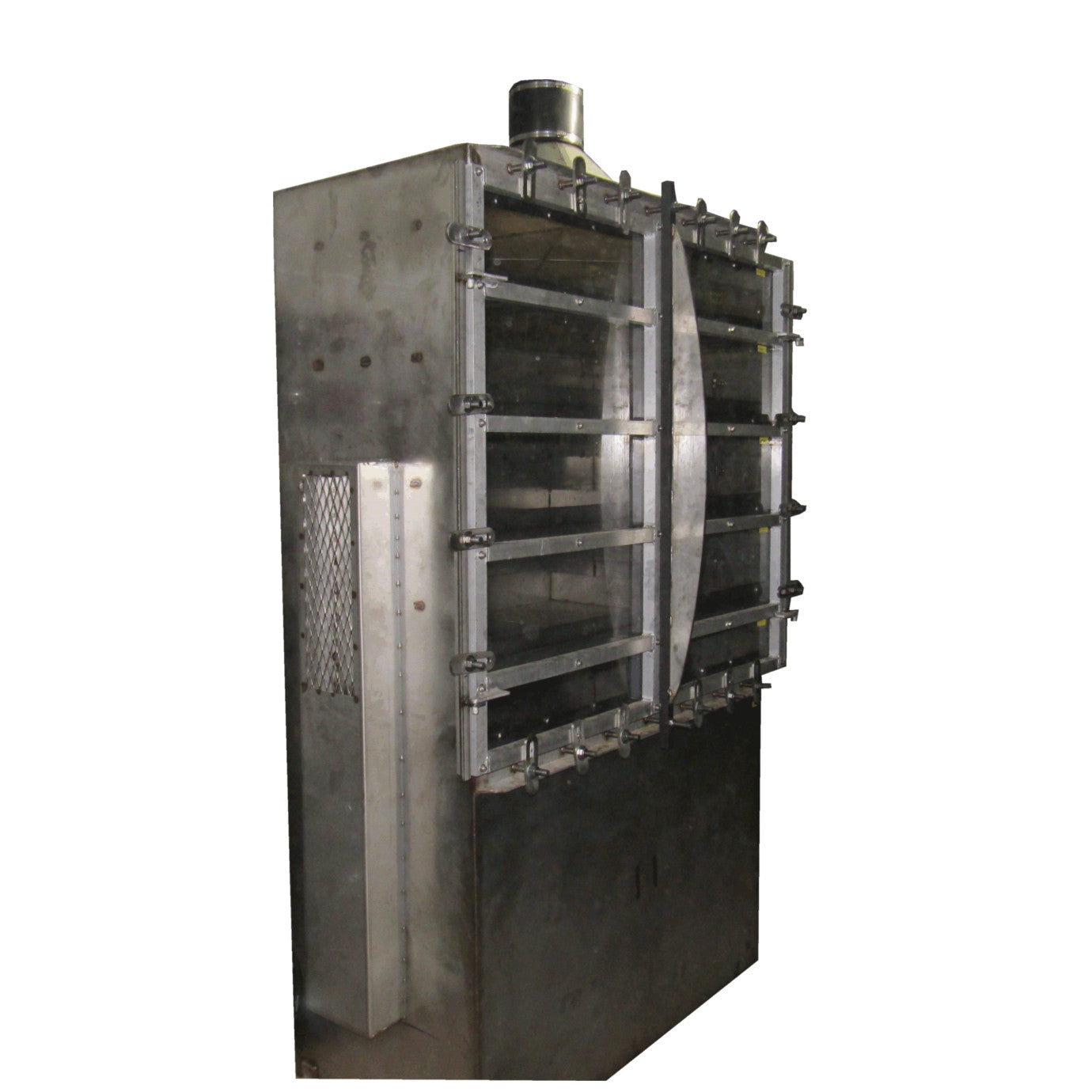

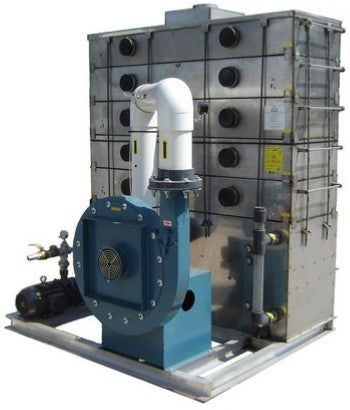

LOW PROFILE AIR STRIPPERS
10 - 1000 GPM Flow Ranges Available, Contact for Quote
PRM Low Profile Air Strippers are an efficient and compact product for treating contaminated water. The water stream flows over a distribution weir and along the horizontal trays. Forced air is blown through holes in the trays and forms a froth of bubbles generating a large mass transfer surface area where the contaminants are volatilized. The clean water exits the stripper and the off-gas vapors are treated as required.
PRM strippers use a unique tension rod which allows for proper torque of the trays which eliminates leaks. As the stripper and gaskets age the tension rods can be tightened to seal the gaskets extending the life of the gaskets. PRM design reduces fouling problems often associated with air stripping. The large
diameter air distribution hole combined with the turbulent flow reduces build-up of oxidized iron. Should build up occur the trays are easily removed for cleaning. Additional access ports can be added to facilitate inspection and cleaning.
Typical Features Include:
- Skid or Trailer Mounted
- Up to 99.99% Efficiency
- Stainless Steel Welded Construction
- Stackable Trays with Tension Rods for Tight Seal
- Field Replaceable Gaskets
- Access Ports on Each Tray for Inspection
- Inlet Mist Eliminator
- Blowers with Premium Efficiency Motors Rated for Class 1, Division 2 Locations
- Intrinsically-Safe Low Pressure Switch
- Manual Sump Drain Valve
- 3 Float Stem Mounted in a 2” Clear PVC Sight Tube for Pump and Alarm Controls
- Ball Valves on the Inlet and Discharge
