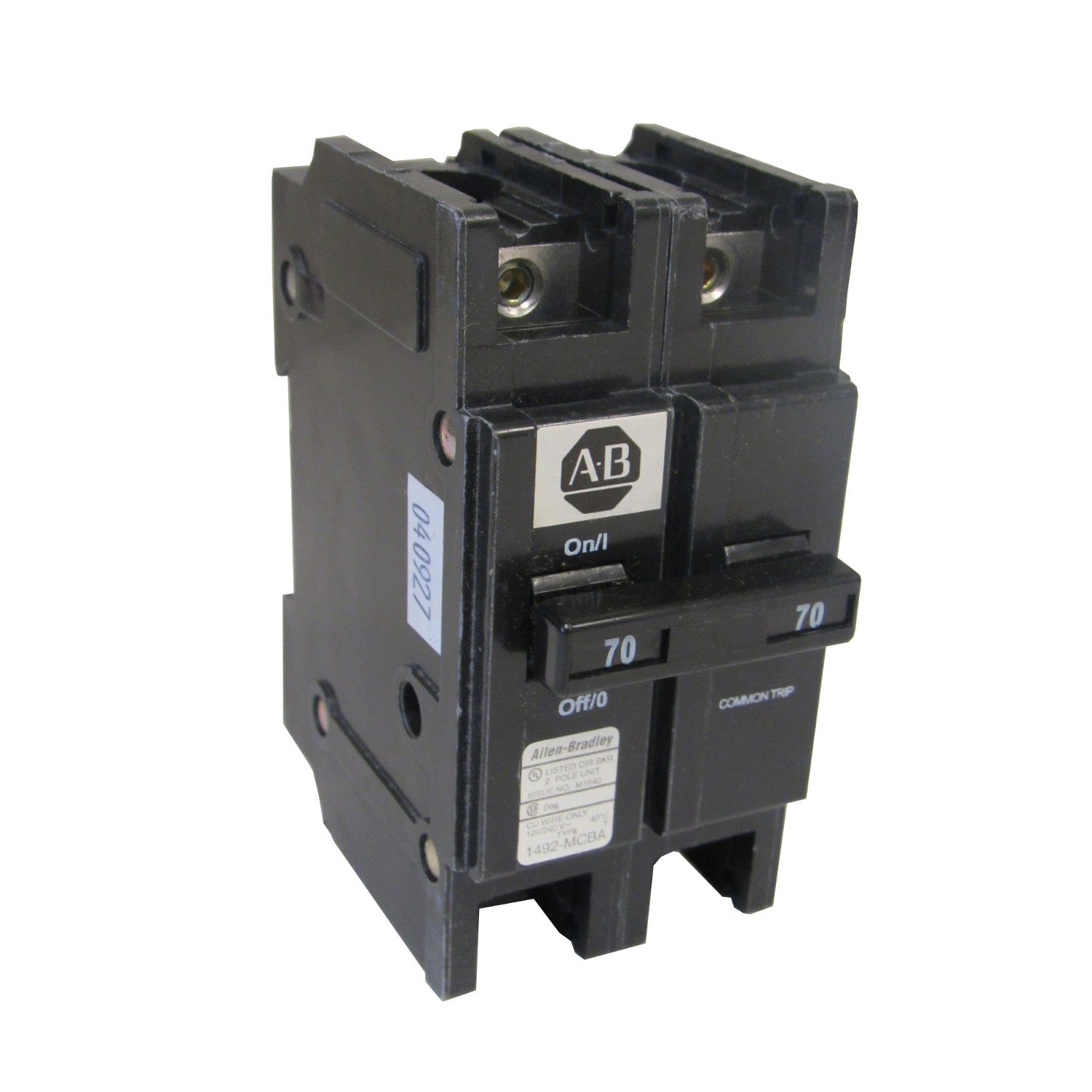

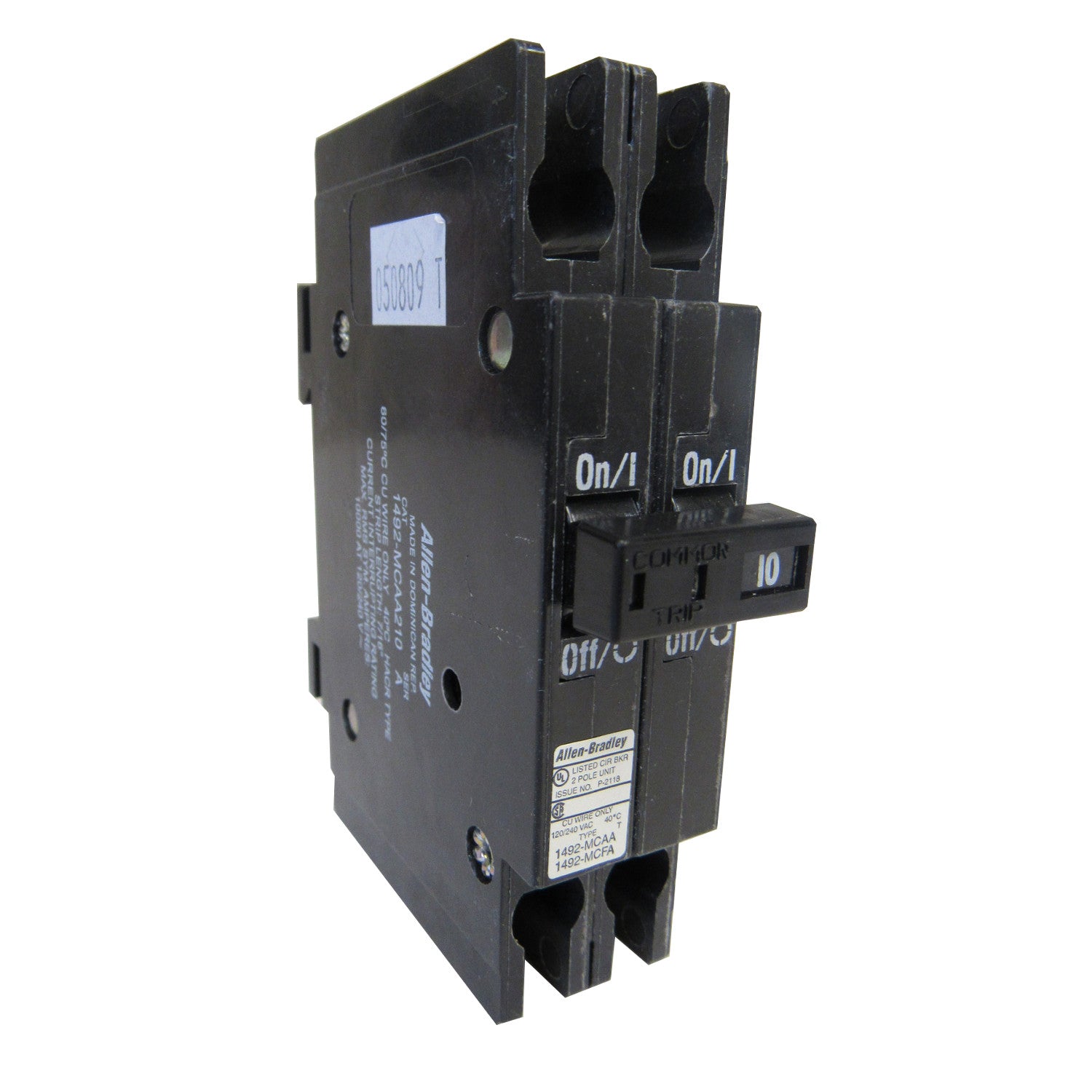

ALLEN BRADLEY BULLETIN 1492-MC CIRCUIT BREAKERS
Thermal Magnetic Circuit Breakers
Bulletin 1492-MC Circuit Breakers for Branch Circuit protection are available in one (1)-, two (2)-, and three (3)-pole construction in 120/240 volt rating.
The 1492-MC product line consists of Thermal Magnetic Circuit Breakers and Ground Fault Sensing Breakers that are designed, manufactured, and certified to North American standards, UL 489, UL 943, UL1093, and the equivalent CSA standards, CSA 22.2 No. 5.1, 22.2 No. 144.
Bul. 1492-MC Thermal Magnetic Circuit Breakers are general purpose devices suitable for the majority of industrial, inverse time circuit breaker applications.
They combine thermal and magnetic trip actions and provide accurate overload and short-circuit protection for conductors and connected equipment.
- Designed, manufactured and listed to UL 489 (CSA C22.2, No. 5)
- Thermal-magnetic protection
- All Ratings (10…100 A) are HACR rated
- 10 kAIC (10…100 A)
- Finger-safe design (front) (1/2 in. wide)
- DIN Rail mounting (120/240 & 240V AC)
- Three-position handle (ON, Tripped (Middle), OFF)
- (Line and load) wire connections
Available Allen Bradley 120/240V 2 Pole Breakers:
|POLES/AMPS||PART NUMBER||WIDTH PER POLE (IN.)|
|2 POLE 10 AMP||1492-MCAA210||1/2|
|2 POLE 15 AMP||1492-MCAA215||1/2|
|2 POLE 20 AMP||1492-MCAA220||1/2|
|2 POLE 30 AMP||1492-MCAA230||1/2|
|2 POLE 40 AMP||1492-MCAA240||1/2|
|2 POLE 50 AMP||1492-MCAA250||1/2|
|2 POLE 60 AMP||1492-MCAA260||1/2|
|2 POLE 70 AMP||1492-MCAA270||1|
