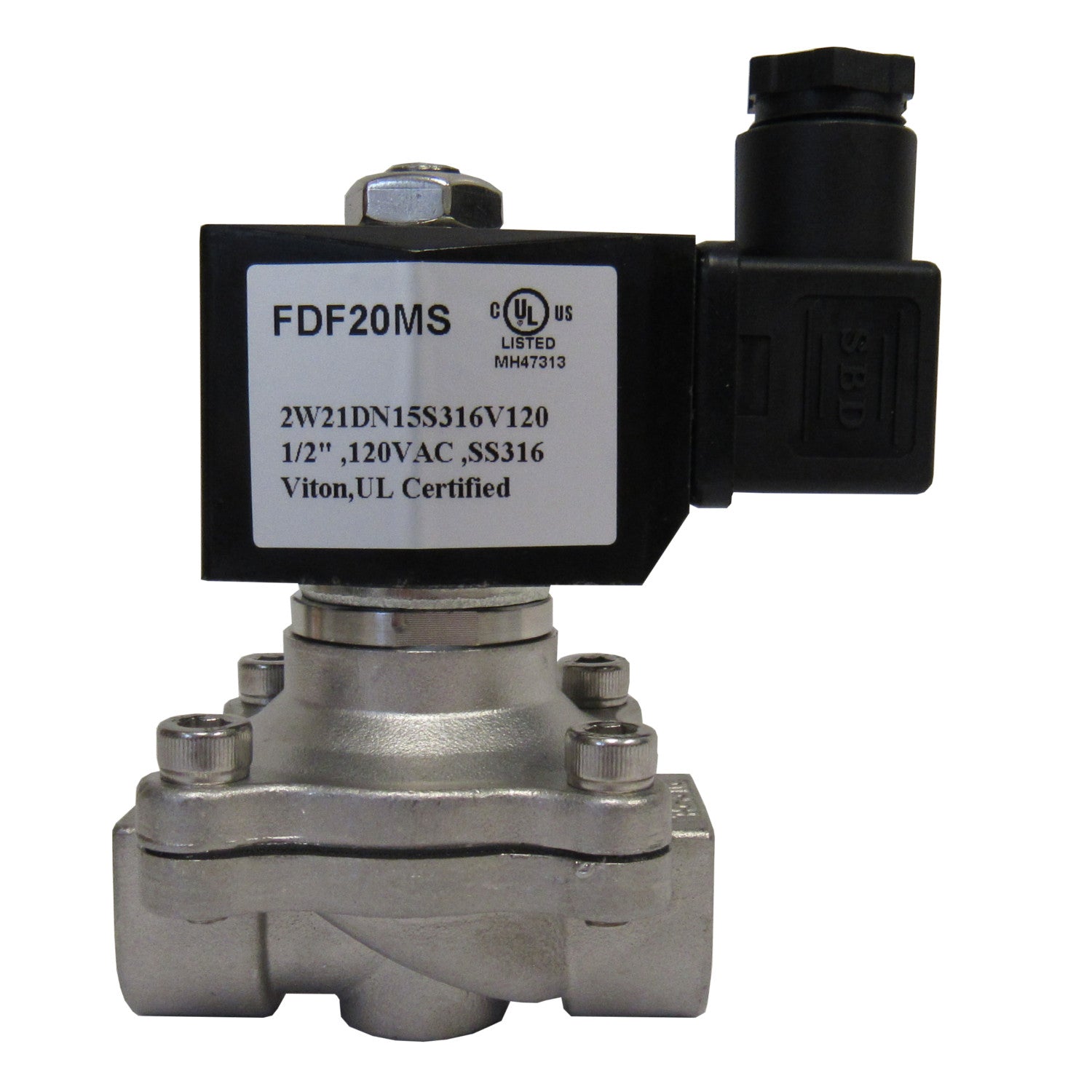

PRM Solenoid Valves are designed to handle the most demanding fluid control applications. Solenoid valves operate on electricity to automatically start and stop flow. The actuator is directly mounted to the valve body to minimize movement and reduce wear.
Solenoid Valves Datasheet
Normally closed valves are closed unless actuated.
Stainless steel valves are more corrosion resistant than brass valves.
Flow coefficient (Cv) is the amount of water (in gallons per minute) at 60° F that will flow through a fully open valve with a difference of 1 psi between the inlet and the outlet.
Specifications:
- Direct lifting diaphragm construction
- Open from zero bar for low pressure system use
- Medium: Air, Natural Gas, Water, Oil, Petroleum
- Pressure Range: 0-145 psi
- Temperature Range: Viton Seal: -22°F to 300°F
- Voltage: 120 VAC
- Coil: Class F
- Normally Closed
Materials:
- Body: 316 Stainless Steel
- Seal: Viton, FKM
- Armature Tube: 304 Stainless Steel
- Plunger: 430F Stainless Steel
- Stop: 430F Stainless Steel
- Springs: 304 Stainless Steel
- Shading Rings: Copper
| Size | Thread | Orifice (mm) | Cv |
| 1/2 Inch | NPT | 15 | 4.5 |
| 3/4 Inch | NPT | 20 | 9.3 |
| 1 Inch | NPT | 25 | 12 |
| 1-1/4 Inch | NPT | 32 | 24 |
| 1-1/2 Inch | NPT | 40 | 29 |
| 2 Inch | NPT | 50 | 48 |
