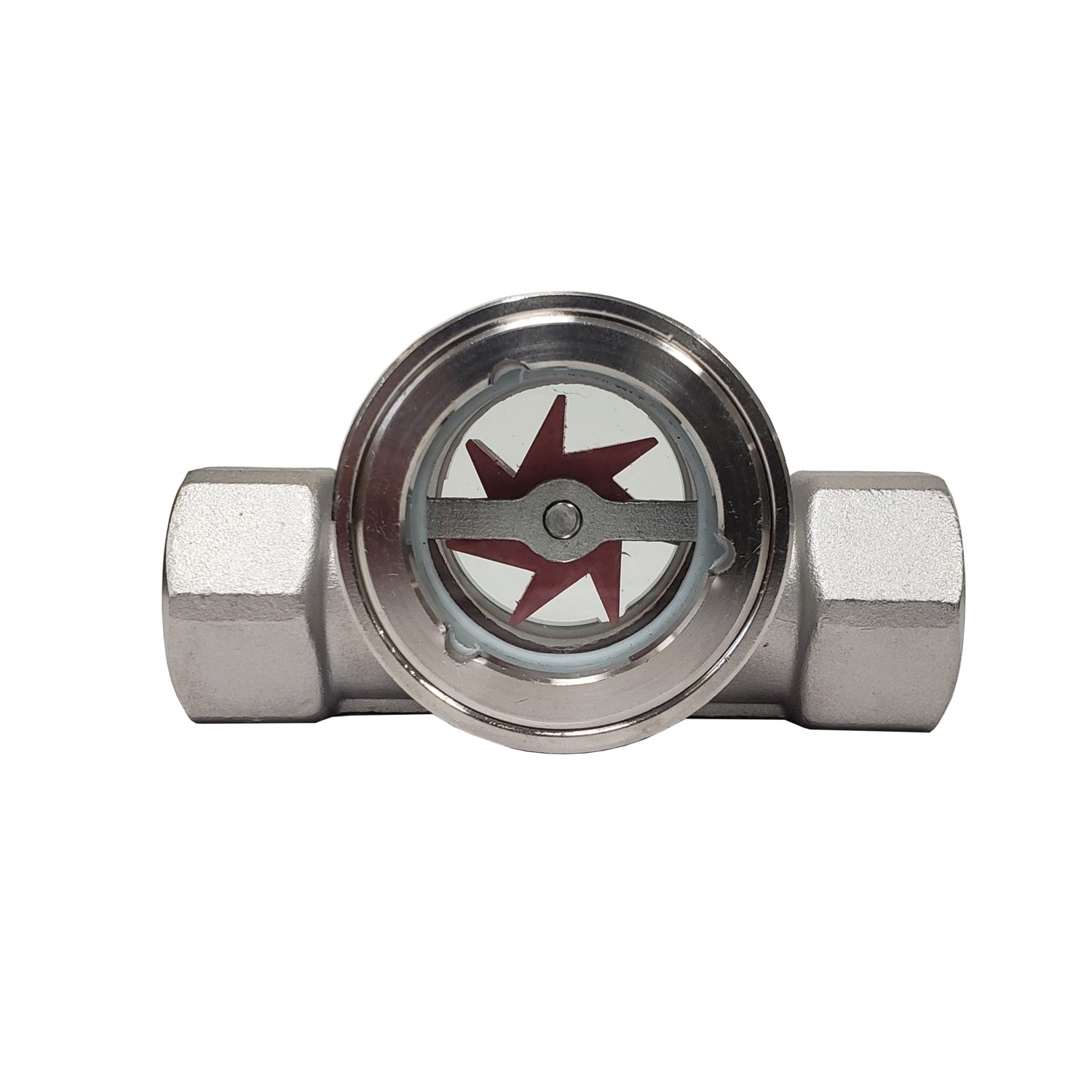

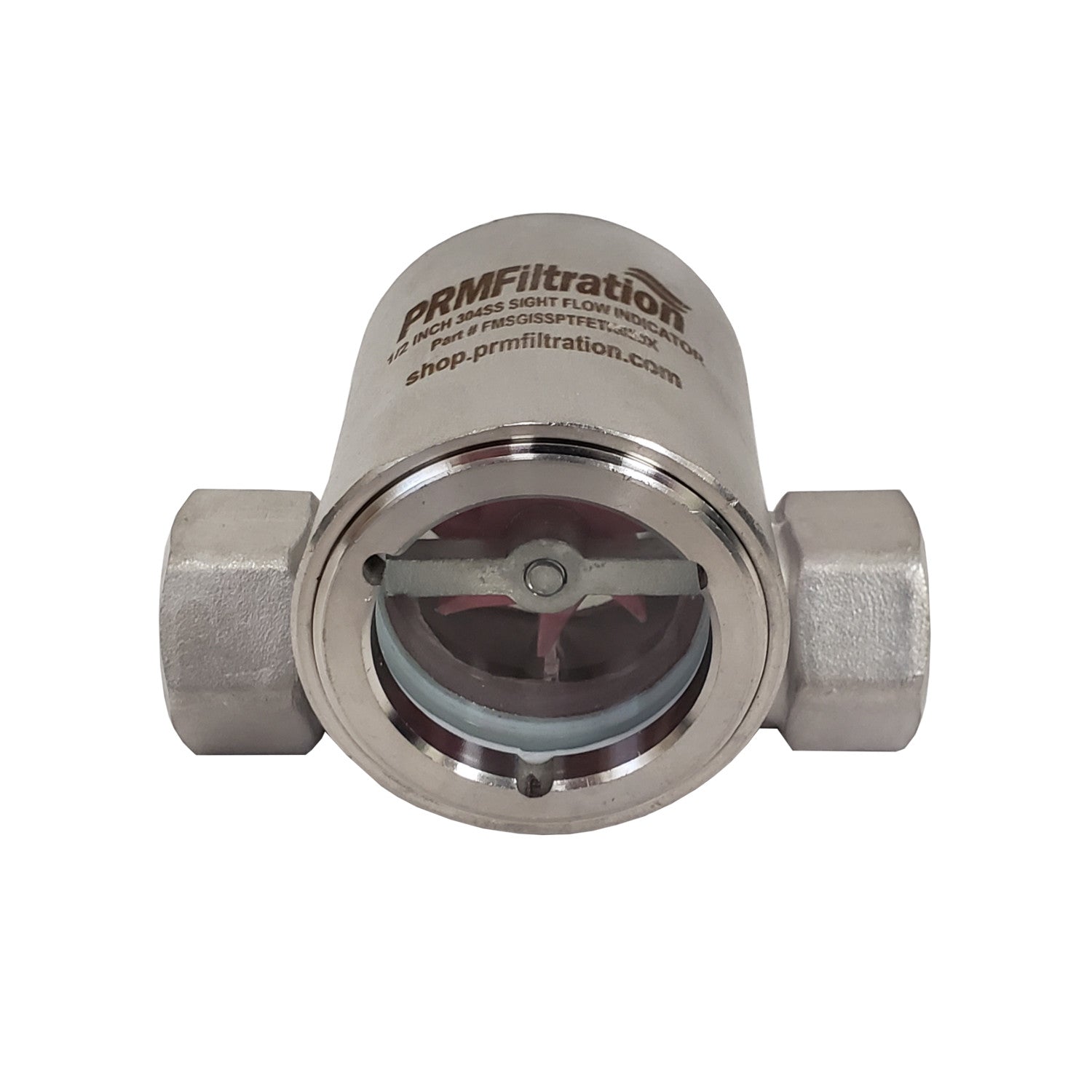

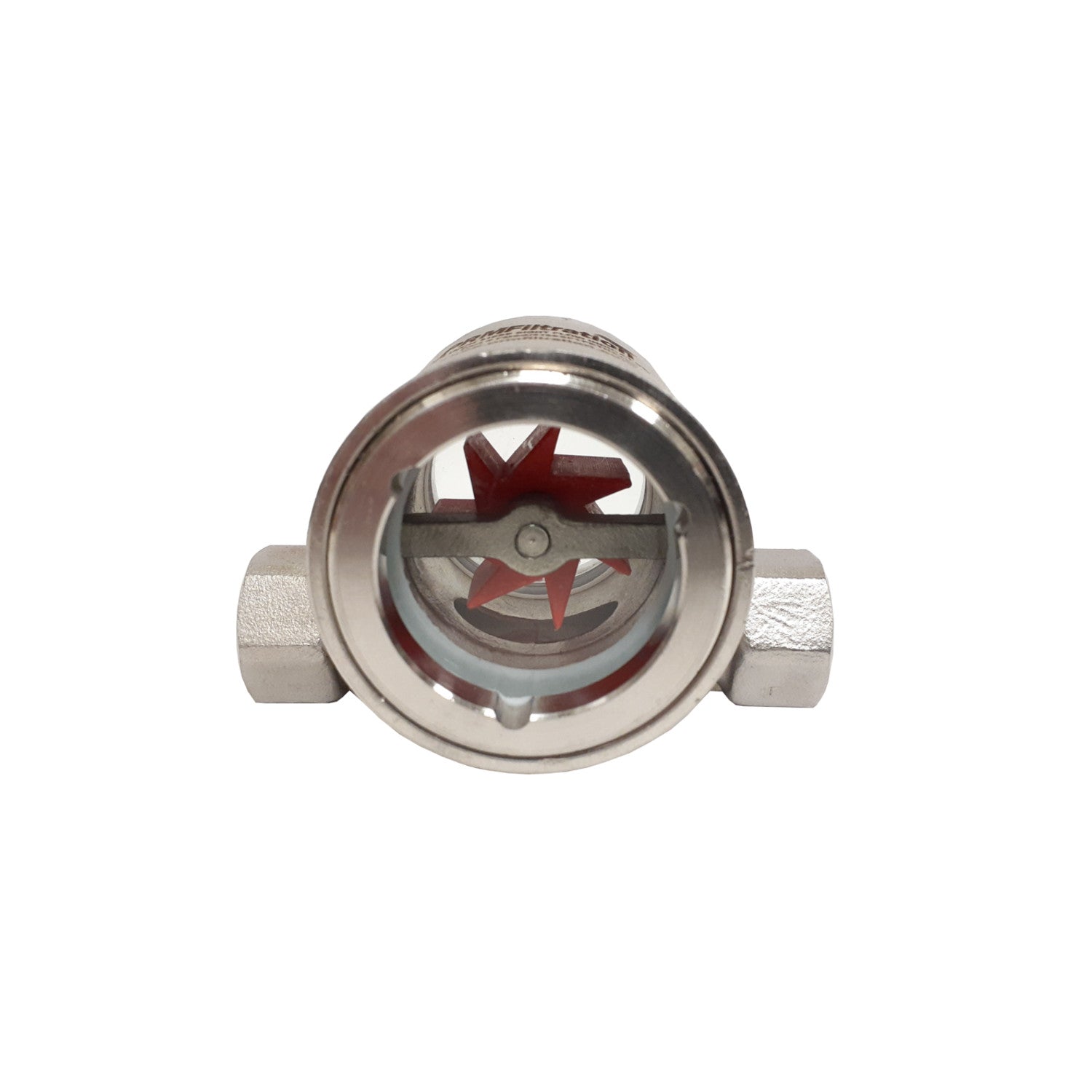

PRM Sight Flow Indicator, 1/4 Inch, 304 Stainless Steel, PTFE Seal and Impeller
316 Stainless Steel Available
Sight flow indicators make monitoring liquids inside a pipe easy and efficient. The device is installed into a pipe and offers a visual reference for liquid flow and direction. Operators can also see the clarity and color of fluids via a window.
Connection: 1/4 Inch FNPT
Materials:
- Body: 304 Stainless Steel, Tempered Glass
- Seal: PTFE
- Impeller: PTFE (Red)
Maximum Pressure: 232 psig (16 bar)
Maximum Temperature: 392°F

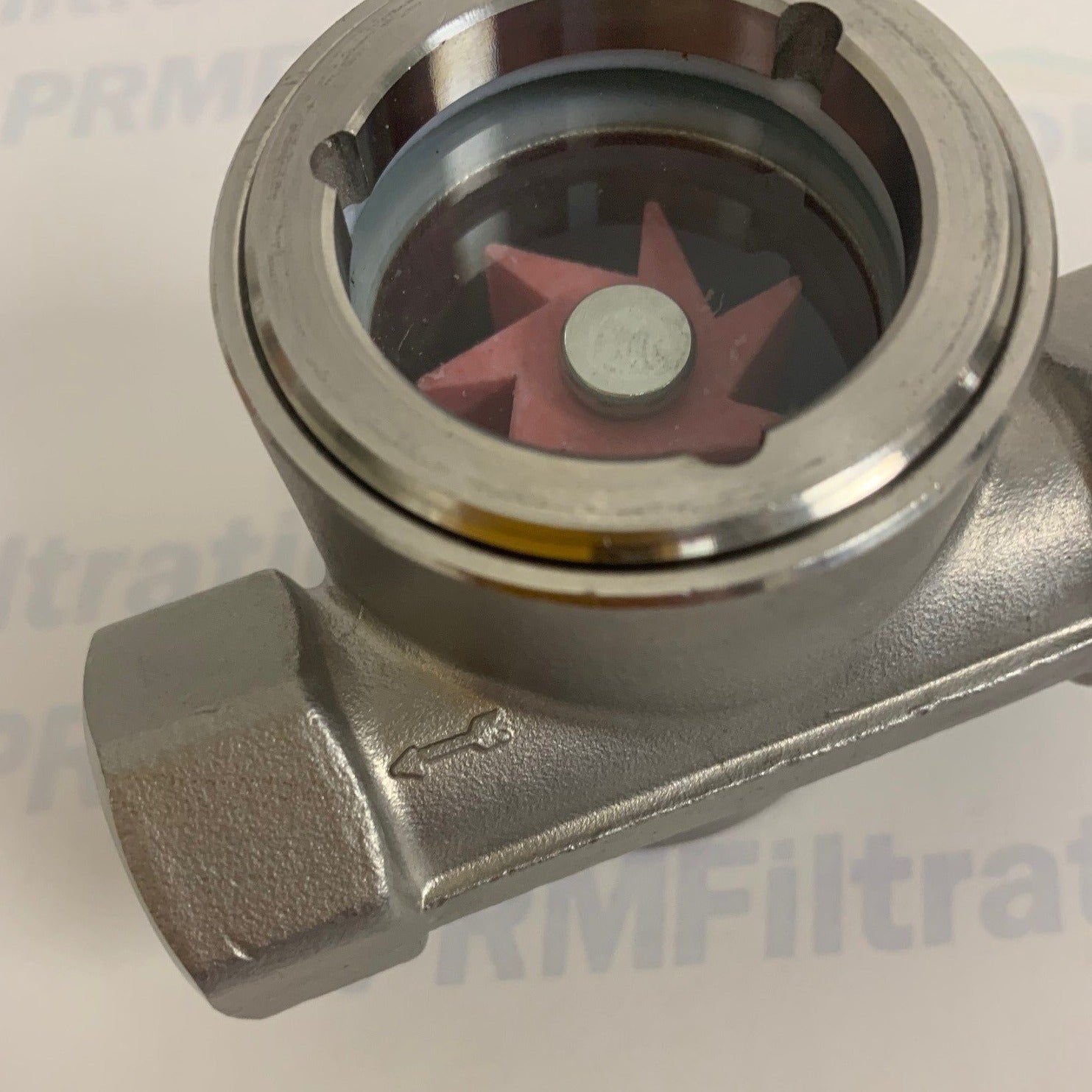

For use with liquids. Directional arrow on the unit specifies direction of flow and should be installed accordingly.
Spec Sheet316 Stainless Steel Available
