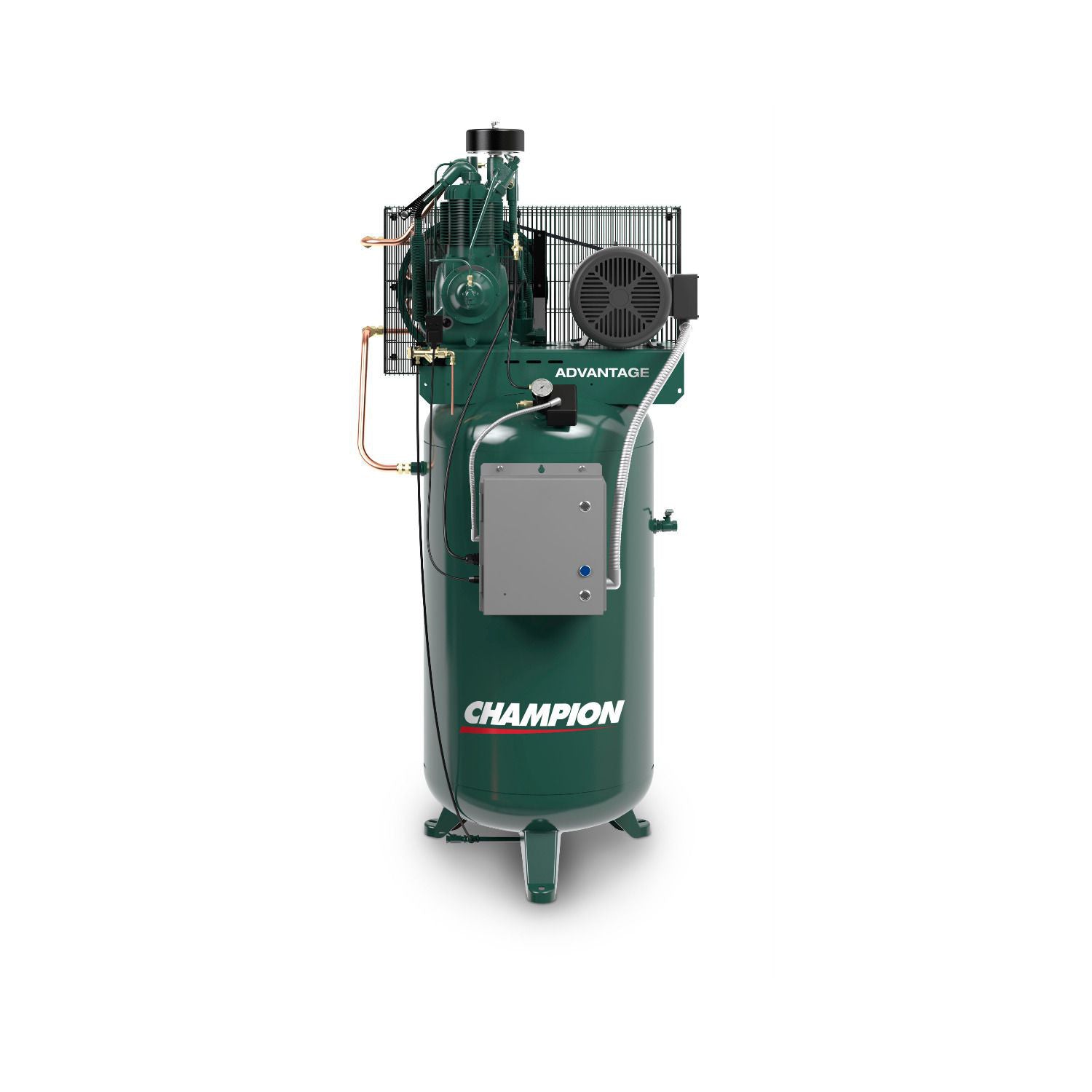

Champion Advantage 5 HP Piston-Two-Stage Air Compressor 17 CFM @ 175 PSI, 80 Gallon Air Tank
The Advantage Series units come fully packaged with pre-installed accessories. They are highlighted by our quick-ship program so the compressor arrives quickly, ready to install and operate. Each new assembled unit has a 3-year warranty on the compressor pump.
Advantage Standard Features:
- Mounted Nema 1 Control Panel
- Vibration Isolators
- 1800 RPM Motor
- Low Oil Stop Control
- ASME Coded Receiver
- Electric Auto Tank Drain
- Loadless Starting
- Enclosed Belt Guard
- Intake Filter
- Start/Stop Pressure Switch Control
- Capacity: 17 CFM @ 175 PSI
- Controls: Start/Stop Operation
- Horsepower: 5 HP
- Max Pressure: 175 PSI
- Number of Cylinders: 2
- Pump Drive: Belt
- Pump Model: R-15
- Pump RPM: 737
- Pump Type: Splash Lubricated
- California Compliant
**PLEASE CONFIRM CORRECT VOLTAGE/PHASE WHEN ORDERING**
208/3/60 Standard Voltage, 28 Full Load Running Amps
- 35" x 27" x 75" (L x W x H)
- Weight: 590 lbs.
- Air Tank Configuration: Vertical
- 80 Gallon Air Tank Size
- ASME Coded
